SolaX Power X1 Series User Manual

No direct sunlight
No rain exposure
No snow lay up

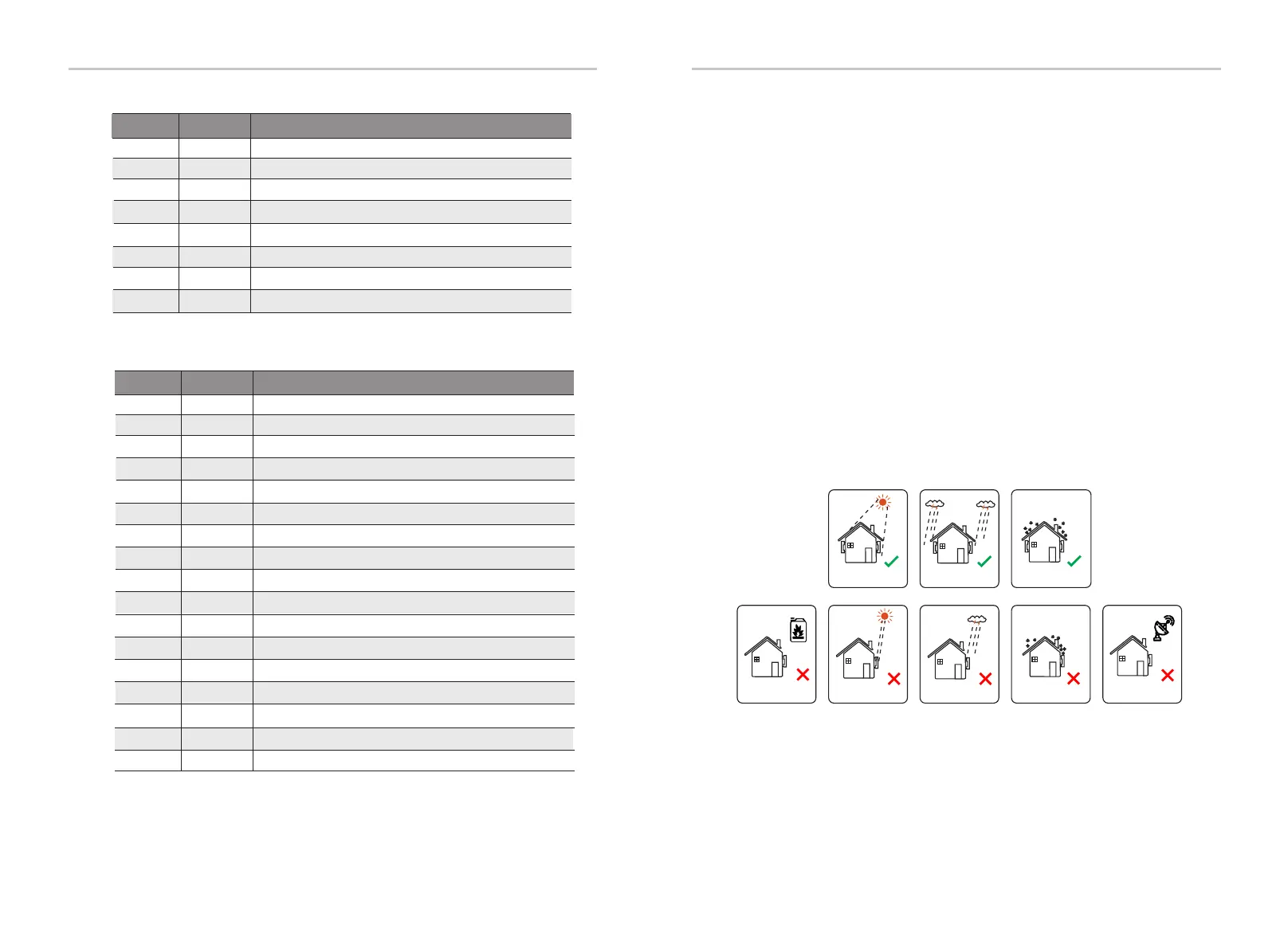

5.3 Installation Precautions
InstallationInstallation
26
27
Stay away from
antenna cables
Snow Lay up
Rain Exposure
Direct Sunlight
Stay away from
combustibles
The protection level of this inverter is IP 65, so that the inverter can be
installed outdoors.
Check the installation environment and pay attention to the following
conditions when installing:
• Do not expose to strong light.
• Do not touch flammable building materials.
• Do not approach flammable and explosive gases or liquids (e.g. where
chemicals are stored).
• Do not touch cold air directly.
• Do not approach TV antenna or cable.
• Do not place in areas above 3000 meters above sea level.
• Do not install in precipitation or high humidity, which may cause
corrosion or damage Internal devices.
• Keep the system out of reach of children.
If the inverter is installed in a narrow area, be sure to reserve appropriate
space for heat dissipation.
The ambient temperature of the installation site is -35 ~60 .°C °C
The maximum angle range of wall tilt ±5°.
Avoid direct sunlight, rain and snow weather.
1
A
B
C
D
E
F
G
H
I
J
K
1
1
4
4/3
3
1
1
Description
L
M
1
2
6 mm European terminal
Number
Quantity
Inverter
Bracket
Waterproof shield
PV terminal (positive*2 , negative*2)
Waterproof connector with RJ45
8 mm European terminal
(Expansion bolt, Gasket, Self-tapping bolt)*3
Battery connection terminal (positive*1, negative*1)
N
/
O
1
OT terminal (inverter grounding)
P
Meter (optional)
Documents
3
WiFi Dongle (optional)
RJ45 terminal adapter
2
M5 inner hexagon bolt
1
RJ45 terminal
★
M series
D series
1
A
B
C
D
E
F
G
H
1
3/2
1
Description
Number
Quantity
Inverter
Bracket
Waterproof connector with RJ45
(Expansion bolt, Gasket, Self-tapping bolt)*3
/
1
3
WiFi Dongle (optional)
1
M5 inner hexagon bolt
Documents
★
Meter (optional)
Note:
“E” marked with “★” indicates that, the M-series inverter is equipped
with 3 pieces for Australia and 2 pieces for other countries, and the D-
series inverter is equipped with 4 pieces for Australia and 3 pieces for
other countries.
*For the optional accessories, please be subject to the actual delivery.
Q
1
CT
1
