5.5.3 Installation Space Requirements
≥300 mm
≥300 mm ≥300 mm
≥300 mm
≥300 mm
≥300 mm
≥1000 mm
≥1000 mm
≥500 mm
≥500 mm
≥300 mm
≥300 mm
5.5 Installation Site Conditions
5.5.1 Installation Carrier Requirements
5.5.2 Installation Requirements
≤5°
30
31
≥300 mm
≥500 mm
≥300 mm≥300 mm
Do not install the inverter near flammable materials.
Please install the inverter on a solid object that can withstand the weight
requirements of the inverter and energy storage system.
Please be careful not to install the inverter in the plasterboard wall or
similar to the residential places with poor sound insulation ,so as not to
work with noise and interfere with the residents life in the morning.

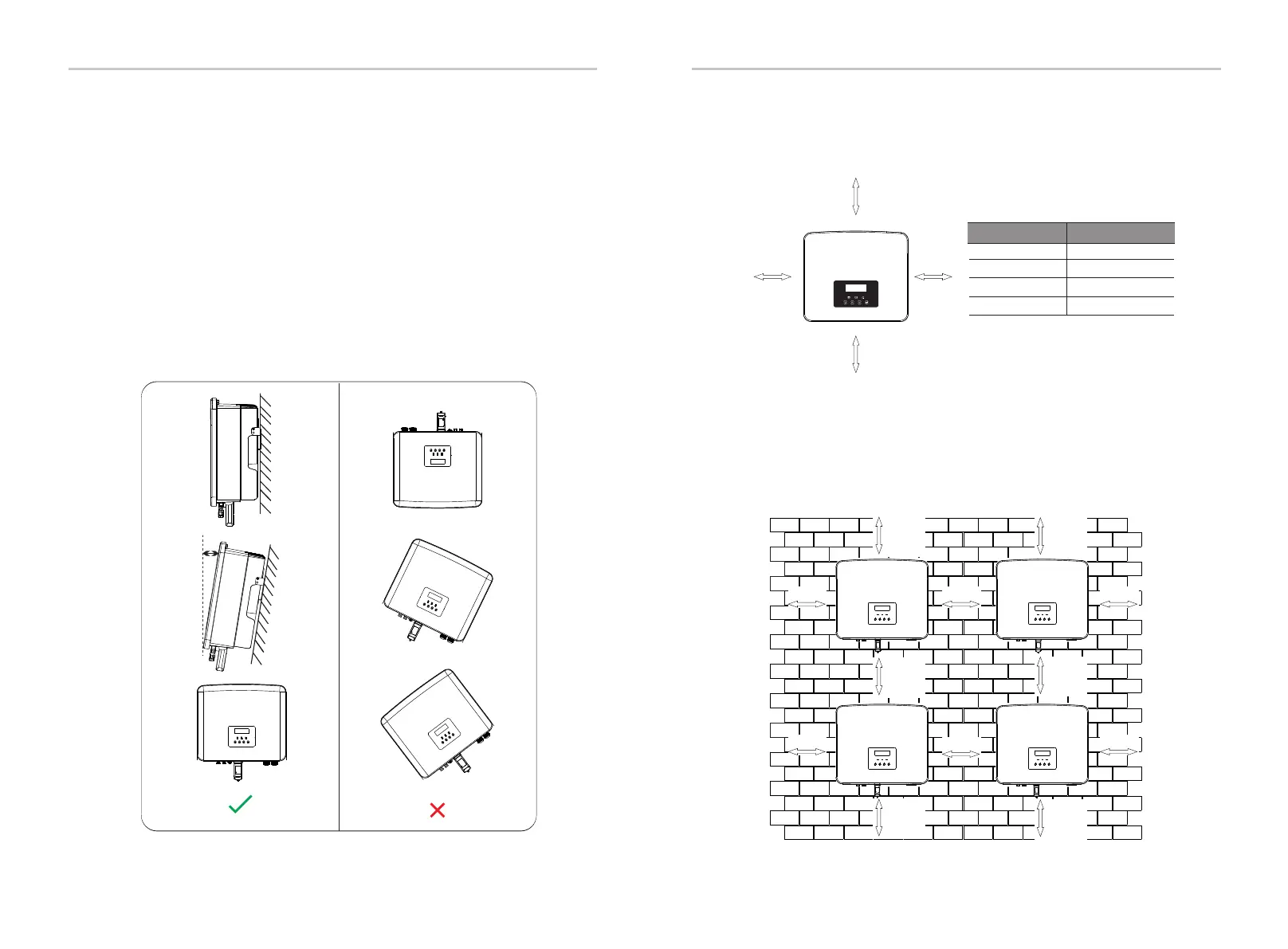

Install the inverter at a maximum back tilt of 5 degrees, the inverter can
not be tilted forward, inverted, excessive back tilted or side tilted.
Reserve enough space when installing inverter (at least 300 mm) for heat
dissipation.
For multi-inverter installation scenarios, the inline installation method is
recommended; when the space is insufficient, the recommended
method of installation in the form of "products"; it is not recommended to
install multiple inverters in stacks. If you choose stack installation, please
refer to the installation separation distance below.
