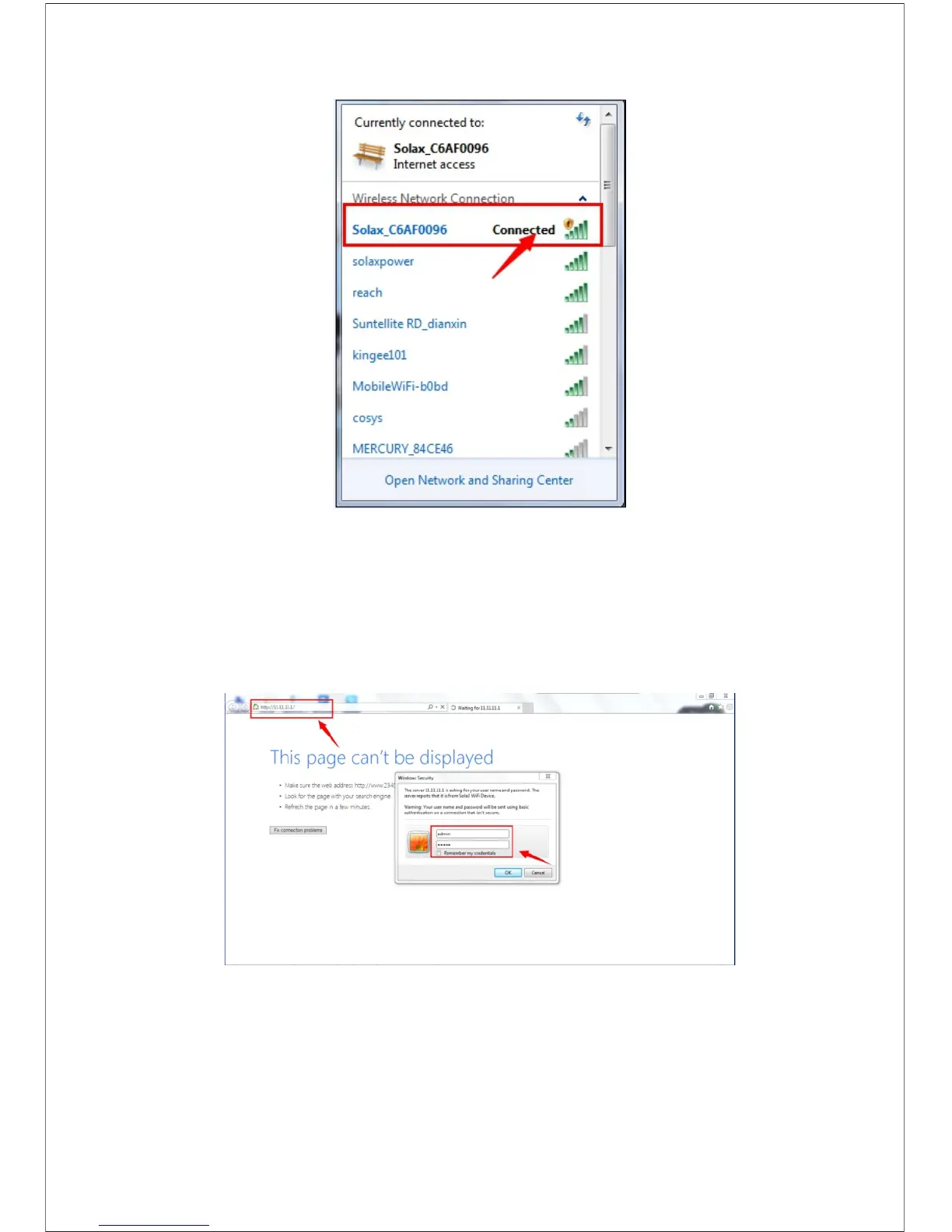

Figure 3, Data Acquisition System Login Interface
Figure 2, Connected with Data Acquisition System
1.2 Set Network Parameters
(1) Input the IP address ‘11.11.11.1’ into the address bar of an internet browser (IE, Firefox or
Chrome) on the device you are currently using to connect to the inverter. When prompted
for a user name and password, enter ‘admin’ in both instances, as shown in Figure3.
(2) Click ‘Yes’ and you will be taken to the basic configuration page as shown in Figure 4. At
this point you should enter the SSID of the home WIFI network to which you need to
connect and enter the password of the home WIFI network as the “key”. Set the security
2
mode as auto. Click “reset” and the setting will take effect.
