5 LCB FITNESS BIKE
ASSEMBLY

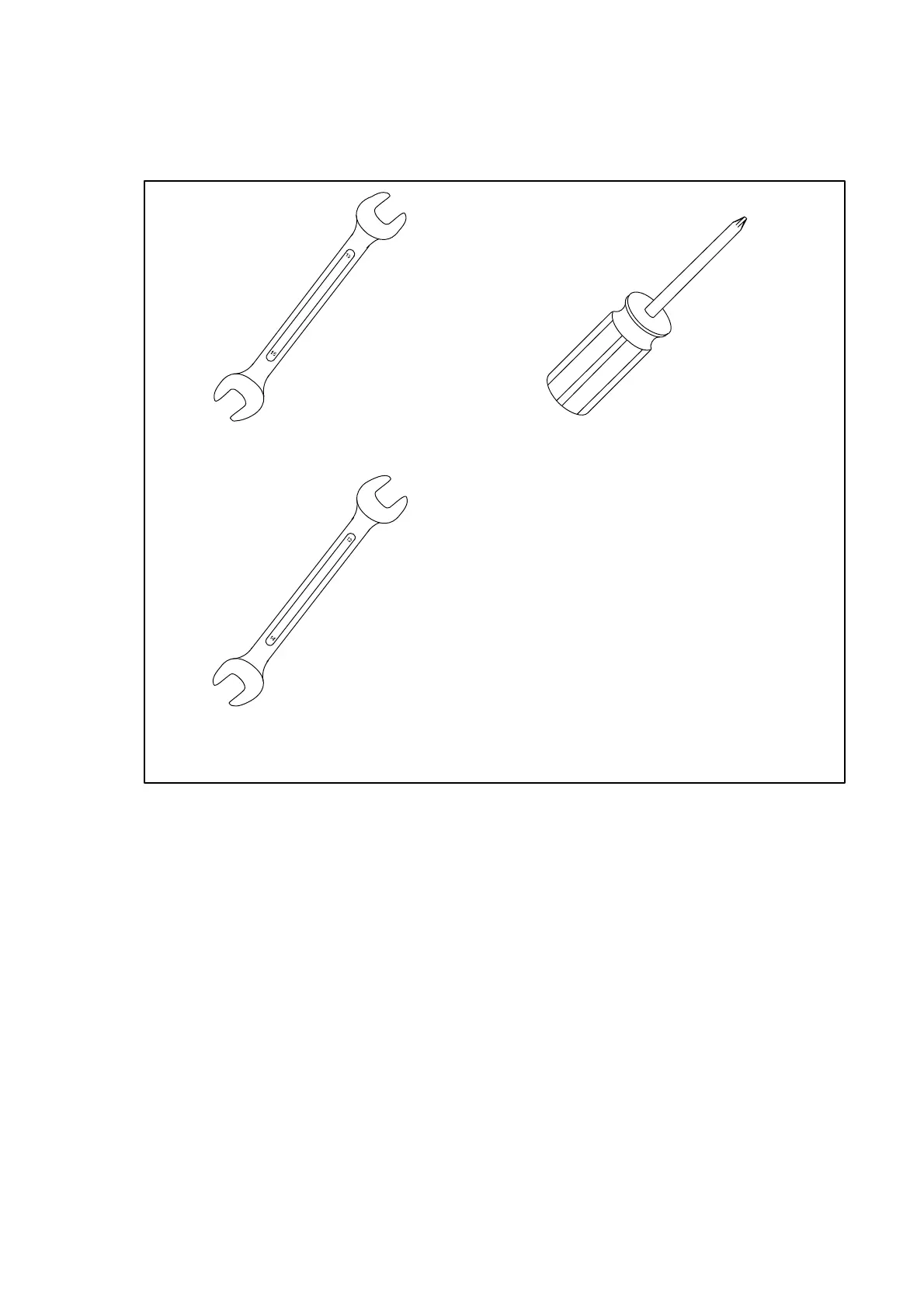

TOOLS
#92. 13/15mm Wrench
#93. Phillips Head Screwdriver
#100. 12/14mm Wrench
LCB
ASSEMBLY
INSTRUCTIONS
PRE
‐ASSEMBLY
1. Using a razor knife (Box Cutter) cut the outside, bottom, edge of box
along the dotted Line. Lift Box over the unit and unpack.
2. Carefully remove all parts from carton and inspect for any damage or
missing parts. If damaged parts are found, or parts are missing,
contact your dealer immediately.
3. Locate the hardware package. Remove the tools first. Remove the
hardware for each step as needed to avoid confusion. The numbers
in the instructions that are in parenthesis (#) are the item number
from the assembly drawing for reference.
