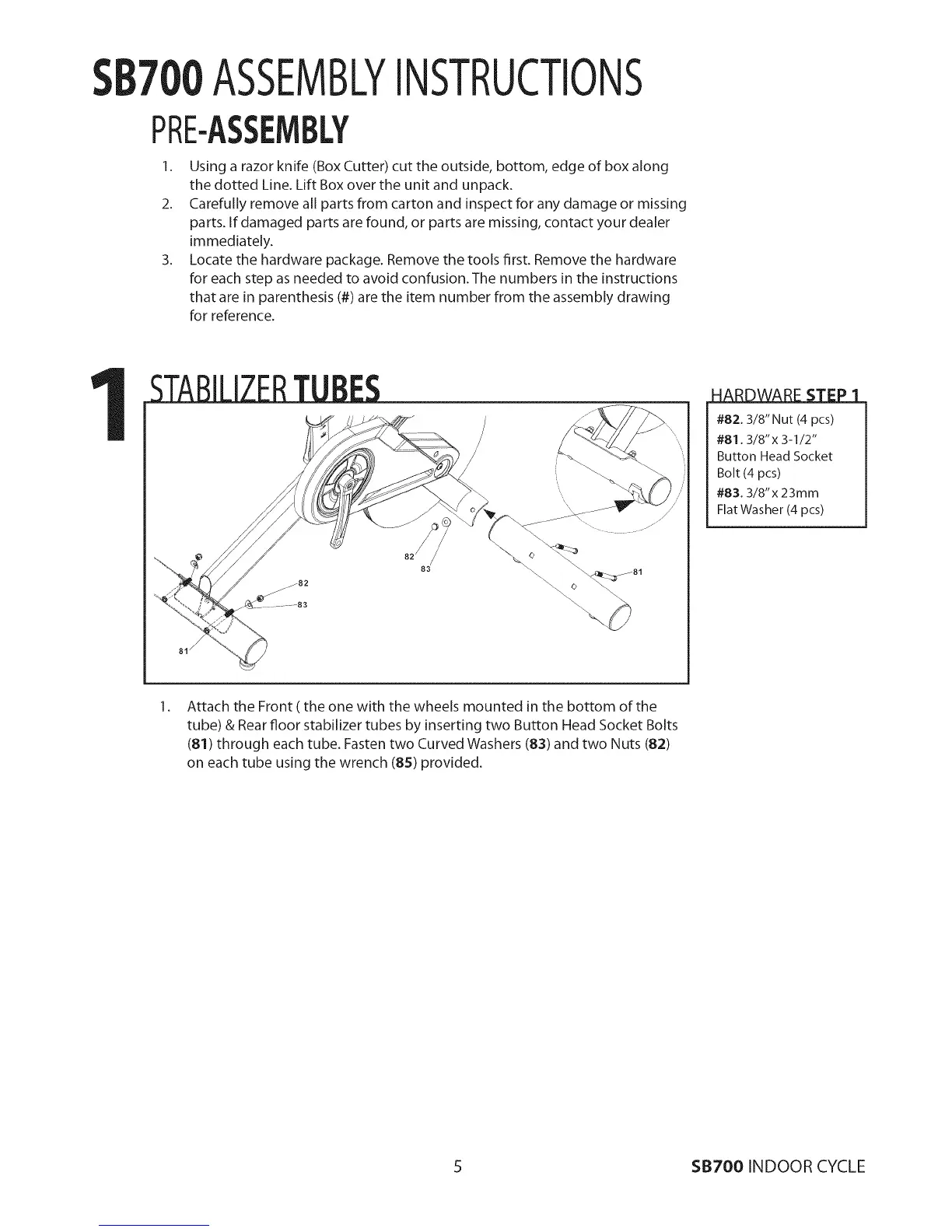

700ASSEMLYINSTRUCTIONS
PRE-ASSEM
1. Using a razor knife (Box Cutter) cut the outside, bottom, edge of box along
the dotted Line. Lift Box over the unit and unpack.
2. Carefully remove all parts from carton and inspect for any damage or missing
parts. If damaged parts are found, or parts are missing, contact your dealer
immediately.
3. Locate the hardware package. Remove the tools first. Remove the hardware
for each step as needed to avoid confusion. The numbers in the instructions
that are in parenthesis (#) are the item number from the assembly drawing
for reference.
83
/ i
#82.3/8" Nut (4 pcs)
#81.3/8"x 3-1/2"
Button Head Socket
Bolt (4 pcs)
#83.3/8"x 23ram
FlatWasher (4 pcs)
1.
Attach the Front ( the one with the wheels mounted in the bottom of the
tube) & Rear floor stabilizer tubes by inserting two Button Head Socket Bolts
(81) through each tube. Fasten two Curved Washers (83) and two Nuts (82)
on each tube using the wrench (85) provided.
5 SB700 INDOOR CYCLE
