SOLE SB700 - Rear Stabilizer Cover Installation; Console Installation

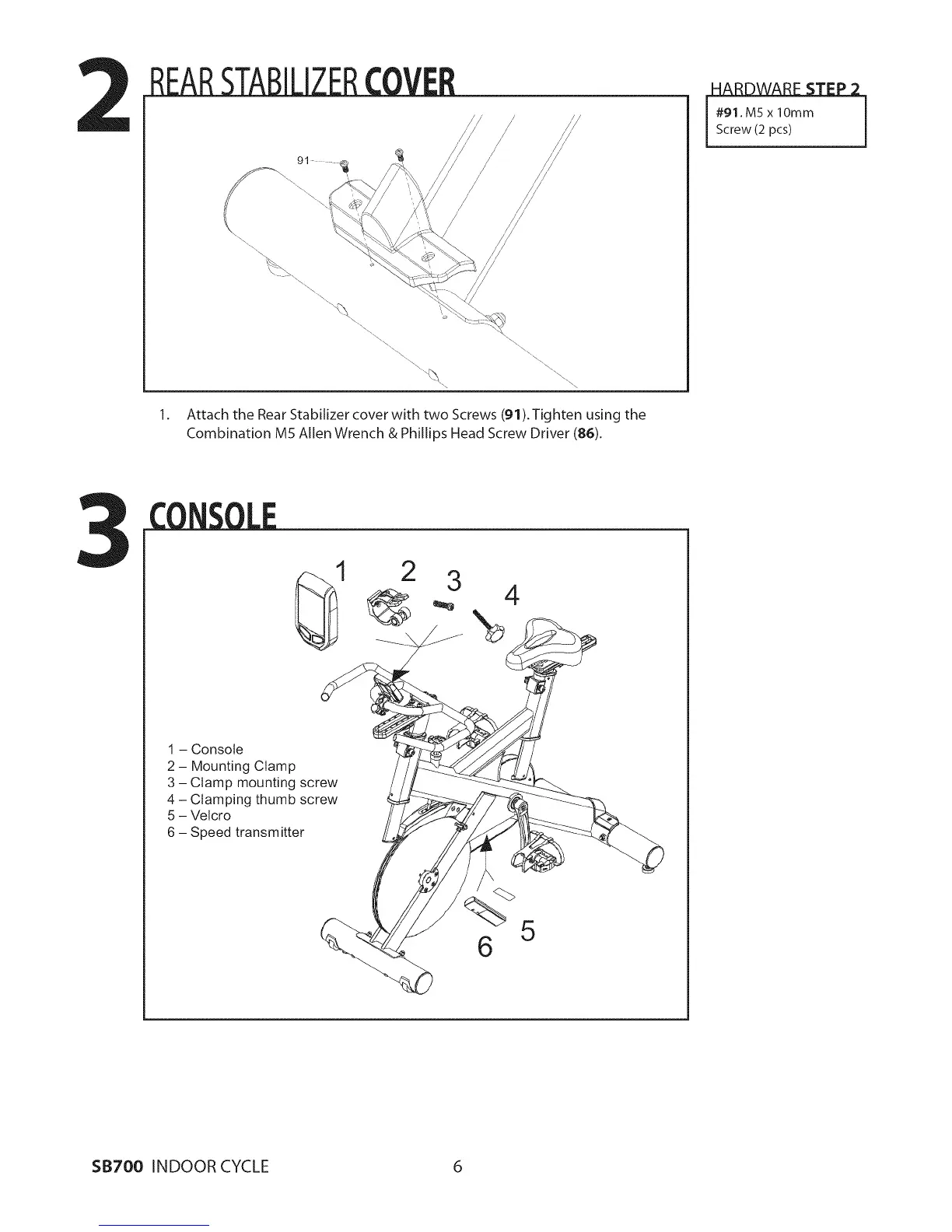

REARSTABILIZERCOVER
// / /
//
/ //
/
/
-.,\
-.,\
-.,\
-.,\
-.,\
-.,\
Attach the Rear Stabilizer cover with two Screws (91).Tighten using the
Combination M5 Allen Wrench & Phillips Head Screw Driver (86).
| i
#91.M5 x lOmm
Screw (2 pcs)
1 2 3
4
1 - Console
2 - Mounting Clamp
3 - Clamp mounting screw
4 - Clamping thumb screw
5 - Velcro
6 - Speed transmitter
5
6
SBTO0 INDOOR CYCLE 6
