Solid State Cooling Systems ThermoCube - Page 10

THERMOCUBE PAO CHILLER PART # 52-400-2G-1-PAO
SOLID STATE COOLING SYSTEMS, 167 MYERS CORNERS ROAD, WAPPINGERS FALLS, NY 12590 8
TELEPHONE: (845) 296-1300 FAX: (845) 296-1303 WEB: WWW.SSCOOLING.COM VERSION M9

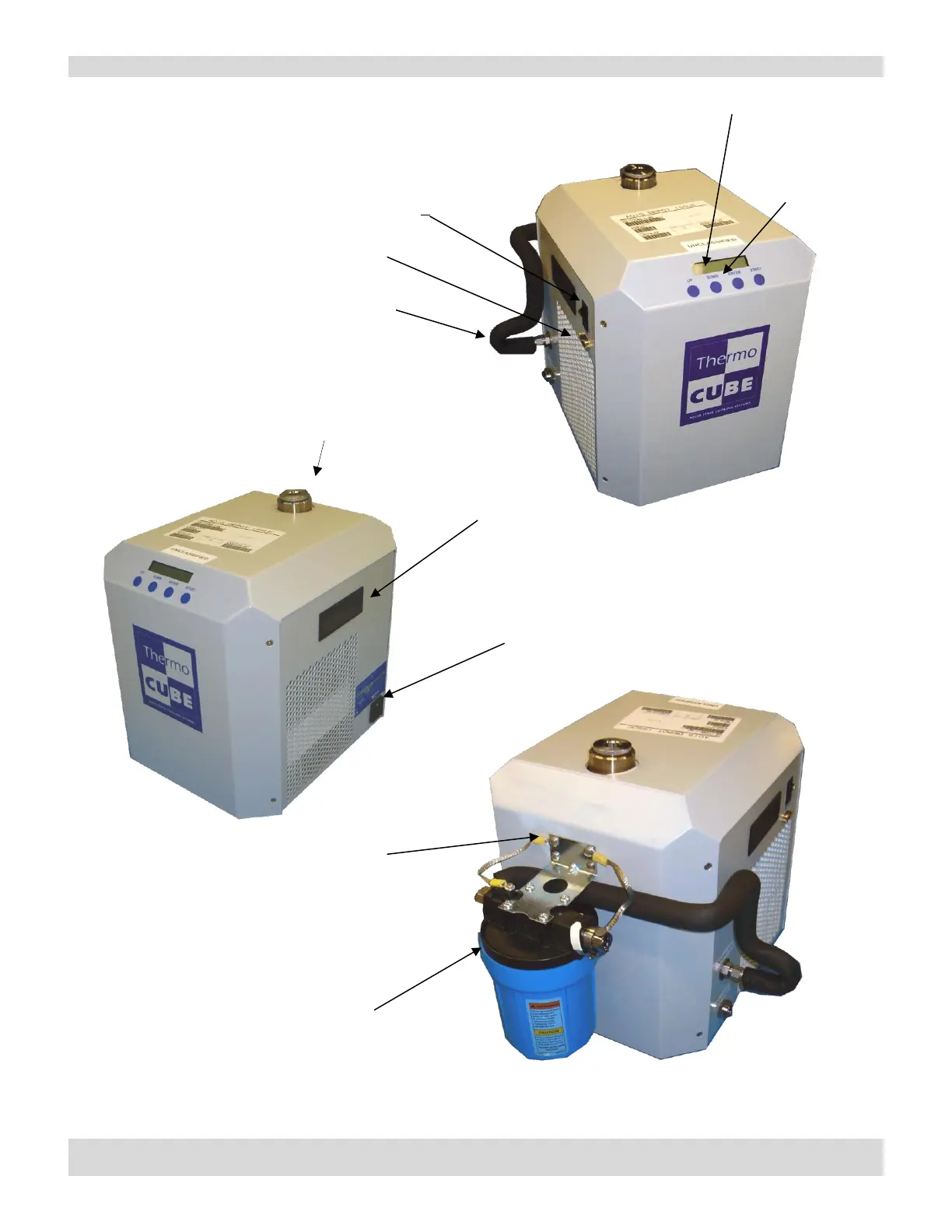

Figure 3A
Figure 3B
Figure 3C
Process Fluid Supply
(¼" CPC metal shut off fitting)
On/Off Switch
Signal Connector
9-Pin D-sub
Fill Cap
Display Screen
Controller Input Buttons
Handle
Power Inlet Module
IEC 320 power inlet module with 5X20 fuse
Optional 5-micron particle filter
Fasten the filter-mounting bracket
via the four screws located here
