In normal operation, LCD screen alternatively shows inverter power and operation status
(see Figure 6.1). The screen can be scrolled manually by pressing the UP/DOWN keys.
Pressing the ENTER key gives access to Main Menu.
5 sec
Start
Power 110000W
01-01-2019 12:04
Status: Generating
01-01-2019 12:04
Information
Settings
Advanced Info.
Advanced settings
UP/DOWN
UP/DOWN
UP/DOWN
UP/DOWN or
auto-scroll
(10 sec)
Pressing the
ENTER key
gives access to
the main menu.
Pressing the
ESC key
calls back the
previous menu.
Main Menu

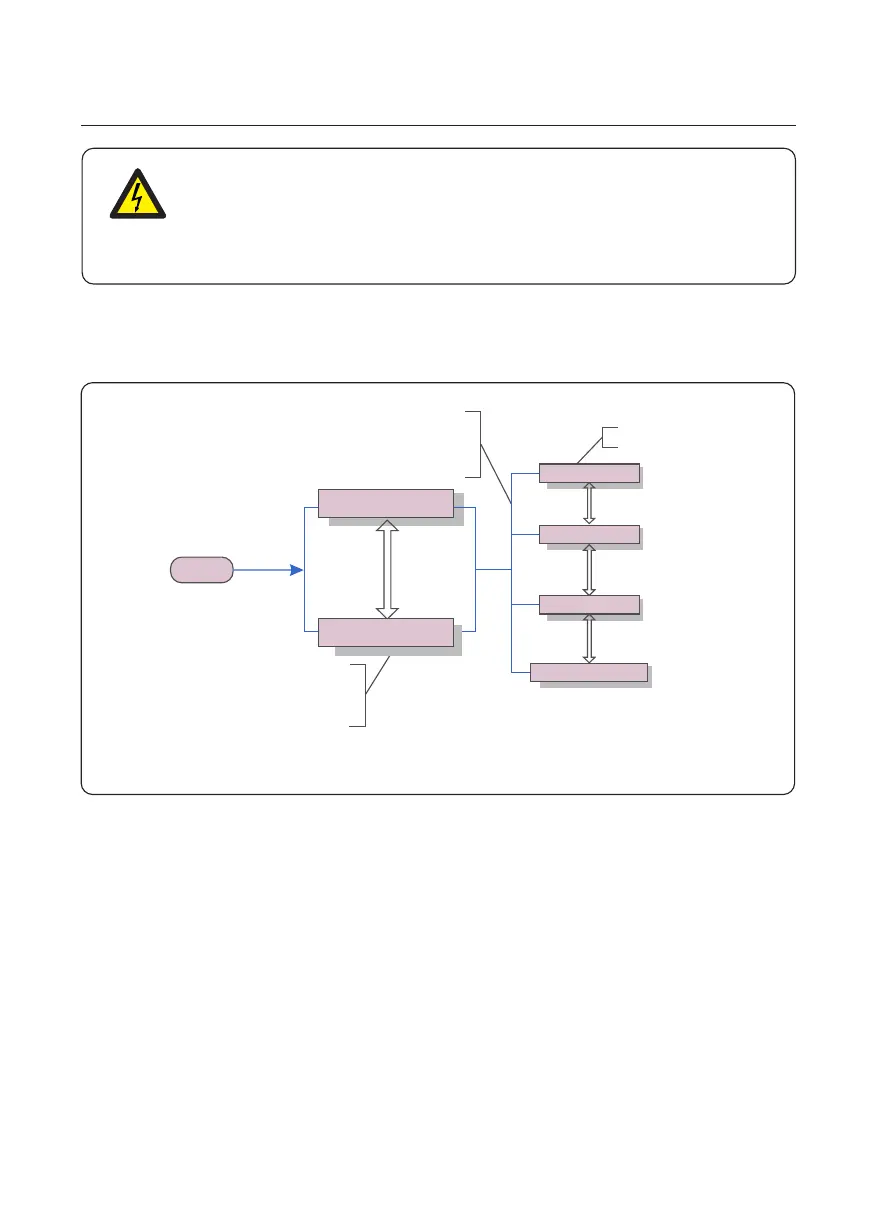

Figure 6.1 Operation Overview
6.3 Main Menu
There are four submenus in the Main Menu (see Figure 6.1):
1. Information
2. Settings
3. Advanced Info.
4. Advanced Settings
The Solis three Phase Inverter main menu provides access to operational
data and information. The information is displayed by selecting "Information" from the
menu and then by scrolling up or down.
6.4 Information
6. Normal operation
36
CAUTION
Although the inverter DC disconnect switch is in the OFF position and all
the LED's are OFF, operators must wait five (5) minutes after the DC power
source has been disconnected before opening the inverter cabinet. DC
side capacitors can take up to five (5) minutes to dissipate all stored energy.

SOLIS S6-EH3P5K-H Specifications

General

Model	S6-EH3P5K-H
Type	Hybrid Inverter
Max. Input Voltage	600 V
Number of MPPTs	2
AC Voltage Range	180-280V
THDi	<3%
Nominal Grid Frequency	50/60Hz
MPPT Efficiency	99.9%
DC Switch	Yes
Protection Degree	IP65
Protection Class	I
Operating Temperature Range	-25°C to +60°C
Cooling Method	Natural Convection
Rated Power	5000 W
Max. DC Input Power	7500 W
Rated AC Output Power	5000 W
Max. AC Apparent Power	5500 VA
Nominal AC Voltage	230 V
Power Factor	0.8 leading to 0.8 lagging
Grid Frequency Range	45 Hz - 55 Hz / 55 Hz - 65 Hz
Communication	RS485
