3. Standard delivery
• Power tool partially assembled; the following components are supplied separately and require assembly
• Handle subject to model and all parts required to complete the assembly
• Shield
• Cutting tool: (model-specific)
• Tools: combination spanner, retaining pin and screw driver
• Instruction manual, the EC declaration of conformity on a separate piece of paper
•
Model 107L, 107B: all assembly components required for assembling the permitted cutting tools
(accessories),
Shoulder strap
4. Control and function elements
Mod. 104L
Mod. 107B
1 Stop-switch 7 Choke lever 14 Spark plug cap
2 Throttle lever 8 Primer 15 Cutter
3 Gas lever lock 9 Fuel cap 16 Shield
4 Throttle lock 10 Starter grip 18* Protective bar
5* Bicycle handlebar 11 Air filter cover 21 Type plate
6* Loop handle 12* Strap track
*
Depending on the version

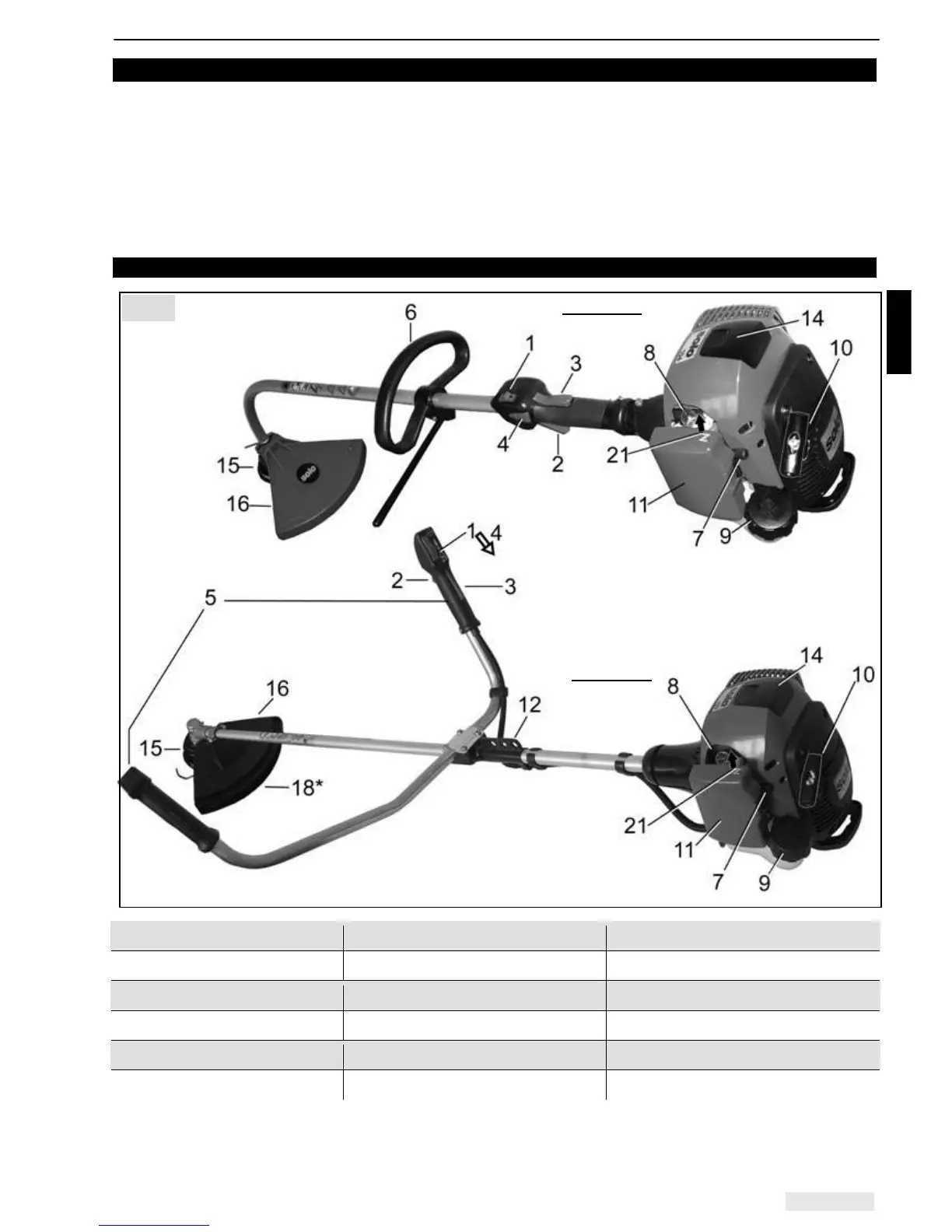

Fig. 1
