Preparing the equipment for use
ENGLISH 8
5. Preparing the equipment for use
For shipping purposes, the power tool is partly disassembled and has to be reassembled prior to use.
Only use the power tool after it has been fully assembled.
Ensure that the tank is fully drained before any assembly, disassembly or modification.
Model 104L

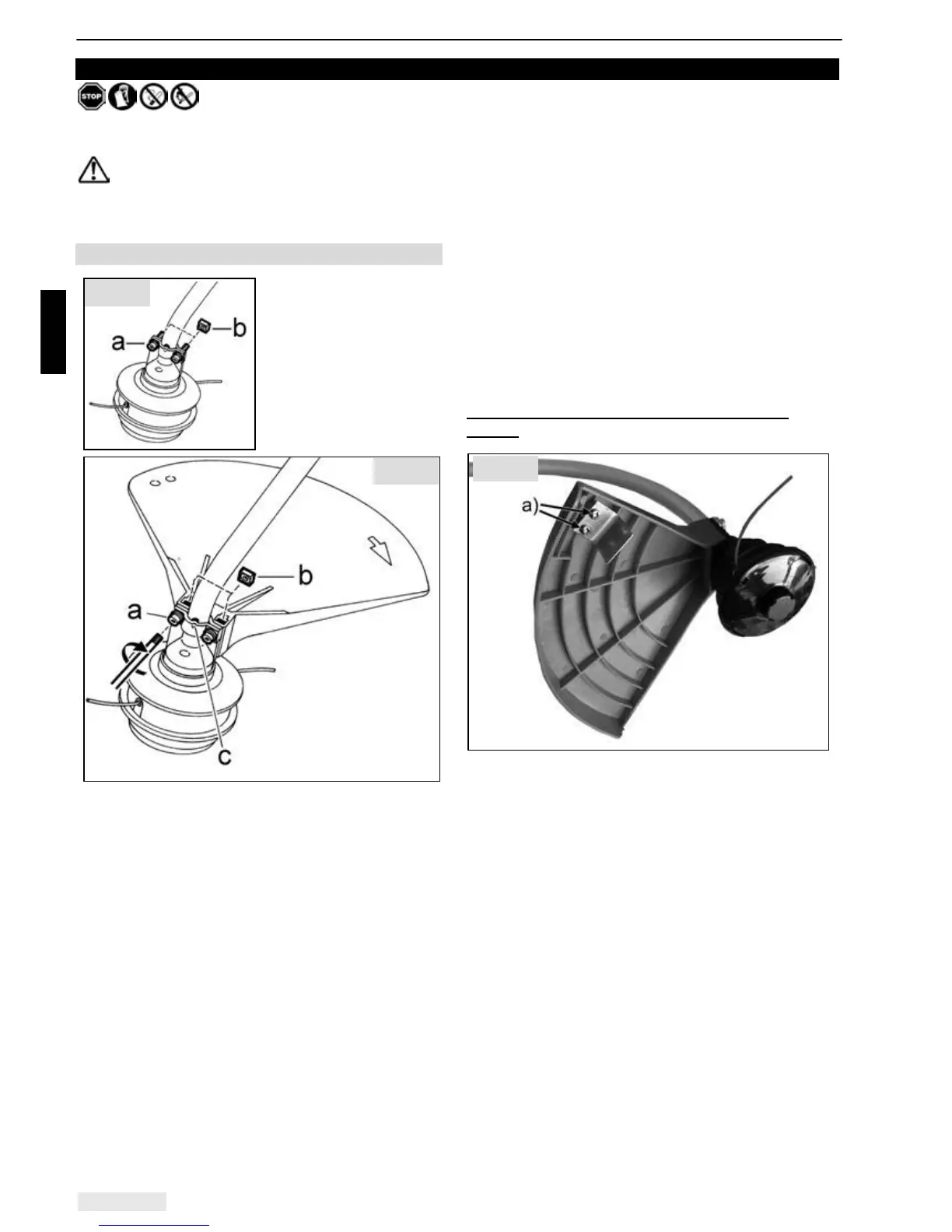

5.1 Shield installation - model 104L
In the pre-assembled
condition, undo both
screws (a) and square
nuts (b).
Leave the remaining
components in their pre-
assembled state.
• Insert square nuts (b) from above on both sides
of the shield.
• Position the shield on the shaft tube so it is
pointing towards the engine.
• Insert fixing screws (a) and tighten evenly.
• Important: The relevant clamp tab (c) must be
fixed in the holes provided on either side of the
shaft tube.
Correct position of the line trimmer on the
shield:
a) The line trimmer must be secured tightly to the
shield using two screws, as shown in the diagram.
Fig. 2a
Fig. 2b
Fig. 2c
