Cross Ethernet Cable Making Tip
I. LAN Plug
Pin: 1 ~ 8
II. LAN Cable
PART-A PART-B

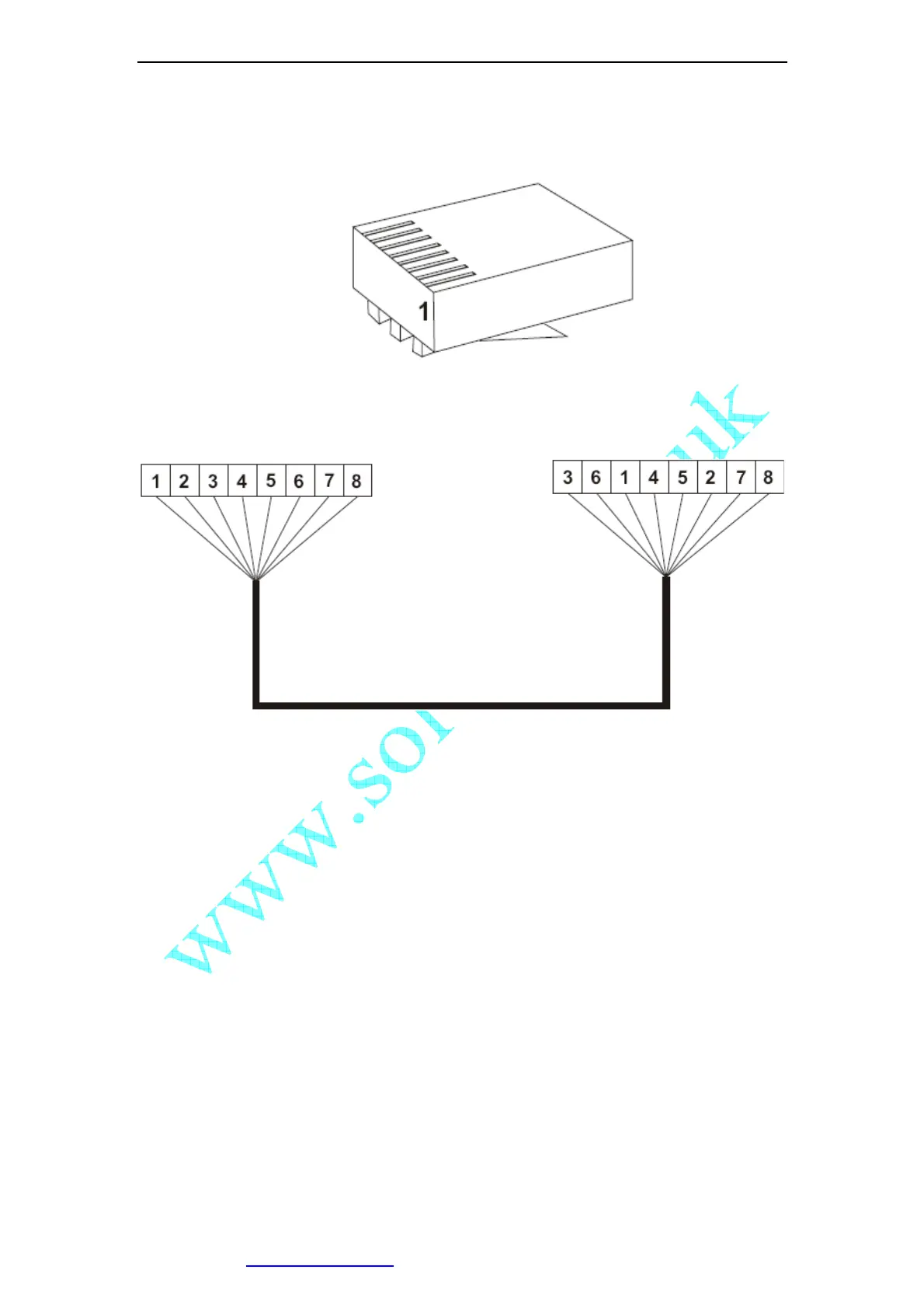

III. Connection Method
a. Connect LAN Cable Part-A and LAN plug by order as one to one .
b. Connect to LAN cable Part-B & Part-A, Replace order No.1 & 3, No.2 & 6.
c. Connect LAN cable Part-B No. 3 to LAN plug No. 1 and connect the next
by order.
