21
191
133.5
16
12.7
3
4
1
5
2

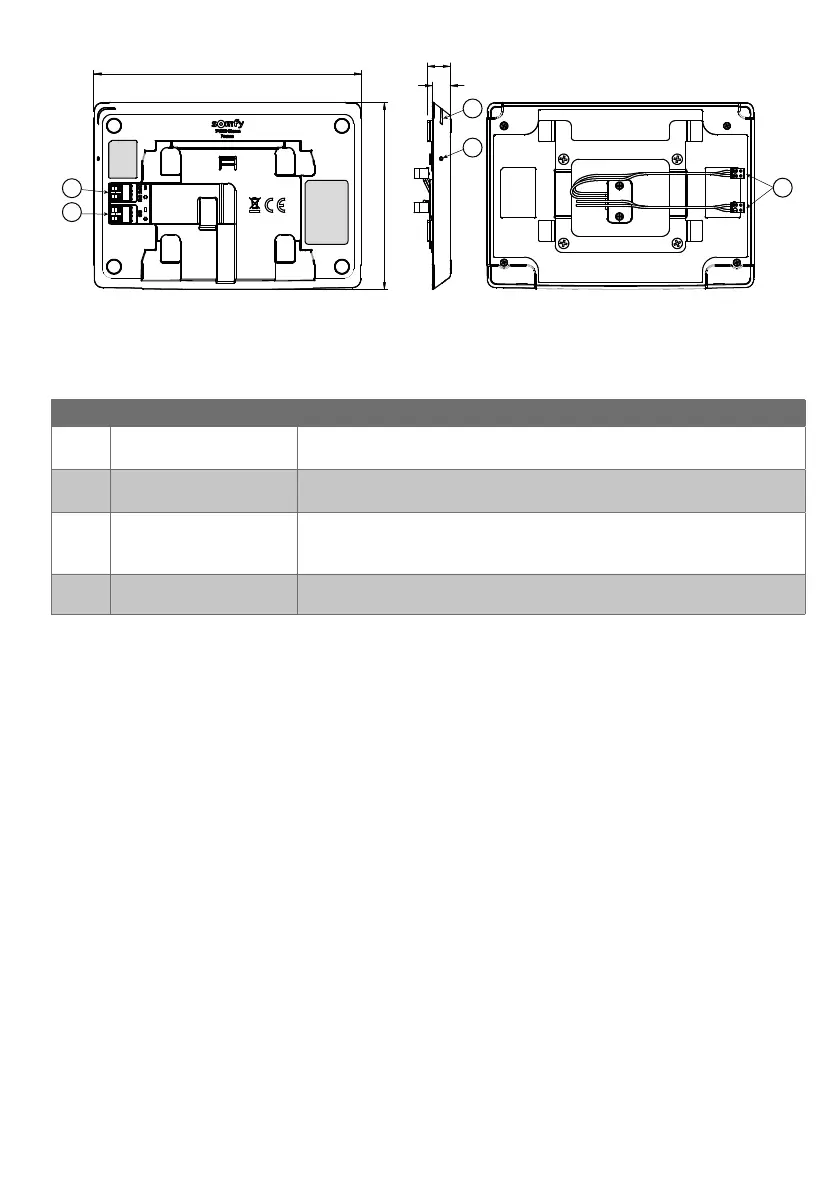

No. Designation Description
1 and 2 Terminal blocks 1 - 24V DC: connection to the power supply (mains adapter, or DIN rail).
2 - CS: connection to the call station.
3 Operating LED Indicates the operating status of the connected video door phone.
See the “Somfy Protect” app for more information on this topic.
4 Reset button With the reset pin supplied, this is used to restart the connected video door phone or
to reset it if the Wi-Fi network is changed.
More information at the end of the guide.
5 Connection cables Power supply cables (red and black) and call station cables (green and yellow) to be
connected on the back of the indoor monitor.
CONNECTIVITY MODULE SPECIFICATIONS
- Operating temperature: -10°C to +45°C
- Power supply type: 24V-1A
- Polarity inversion protection: no
- Dimensions (WxHxD): 191 x 133.5 x 12.7 mm
- Weight: 267 g
- Connectivity: compatible with a Wi-Fi router equipped with Internet access (any Wi-Fi hub except public Wi-Fi).
Wi-Fi 802.11 b/g/n Open, WPA, WPA2-Personal, WPA-WPA2 mixed mode (2.4 GHz, e.r.p<100 mW) | Proprietary protocol
(2.4 GHz, e.r.p<100 mW). 5 GHz Wi-Fi incompatible.
- Number of compatible monitors: 1 (maximum)
