SOMFY J4 HTM - Assembly for 67 x66 mm Head Rails; Assembly in 67 x66 mm Head Rails (Bottom)

17
© 2011 Somfy SAS. All rights reserved. 09/2011
EN
)LWWKHDGDSWRUVXVLQJ0[VFUHZV
on the motor shaft.
)Tightening torque = 1.1 N.m
Connect the power supply cable (3) to the
motor.
Ensure that the cable does not hinder
the rotating part of the motor or the
Venetian mechanism.

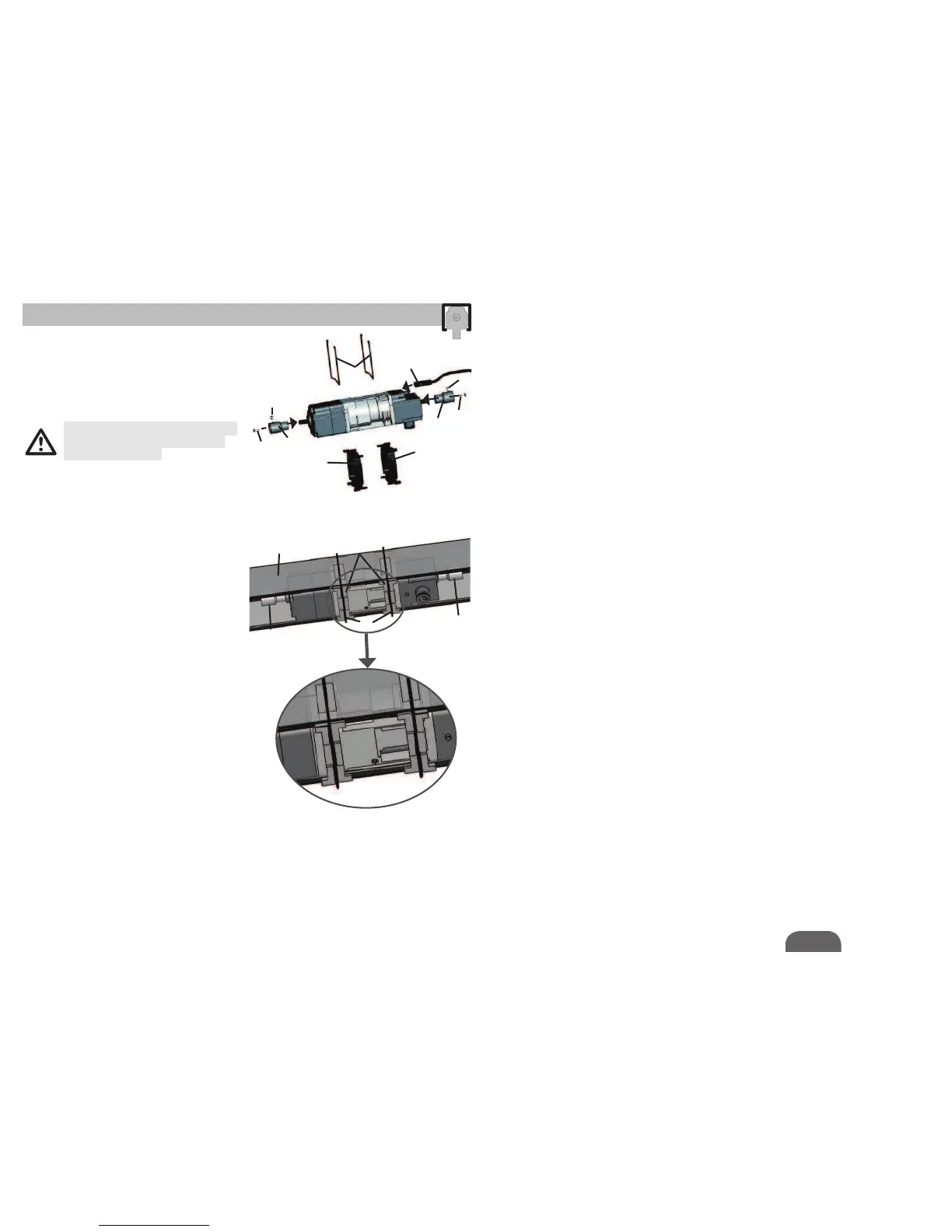

Fit the two head rail adaptors (8) on the motor.
Insert the motor in the head rail (4).
Using the clips (5), fix the motor in the head
rail (4).
;PPKHDGUDLORSHQDWWKHERWWRP
5
8
7
7
4
1
2
1
2
8
8
5
7
7
3
