SOMFY LT50 - Functioning Principal; How the System Works

Motorisation of Window Coverings
using Somfy Motors

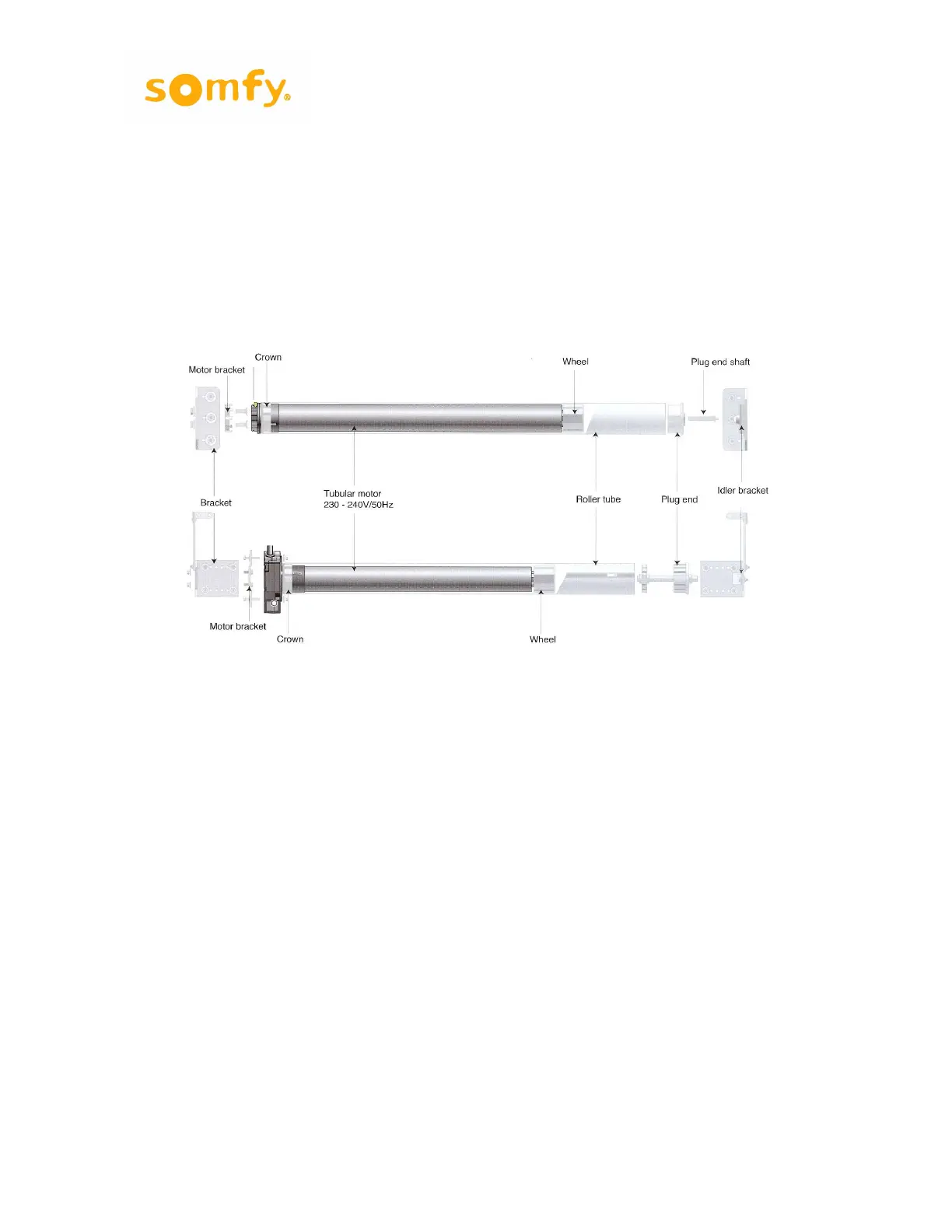

Functioning Principal
• The motor drives the wheel
•
The wheel drives the roller tube
• The roller tube drives the crown
•
The crown drives the limit switch within the motor
ATTENTION
Somfy Motors are not waterproof
Do not hose down with water.
All motors mounted externally require covering!
