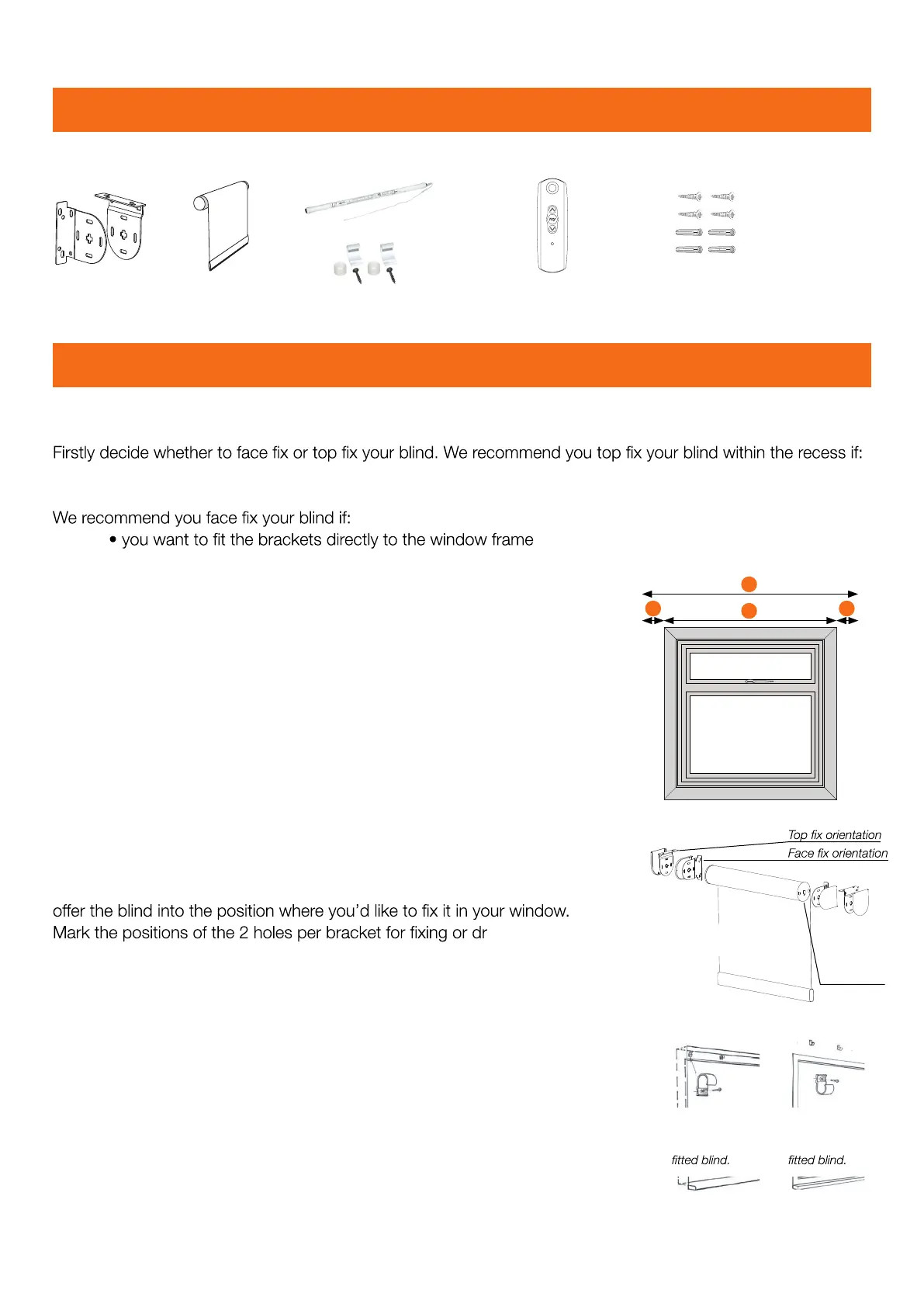

INSTALLING & SETTING UP YOUR POWERED ROLLER BLIND
Before installing your powered roller blind, check you have the following:
2 x Universal
Brackets
FITTING YOUR POWERED ROLLER BLIND
1 x Powered
Roller Blind
4 x screws
4 x raw plugs
STEP 1
Fitting your blind inside the window recess
• you have uPVC window frames
• there are obstructions like handles
Fitting your blind outside the window recess
Follow the measurement steps below to ensure that centre of
your powered roller blind is exactly in the middle of your window:
The measurements at either end of the recess (C) need to be
the same. To work out C:
1) Measure the width of the window (measurement B).
Write down the measurement.
2) Measure the width of the blind (measurement A).
Write down the measurement.
3) Take measurement B away from measurement A and
divide the answer by 2 to get measurement C.
STEP 2
Marking the bracket positions
Put the blind into the corresponding ends of the brackets as illustrated, then
illing.
Important note: Ensure that the plunger at the pin end (opposite the motor end) is
fully depressed when marking the hole positions. Also leave enough room to mount
the battery pack if you plan to secure it behind the blind.
STEP 3
Fitting the battery pack clips
Now that the bracket positions are marked, you can secure the battery pack
clips in place at the same side as the motor position.
For inside recess blind mounting, secure the clips in place behind where the
blind will be situated (as illustrated).
For outside recess blind mounting, secure the clips in place behind and above
where the blind will be situated (as illustrated).
A
B
CC
1 x Battery Pack
2 x Battery Clips
Battery clip
mounting on an
inside recess
Battery clip
mounting on an
outside recess
Powered roller
blind system
Motor head
Bracket cover
1 x Remote or Wall
Switch Control
