Sonics H520 - Tip Replacement (CV54); Recommended Torque Requirements

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •
I N S T R U C T I O N M A N U A L • M O D E L H 5 2 0 / H 5 4 0 13
CV54 /HORN / TIP
Thread
Frequency Component Size Foot-Lbs. Newton-Meters
20 kHz Converter / Tip 1/4-28 25-35 34-47
40 kHz Converter / Horn 8 mm 25-35 34-47
40 kHz Horn / Tip 1/4-28 25-35 34-47
RECOMMENDED TORQUE REQUIREMENTS
TIP REPLACEMENT (CV54)
1. Clean the mating surfaces, as well as the threaded stud and hole. Check
that the stud is tight. (See recommended torque requirements below.)

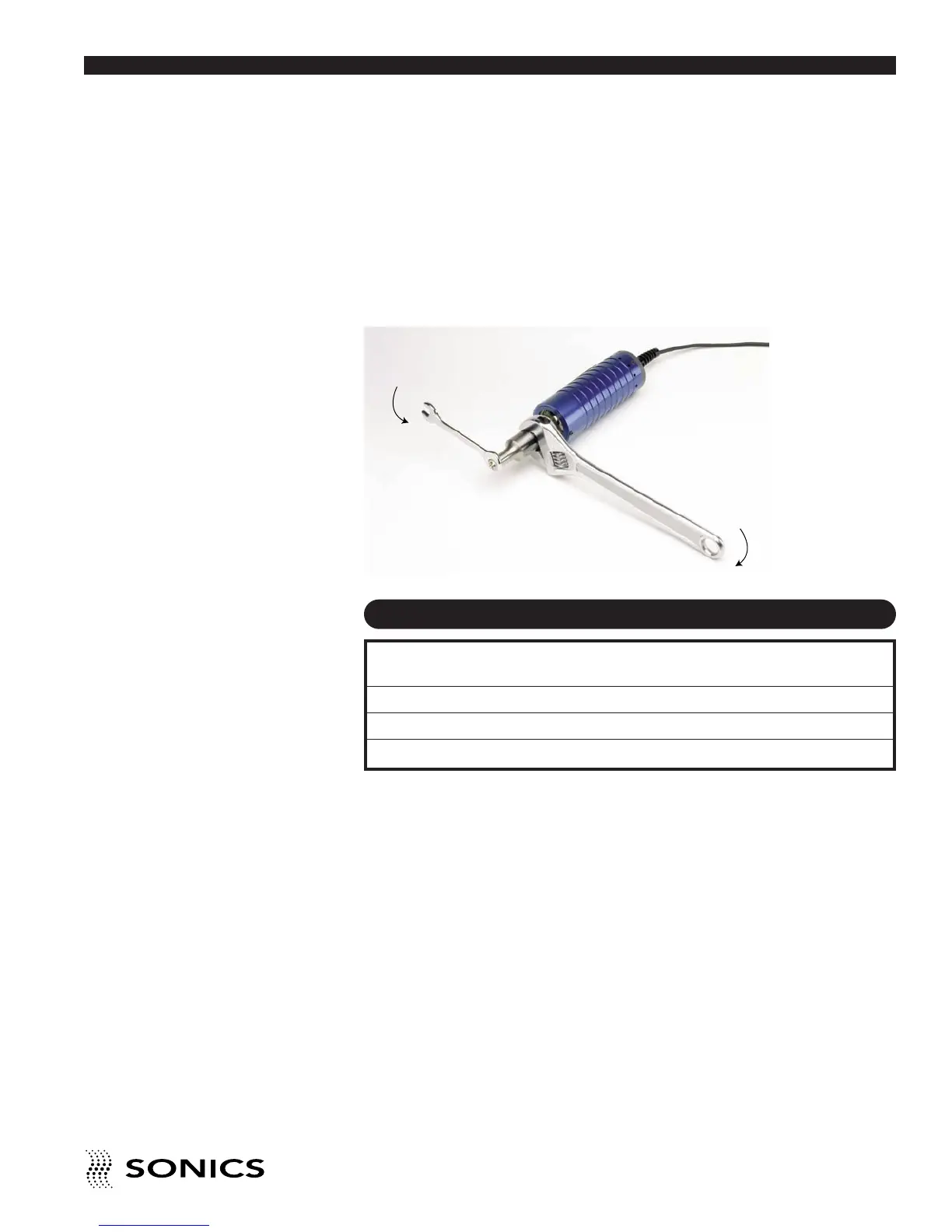

2. Hand assemble the tip to the horn using open-ended wrenches as shown
below and tighten securely. Do not force or overtighten.
