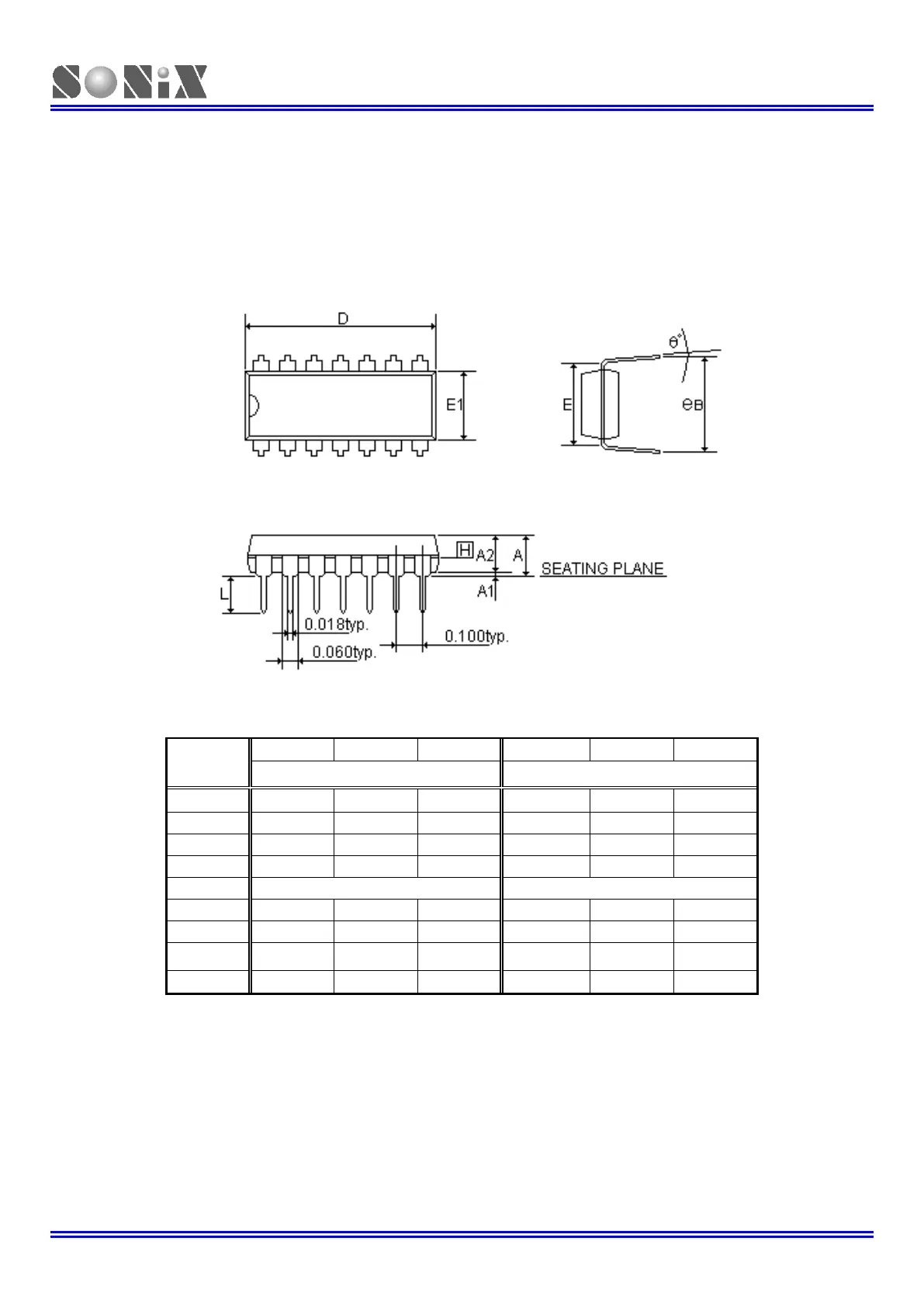

PACKAGE INFORMATION
14.1 P-DIP 14 PIN
SYMBOLS
MIN
NOR
MAX
MIN
NOR
MAX
(inch)
(mm)
A
-
-
0.210
-
-
5.334
A1
0.015
-
-
0.381
-
-
A2
0.125
0.130
0.135
3.175
3.302
3.429
D
0.735
0.075
0.775
18.669
1.905
19.685
E
0.300
7.62
E1
0.245
0.250
0.255
6.223
6.35
6.477
L
0.115
0.130
0.150
2.921
3.302
3.810
ｅ B
0.335
0.355
0.375
8.509
9.017
9.525
θ°
0°
7°
15°
0°
7°
15°
