Working with Images
You can work with the acquired images by using the features provided by the system, such as the split screen
display, panoramic display and annotations.
11.1 Imaging Features
11.1.1 Imaging Reverse
Tap on the touch screen to reverse the real time scan left or right.
Tap on the touch screen to reverse the real time scan up or down.
11.1.2 Split Screen Display
You can position two or four images side by side on the screen to compare the images by using the split screen
display.
■ Dual-Split Screen Display
1. Press the
B
,
CFM
,
M
,
PW
or
CW
key on the control panel to select an imaging mode for a real time scan.
2. Press the
Dual
key on the control panel or tap on the touch screen to enter the dual split Screen display.
The image is duplicated into two parts with a frozen image on the left and a real time scan on the right. The
real time scan in B-mode is taken as an example in the following gure.
0
5
10
15
0
5
10
15
B
FPS 47
D/G 3/1
GN 255
I/P 3/30
PWR 70
FRQ 3-4.8
D 16.5cm
S
S

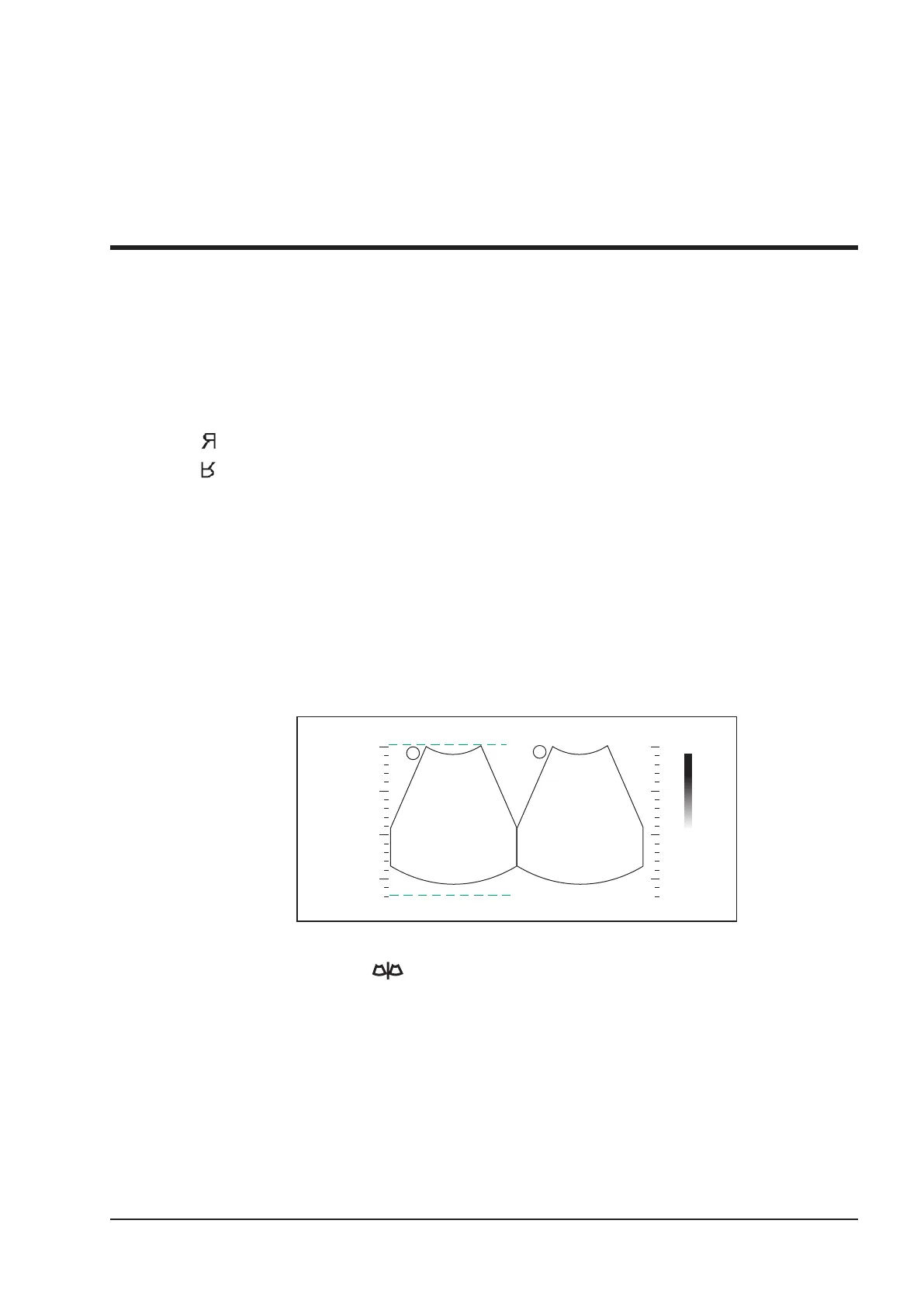

Figure 11-1 Real Time B+Frozen B
−
Press the
Dual
key or tap to freeze the real time scan and unfreeze the other image.
−
Press the
CFM
,
M
,
PW
or
CW
key to select an imaging mode for the real time scan.
−
Tap
Dual Live
to display two real time scans if one of the two images is a color-mode image.
The image is duplicated into two parts with two real time scans.
