6 Acquiring Images
Basic User Manual 71
1. Optimize a B-mode image.
2. Press the
CFM
key on the control panel, and then tap
PDI
on the touch screen to enter the PDI mode.
0
5
10
15
2D Imaging
Color Flow ROI
B
FPS 47
D/G 3/1
GN 255
I/P 3/30
PWR 70
FRQ 3-4.8
D 16.5cm
C
PRF 1.0
WF 86
GN 255
C/P 1/50
PWR 70
FRQ 2.2
S

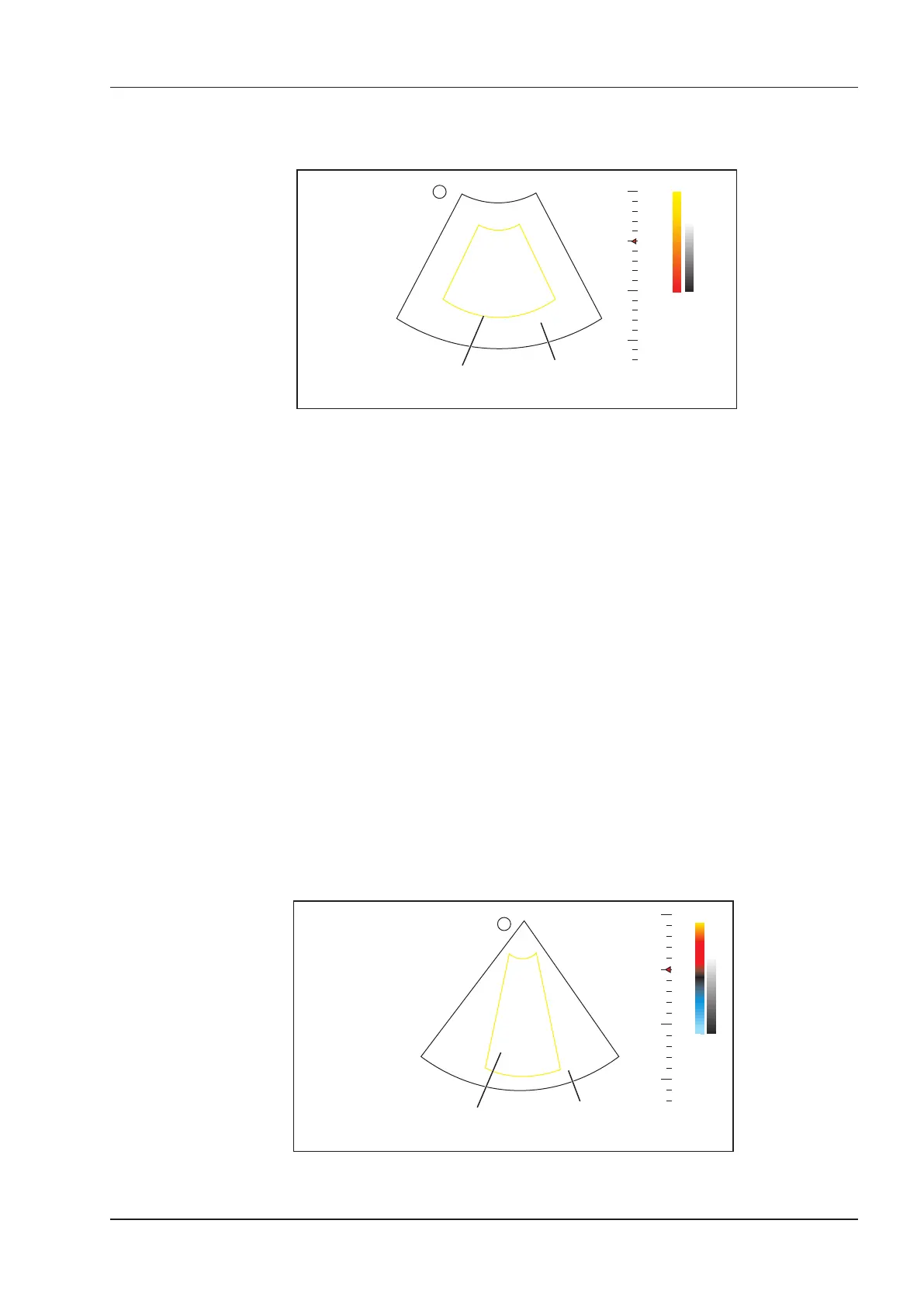

Figure 6-7 PDI-Mode Imaging Screen
3. Adjust color ow ROI.
−
Move the trackball to position color ow ROI.
−
Press the conrm key on the control panel to adjust the size of color ow ROI.
−
Press the conrm key again to reposition color ow ROI.
4. Optimize the PDI-mode image. For details, refer to Section 6.3.4 Optimizing CFM/PDI/TDI Mode Images.
5. Tap
PDI
again to exit the screen.
6.3.3 TDI Mode
NOTE:
TDI imaging is only applied to cardiac applications by using the phased array probes.
TDI (Tissue Doppler Imaging) is a color ow imaging technique which detects the low frequency signal reected
from the cardiac muscle. TDI provides the ow information of velocity and direction for cardiac movement.
TDI uses the low velocity and the high amplitude adjusted from the wall filter to create a color-coded tissue
imaging.
Perform the following steps to acquire TDI-mode images.
1. Optimize a B-mode image.
2. Press the
CFM
key on the control panel, and then tap
TDI
on the touch screen to enter the TDI mode.
0
5
10
15
22
-22
cm/s
2D Imaging
Color Flow ROI
B
FPS 47
D/G 3/1
GN 255
I/P 3/30
PWR 70
FRQ 3-4.8
D 16.5cm
C
PRF 1.0
WF 86
GN 255
C/P 1/50
PWR 70
FRQ 2.2
S
Figure 6-8 TDI-Mode Imaging Screen
