Instruction for Use | HCA 56x and 8x8
7.7 Example of mounting based on the radiator type

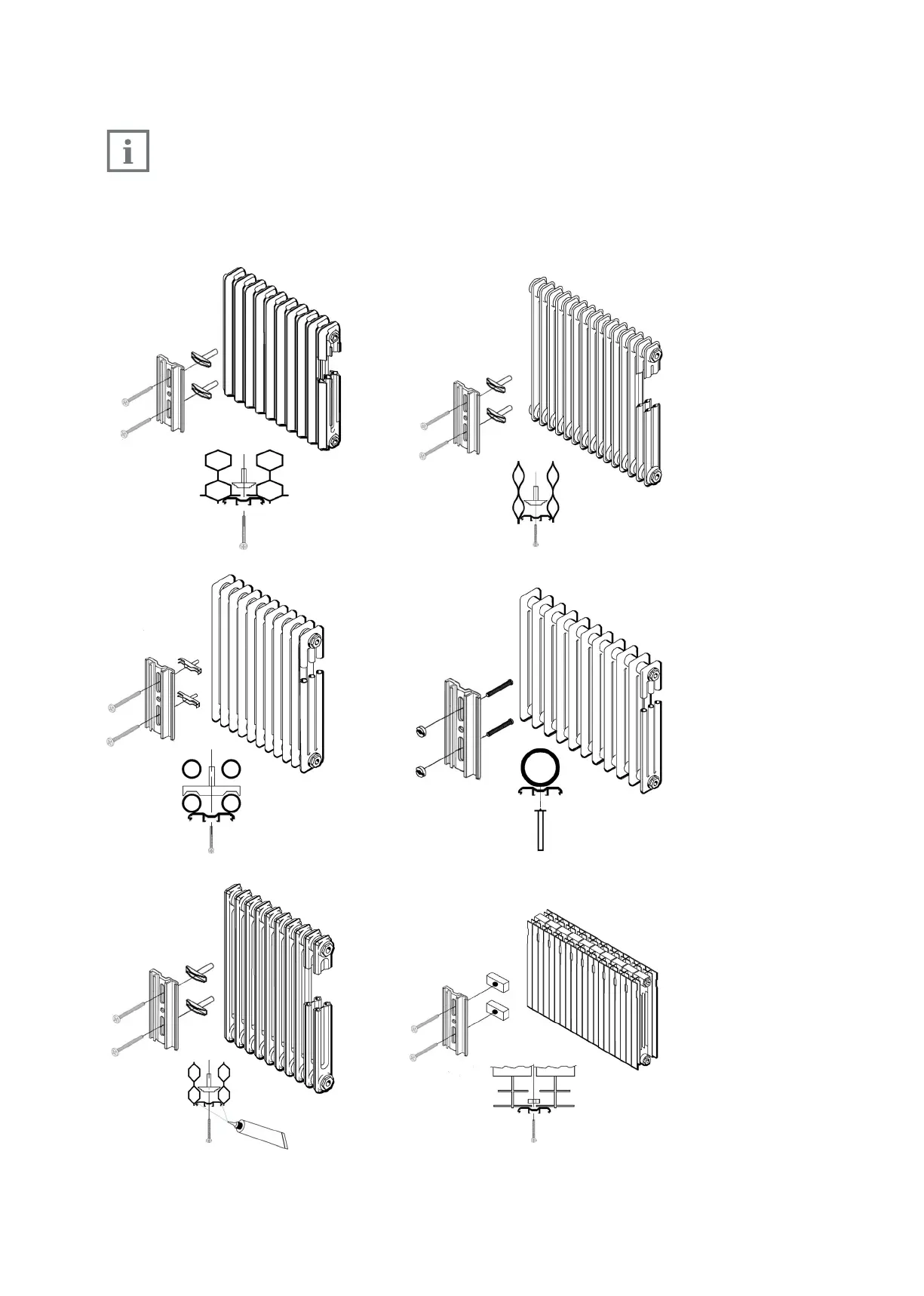

7.7.1 Section radiator, direct mounting
Please note that the examples below are only indicative. If you require further infor-
mation regarding radiator types or mounting accessories please contact your nearest
Sontex agent or Sontex SA directly.
 In the case of cast iron radiators, the contact
surfaces of the aluminium mounting plate should
be coated with heat-conducting paste before
fixing.
