0739P300-E Installation Supercal 739 EN 17-03-2016 12 Sontex SA, 2605 Sonceboz, Switzerland
Integrator
Temperature measurement
Temperature sensor 2 wires Pt1‘000
Diameter (Ø3.4), Ø5.0; Ø5.2, Ø 6 mm
Cables length 1.5 m
Admissible range 0…110°C
Differential range 3…75 K
Response limit 0.5 K
Temperature resolution (display) 0.1 K
Temperature resolution ∆t 0.01 K
Measurement cycle from 10 seconds
Environment class
Environment class C
Mechanics M1
Electronics E1
Battery protection class III
Cable connection between flow sensor and integrator 0.6 m, fix
Protection index IP 65
Permissible temperature range
Operation 5…55°C
Operation: radio version 5…40°C
Storage and transport -10…60°C
Power supply
Lithium battery 3V 6+1 or 12+1 years
Pulse output
Open drain (MOS Transistor) 1 Hz, 500 ms
Vcc
max
: 35 V
DC
; Icc
max
: 25 mA
Pulse inputs with a dry contact
Power supply
internal
2.3 V
DC
R
pull UP internal
2 MΩ
Pulse factor 0...999.999 m
3
/Imp or without unit
Powered by M-Bus line 1 device = 2 M-Bus charges (max 2 x 1.5mA)
Metrological class EN 1434 class 3
CE conformity according to
Directive 2004/22/EC (MID)
R &TTE guideline 1999/5/EC
Type Examination Certificate CH-MI004-13018

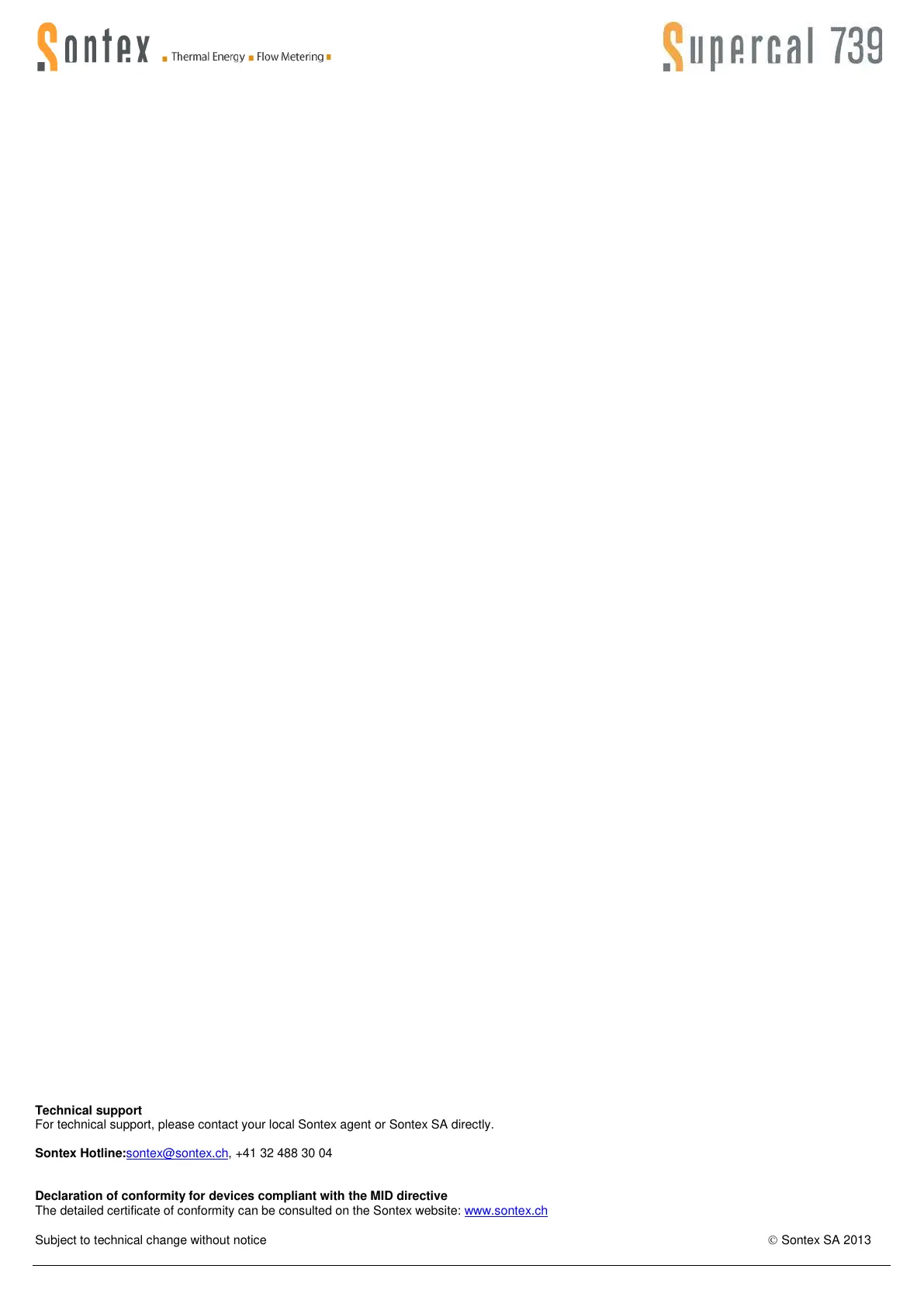

Technical support
For technical support, please contact your local Sontex agent or Sontex SA directly.
Sontex Hotline:
sontex@sontex.ch
, +41 32 488 30 04
Declaration of conformity for devices compliant with the MID directive
The detailed certificate of conformity can be consulted on the Sontex website:
www.sontex.ch
Subject to technical change without notice Sontex SA 2013
