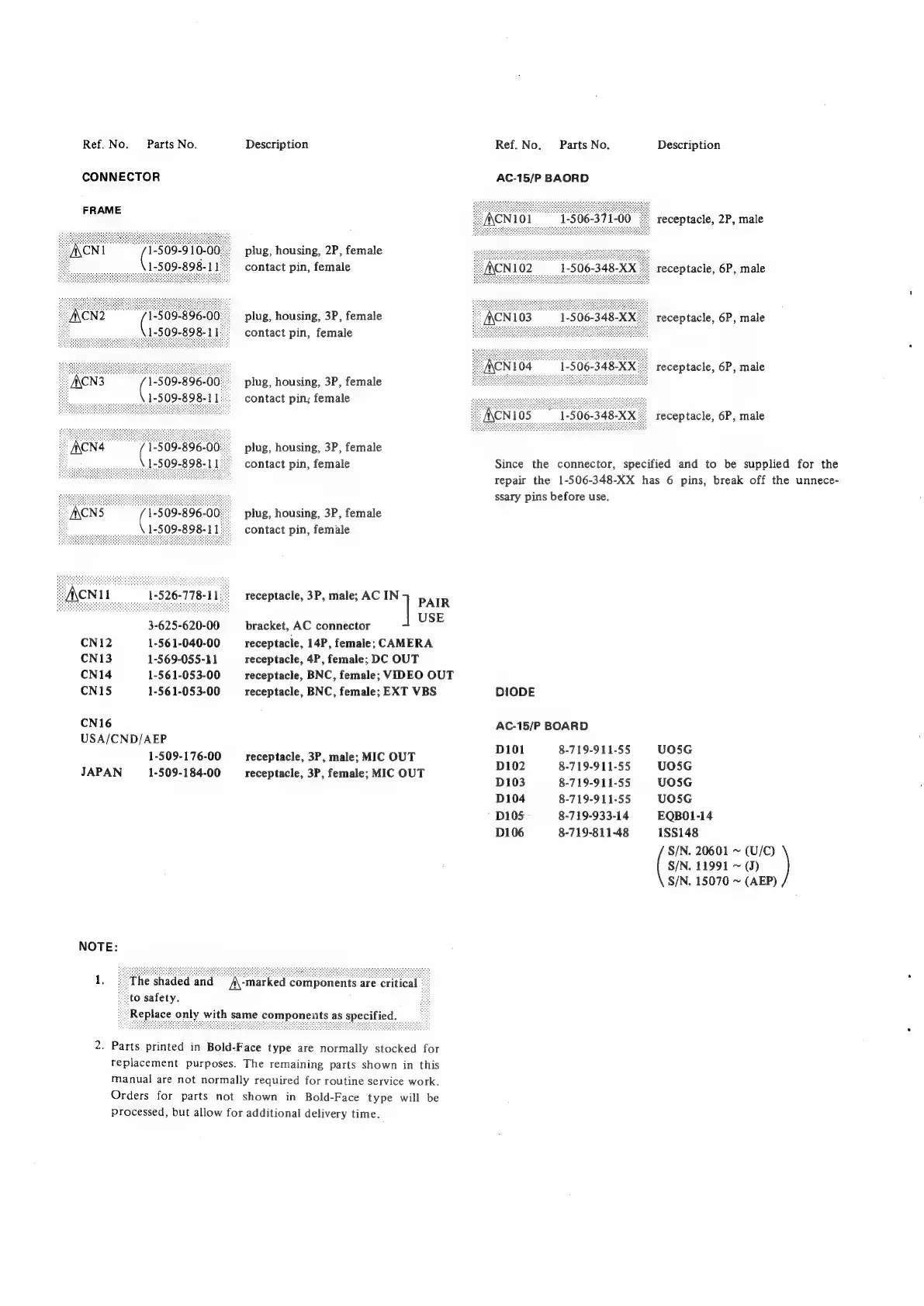

Sony AC-500CE - Page 27

Ref. No. Parts No.
CONNECTOR
FRAME
1-509-9 10-0
1-509-89 8-1
1-509-898-1
3-625-620-00
CN12 1-561-040-00
CN13 1-569-055-11
CN14 1-561-053-00
CN15 1-561-053-00
CN16
USA/CND/AEP
1-509-176-00
JAPAN 1-509-184-00
Description
plug, housing, 2P, female
contact pin, female
plug, housing, 3P, female
contact pin, female
plug, housing, 3P, female
contact pin; female
plug, housing, 3P, female
contact pin, female
plug, housing, 3P, female
contact pin, female
PAIR
receptacle, 3P, male; AC IN
| USE
bracket, AC connector
receptacle, 14P, female; CAMERA
receptacle, 4P, female; DC OUT
receptacle, BNC, female; VIDEO OUT
receptacle, BNC, female; EXT VBS
receptacle, 3P, male; MIC OUT
receptacle, 3P, female; MIC OUT
A\-marked components are critica
2. Parts printed in Bold-Face type are normally stocked for
replacement purposes. The remaining parts shown in this
manual are not normally required for routine service work.
Orders for parts not shown in Bold-Face type will be
Processed, but allow for additional delivery time.
Ref. No. Parts No. Description
AC-15/P BAORD
receptacle, 2P, male
eceptacle, 6P, male
1-506-348-XX
receptacle, 6P, male
receptacle, 6P, male
receptacle, 6P, male
Since the connector, specified and to be supplied for the
repair the 1-506-348-XX has 6 pins, break off the unnece-
ssary pins before use.
DIODE
AC-15/P BOARD
D101 8-719-911-55 UO5G
D102 8-719-911-55 UOSG
D103 8-719-91 1-55 UOSG
D104 8-719-911-55 UOSG
D105 8-719-933-14 EQBO01-14
D106 8-719-811-48 188148
S/N. 11991 ~ (J)
( S/N. 20601 ~ (U/C)
S/N. 15070 ~ (AEP)
