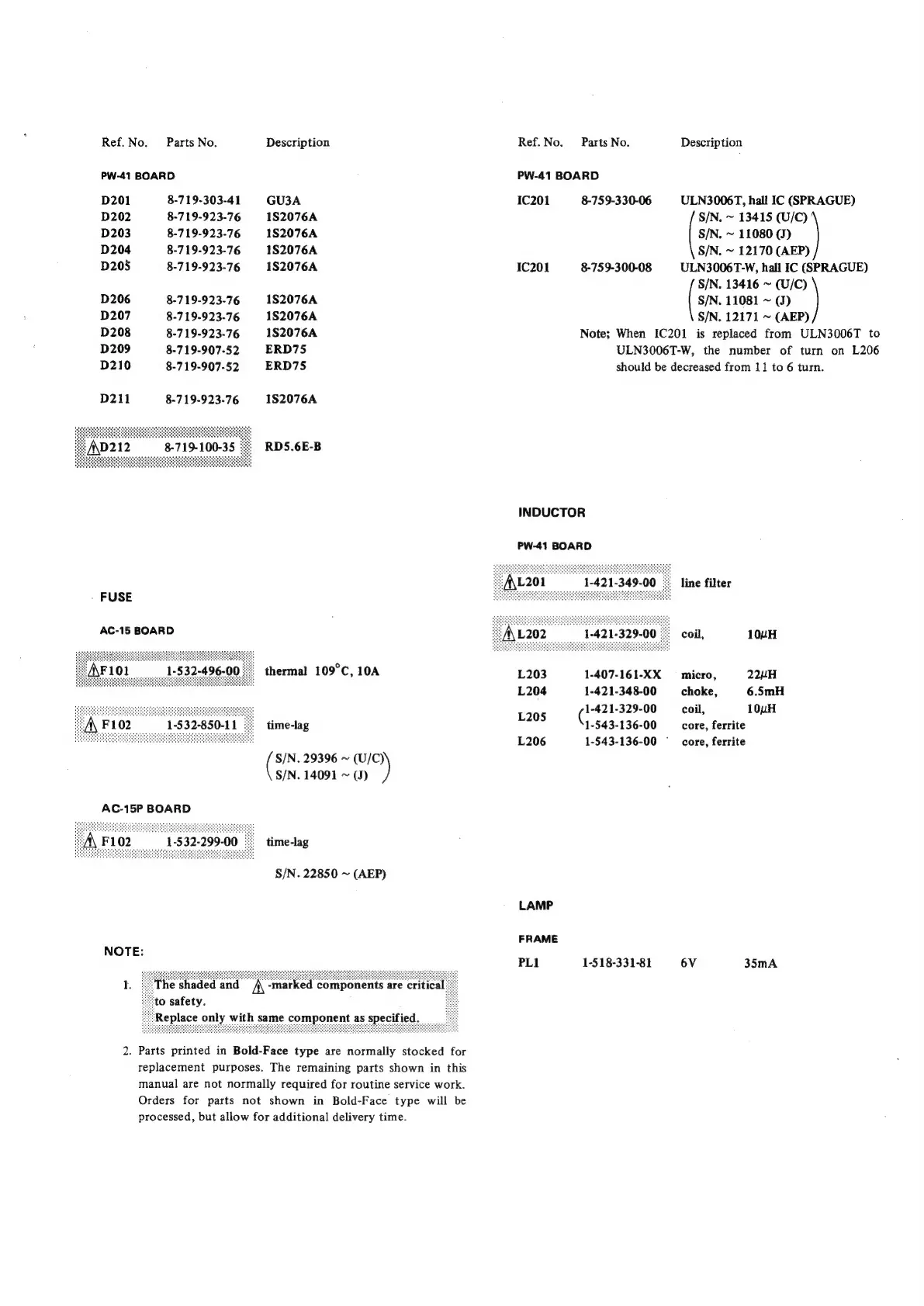

Sony AC-500CE - Page 28

Ref. No. Parts No. Description
PW-41 BOARD
D201 8-719-303-41 GU3A
D202 8-7 19-923-76 182076A
D203 8-719-923-76 182076A
D204 8-719-923-76 182076A
D205 8-719-923-76 182076A
D206 8-719-923-76 182076A
D207 8-719-923-76 182076A
D208 8-719-923-76 182076A
D209 8-719-907-52 ERD75
D210 8-719-907-52 ERD75
D211 8-719-923-76 182076A
RDS.6E-B
8-719-100-3
- FUSE
AC-15 BOARD
thermal 109°C, 10A
F102 1-532-850-11
time-lag
( S/N. 29396 ~ (U/C)
S/N. 14091 ~ (J)
AC-15P BOARD
F102
1-532-299-00 time-lag
S/N. 22850 ~ (AEP)
2. Parts printed in Bold-Face type are normally stocked for
replacement purposes. The remaining parts shown in this
manual are not normally required for routine service work.
Orders for parts not shown in Bold-Face type will be
processed, but allow for additional delivery time.
Ref. No. Parts No. Description
PW-41 BOARD
1C201 8-759-330-06 ULN3006T, hall IC (SPRAGUE)
S/N. ~ 13415 (U/C) '
S/N. ~ 11080 (J)
S/N. ~ 12170 (AEP)
ULN3006T-W, hall IC (SPRAGUE)
(sw 13416 ~ (U/C) )
IC201 8-759-300-08
S/N. 11081 ~ (J)
S/N. 12171 ~ (AEP)
Note; When IC201 is replaced from ULN3006T to
ULN3006T-W, the number of turn on L206
should be decreased from 11 to 6 turn.
INDUCTOR
Pw-41 BOARD
1-421-329-00 coil, 104H
L203 1-407-161-XX = micro, 22HH
L204 1-421-348-00 choke, 6.5mH
1-421-329-00 coil, 10uH
Bas (1-543-136-00 core, ferrite
L206 1-543-136-00 "core, ferrite
LAMP
FRAME
PLI 1-518-331-81 6V 35mA
