BKM-120D/127W/129X/142HD
1-3.PR LEVEL Adjustment
Adjustment Standard Adjusting Point
• Input the 100% color bar signal TP303 (PR OUT) output level: The adjustment menu is located in
(100% White Ref. 100% Saturation) the lower layer of BKM-142HD of
into the HD SDI input terminal. the MAINTENANCE menu.

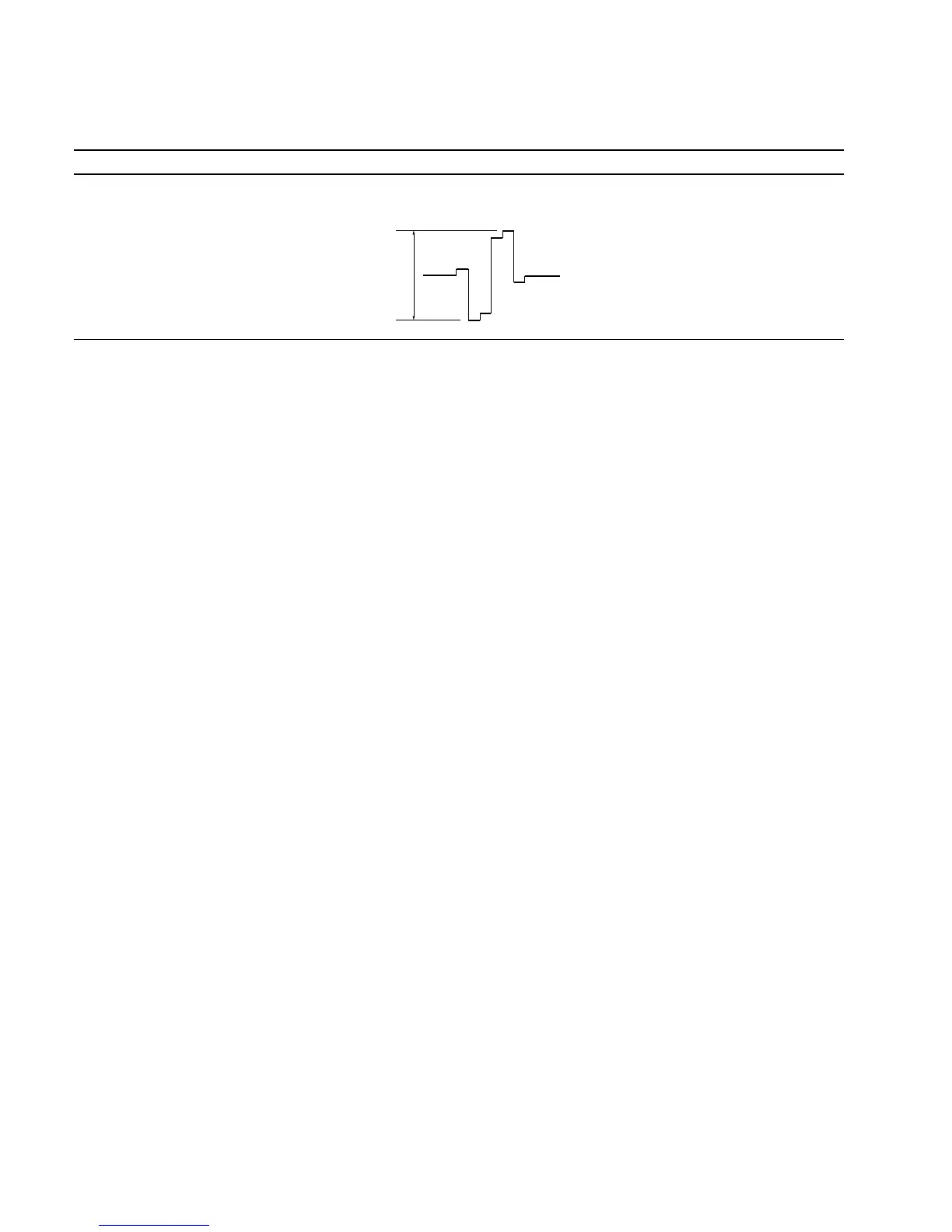

• Connect an oscilloscope to TP303 PR LEVEL
(PR OUT)
645 ±10 mVp-p
