Sony BKM-142HD - Page 56

7-2
BKM-120D/127W/129X/142HD
7-2
2
3
4
5
ABCDEFGH
1
7-1. Schematic Diagrams and Printed Wiring Boards
BX BKM-129XBX BKM-129X
BX –A SIDE–
SUFFIX: -11
BX –B SIDE–
SUFFIX: -11
A
1
2
3
4
5
BC CBA
1
2
3
4
5

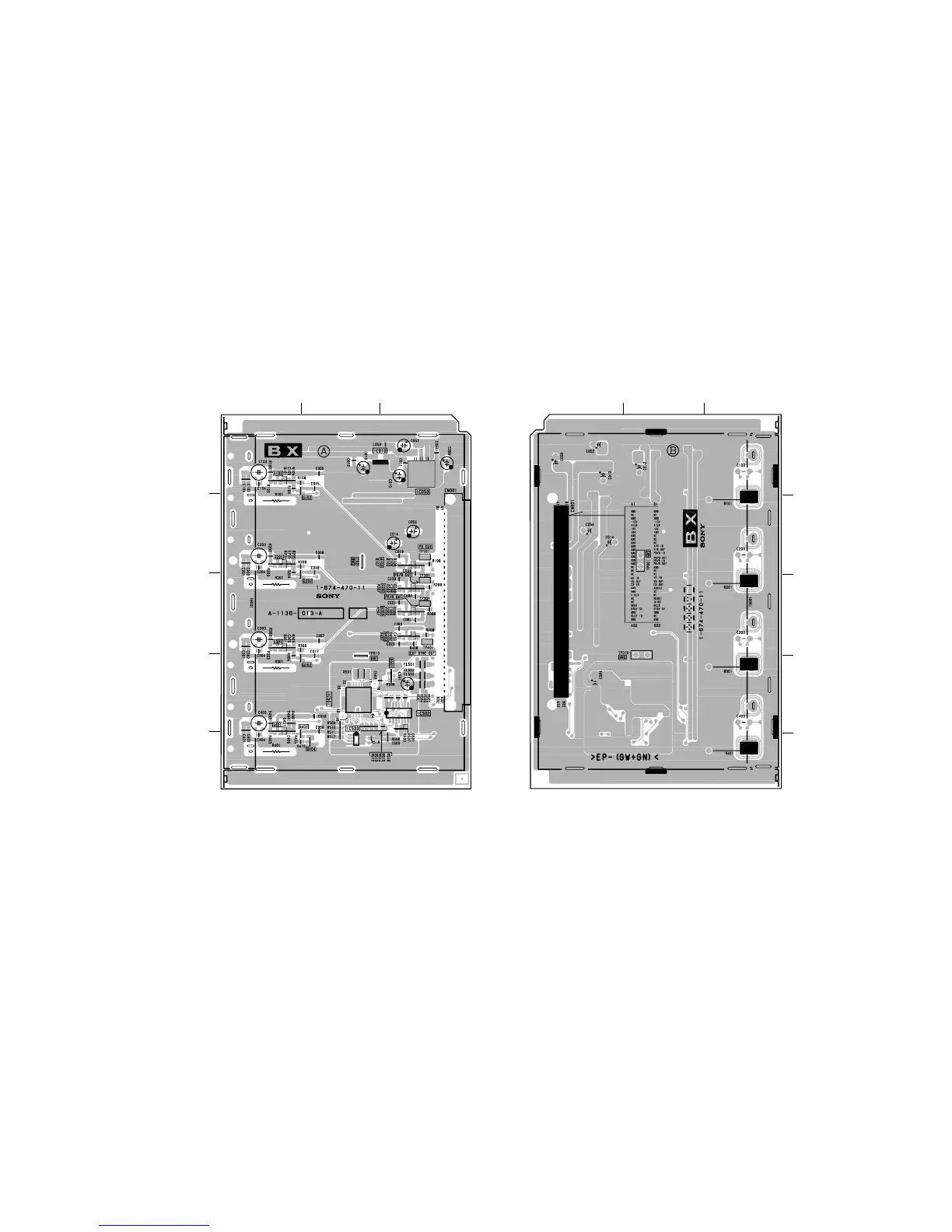

BX BOARD (BKM-129X)
BX BOARD
* : B SIDE
D101 A-1
D102 C-2
D201 A-2
D202 C-3
D301 A-3
D302 C-3
D401 A-4
D402 C-3
D501 C-5
IC010 B-1
IC050 C-1
IC501 B-4
IC502 C-4
IC503 B-5
Q101 A-1
Q102 B-2
Q103 C-2
Q201 A-2
Q202 B-3
Q203 C-3
Q301 A-3
Q302 B-4
Q303 C-3
Q401 A-4
Q402 B-4
Q403 C-3
Q404 B-5
Q501 C-4
TP001 B-2
TP010 B-4
TP101 C-2
TP201 C-3
TP301 C-3
TP401 C-3
