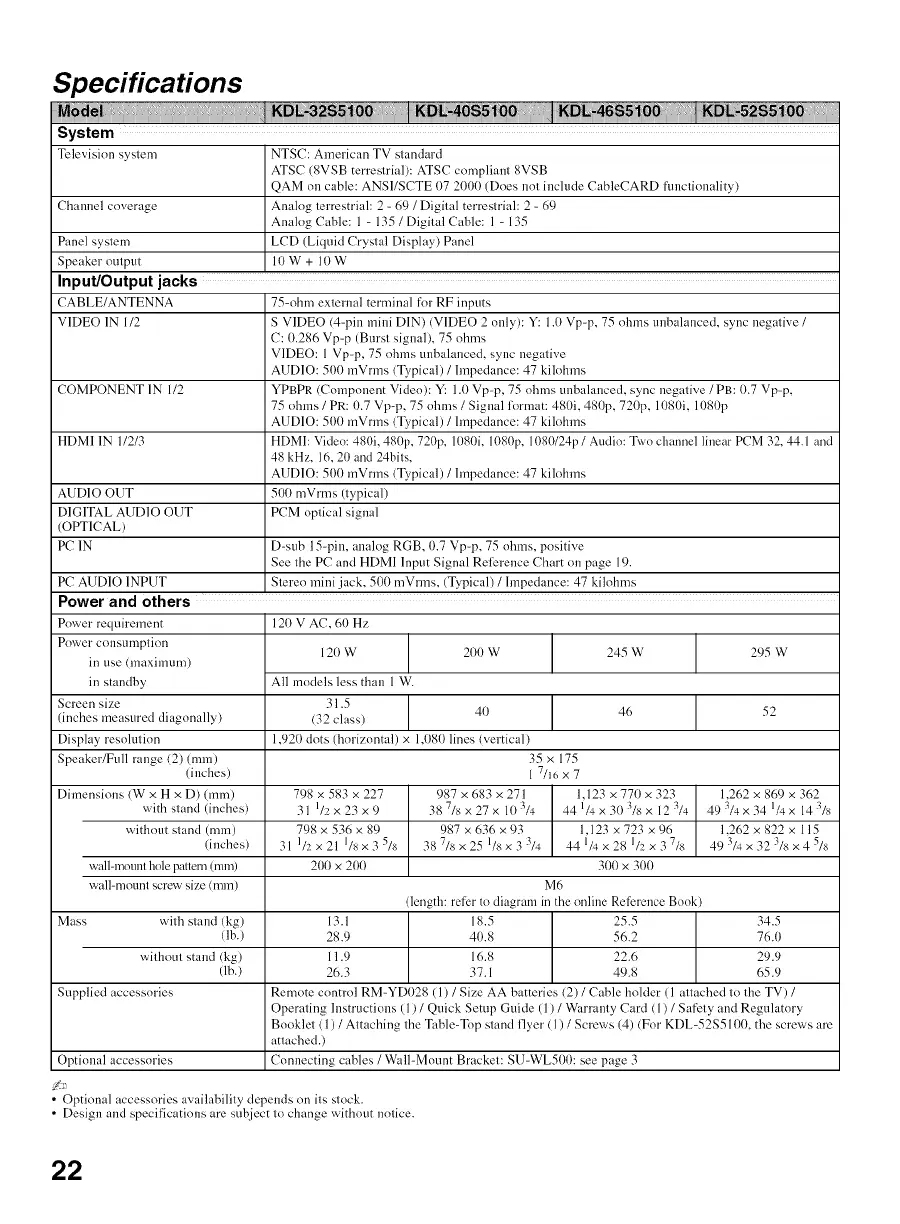

Specifications
System
Television syslem NTSC: American TV slandard
ATSC (8VSB terreslrial): ATSC compliam 8VSB
QAM on cable: ANS1/SCTE 1)7 2000 (Does nol include CableCARD funclionality)
Channel coverage Analog lerrestrial: 2 - 69 / Digilal terreslrial: 2 - 69
Analog Cable: 1 =135 / Digilal Cable: 1 = 135
Panel syslem LCD (Liquid Cryslal Display) Panel
Speaker oulptlt 10 W + 10 W
Input/Output jacks
CABLE/ANTENNA 75-ohm exlernal terminal for RF inputs
VIDEO 1N 1/2 S VIDEO (4-pin mini DIN) (VIDEO 2 only): Y: 1.0 Vp-p, 75 ohms unbalanced, sync negalive/
C: 0.286 Vp-p (Bursl signal), 75 ohms
VIDEO: 1 Vp-p, 75 ohms unbalanced, sync negalive
AUDIO: 5(10 mVrms (Typical) / hnpedance: 47 kilohms
COMPONENT 1N 1/2 YPBPR (Component Video): Y: 1.0 Vp-p, 75 ohms unbalanced, sync negalive /PB: 1).7 Vp-p,
75 ohms / PR: 1).7Vp-p, 75 ohms / Signal lormat: 480i, 480p, 720p, 11)81ti, 1080p
AUDIO: 5(10 mVrms (Typical) / hnpedance: 47 kilohms
HDMI 1N 1/2/3 HDMI: Video: 480i, 480p, 720p, 1080i, 1080p, 1080/24p / Audio: Two channel linear PCM 32, 44.1 and
48 kHz, 16, 20 and 24bils,
AUDIO: 5(10 mVrms (Typical) / hnpedance: 47 kilohms
AUDIO OUT 500 mVrms (typical)
DIGITAL AUDIO OUT PCM oplical signal
(OPTICAL)
PC 1N D-sub 15=pin, analog RGB, 0.7 Vp-p, 75 ohms, positive
See lhe PC and HDMI Input Signal Reference Chart on page 19.
PC AUD10 1NPUT Stereo mini jack, 5(10 mVrms, (Typical) / hnpedance: 47 kilohms
Power and others
Power requirement 120V AC, 60 Hz
Power COllsLImplion
120 W 200 W 245 W 295 W
in use (maximum)
in standby All models less than 1 W.
Screen size 31.5
4O 46 52
(inches measured diagonally) (32 class)
Display* resolution 1,920 dots (horizontal) x 1,080 lines (vertical)
Speaker/Full range (2) (mm) 35 x 175
(inches) 17/1(. x 7
Dimensions (W x H x D) (ram) 798 x 583 x 227 987 x 683 x 271 1,123 x 770 x 323 1.262 x 869 x 362
with sland (inches) 31 1/2 X 23 x 9 38 7/8 x 27 x 103/4 44 1/,4 X 30 3/8 x 12 3/4 49 3/4 x 34 1/,4 x 14 _/8
without sland (mm) 798 x 536 x 89 987 x 636 x 93 1,123 x 723 x 96 1,262 x 822 x 115
(inches) 31 1/2 x 21 I/8x3 5/8 387/8 x25 l/8x 3 3/4 44 1/`4x 28 I/2 x 37/8 49 3/`4x 32 3/8 x4 5/8
wall-mnunl hole pattern (ram) 200 x 200 300 x 300
wall-mounl screw size (mm) M6
(length: refer to diagram in the online Reference Book)
Mass with sland (kg) 13.1 18.5 25.5 34.5
(lb.) 28.9 40.8 56.2 76.0
wilhoul stand (kg) 11.9 16.8 22.6 29.9
(lb.) 26.3 37.1 49.8 65.9
Supplied accessories Remote control RM-YD028 (1) / Size AA batteries (2) / Cable bolder (1 allached lo the TV) /
Operaling Instructions (1) / Quick Setup Guide (1) / Warranly Card (1) / Sa fi_lyand Regulatory
Booklel ( 1) / Altaching lhe Table=Top sland flyer (1) / Screws (4) (For KDL=52S5100. the screws are
atlached.)
Optional accessories Connecting cables / Wall-Mount Brackel: SLJ-WL5()(t: see page 3
Optional accessories availabilily depends on ils slock.
Design and specifications are subject to change without nolice.
