Sony BRAVIA KLV-32EX310 - TV Installation Dimensions Table

34
GB
Note when installing
When using the SU-WL50B or SU-WL100 Wall-Mount Bracket, the space between the wall and the TV will be 6
cm. Use this space to route cables to the TV.
Unit: mm
Unit: mm
Figures in the above table may differ slightly depending on the installation.
WARNING
The wall that the TV will be installed on should be capable of supporting a weight of at least four times that of the
TV. Refer to “Specifications” for its weight.
Sufficient expertise is required for installing these products, especially to determine the strength of the wall for
withstanding the TV’s weight. Be sure to entrust the attachment of these products to the wall to Sony dealers or
licensed contractors and pay adequate attention to safety during the installation. Sony is not liable for any damage or
injury caused by mishandling or improper installation.

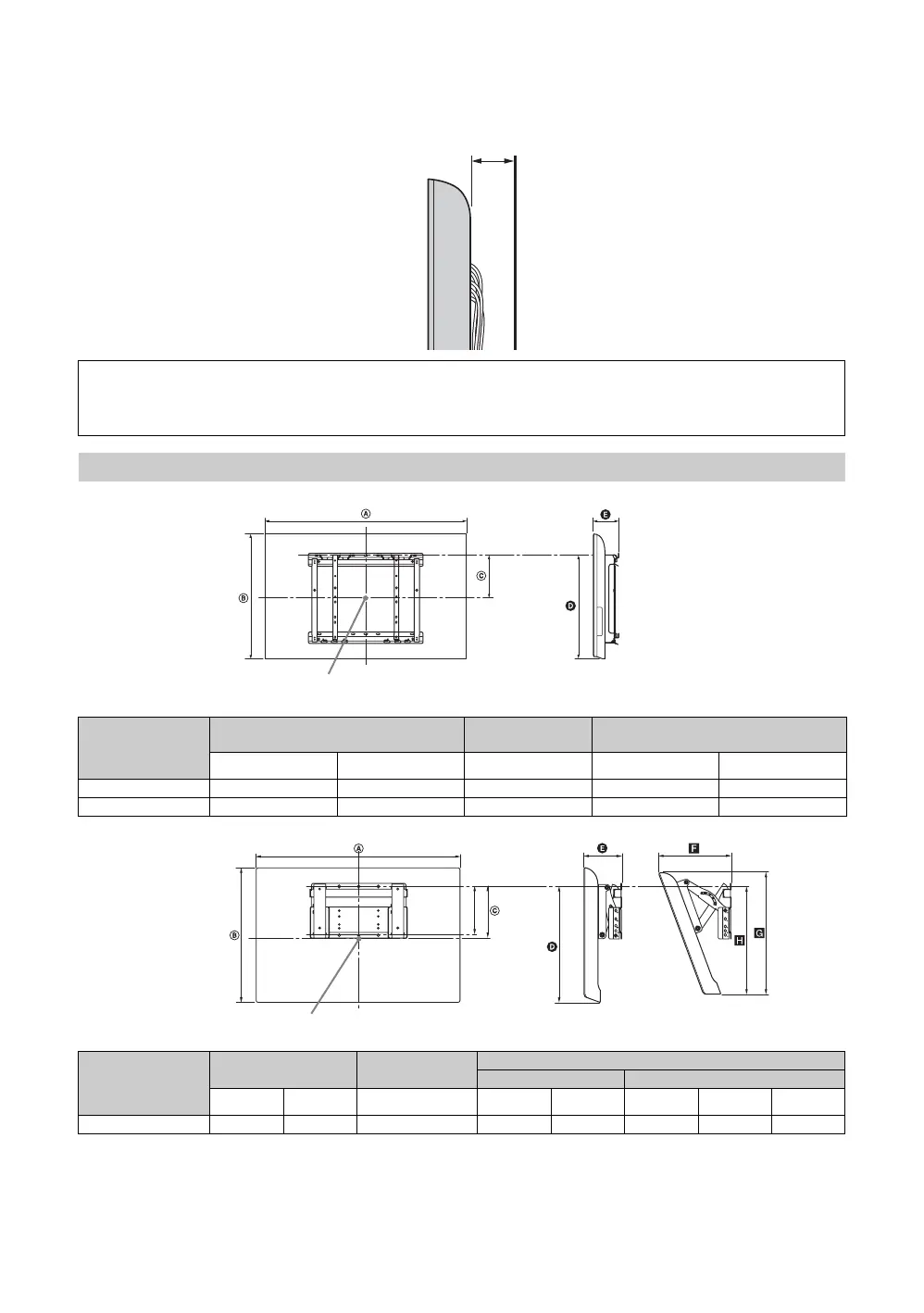

TV installation dimensions table
Model name
Display dimensions
Screen centre
dimension
Length for mounting
ABCDE
KLV-42EX410
989 612 189 510 106
KLV-32EX310
756 481 179 435 105
Model name
Display
dimensions
Screen centre
dimension
Length for each mounting angle
Angle (0°) Angle (20°)
AB C DEFGH
KLV-22EX310
524 346 108 296 98 186 313 275
6 cm
SU-WL50B:
Screen centre point
b
b
ac
a
c
125
SU-WL100:
Screen centre point
