Sony BRAVIA KLV-32EX310 - Screw and Hook Locations Diagram;Table

35
GB
Additional Information

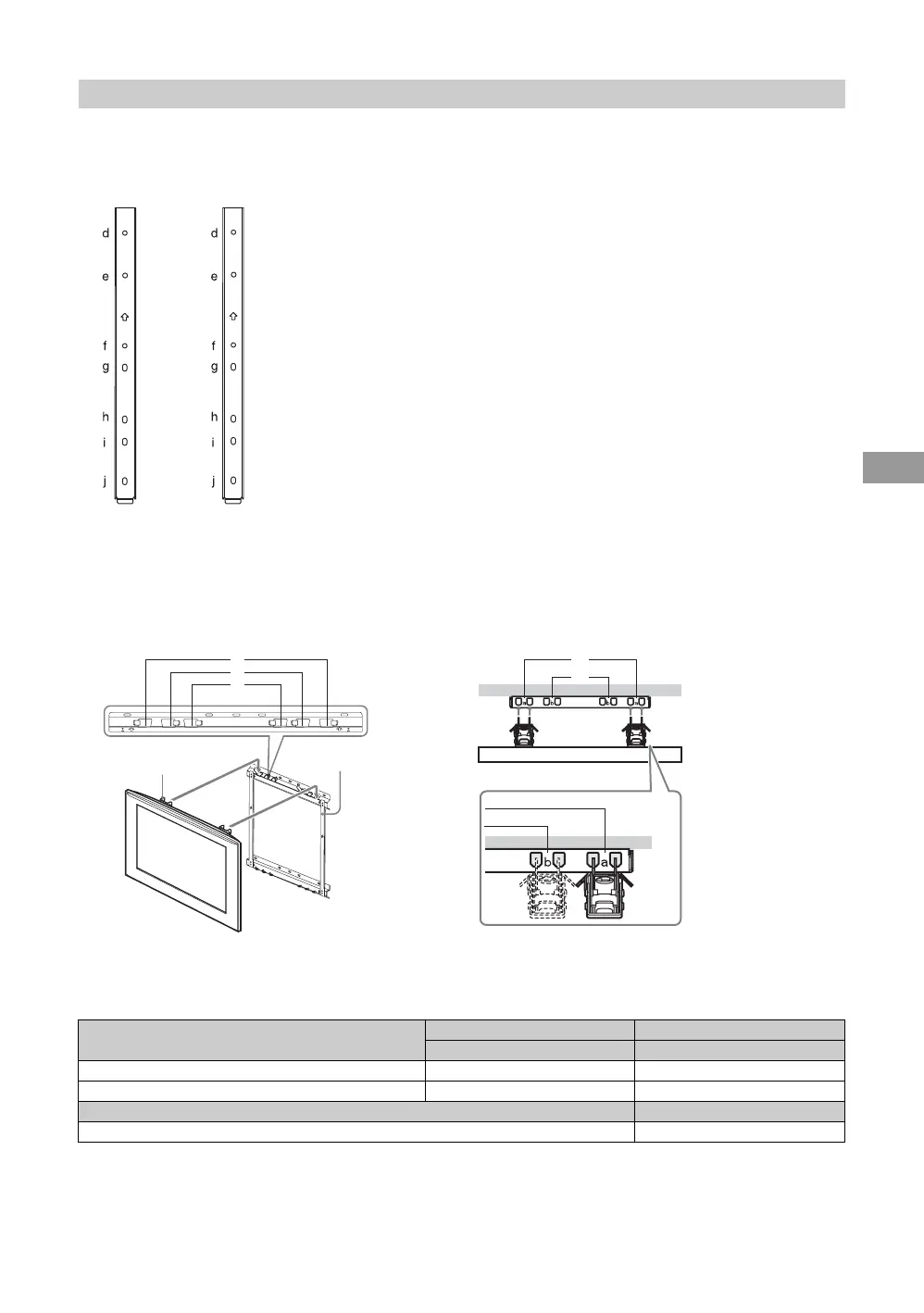

Screw and hook locations diagram/table
Screw location - When installing the Mounting Hook on the TV.
SU-WL50B
Model name
Screw location Hook location
SU-WL50B SU-WL50B
KLV-42EX410 e, j b
KLV-32EX310 e, h c
SU-WL100
KLV-22EX310 b
SU-WL50B
* Hook location “a” cannot be used for
the models in the table below.
b
a*
c
b
c
b
a
a
c
a
b
c
c
b
a
Hook
Base Bracket
Hook location - When installing the TV onto the Base Bracket.
b
a*
SU-WL100
* Hook location “a” cannot be used for
the models in the table below.
