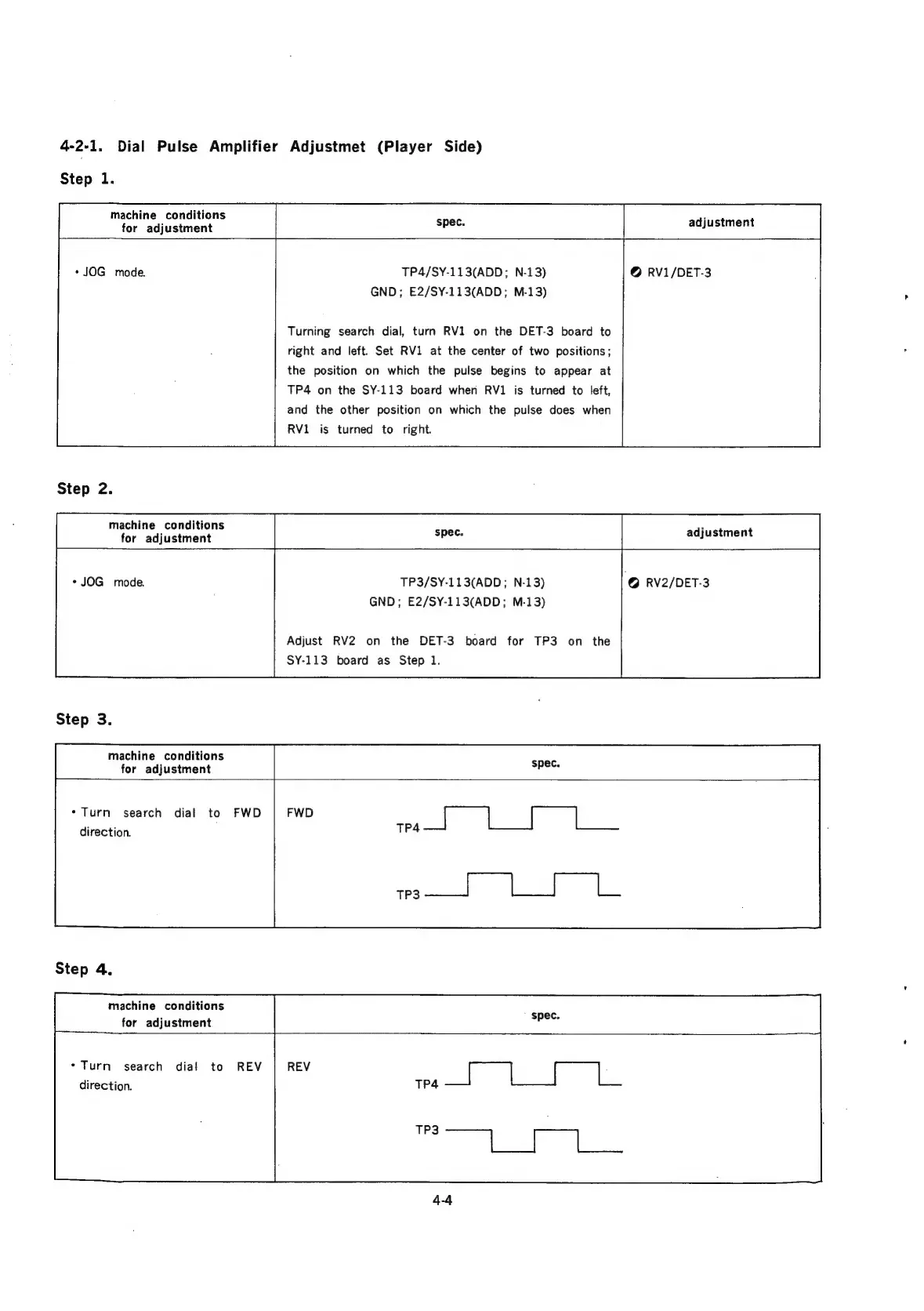

4-2-1. Dial Pulse Amplifier Adjustmet (Player Side)
Step 1.
machine conditions :
for
adjustment
*
adjustment
——_—;_—
+ JOG mode. TP4/SY-113(ADD; N-13) @ RV1/DET-3
GND; E2/SY-113(ADD; M-13)
Turning search dial, turn RV1 on the DET-3 board to
right and left. Set RV1 at the center of two positions;
the position on which the pulse begins to appear at
TP4 on the SY-113 board when RV1 is turned to left,
and the other position on which the pulse does when
RV1 is turned to right.
Step 2.
machine conditions .
for
adjustment
adjustment
+ JOG mode. TP3/SY-113(ADD; N-13) eo RV2/DET-3
GND; E2/SY-113(ADD; M-13)
Adjust RV2 on the DET-3 board for TP3 on the
SY-113 board as Step 1.
Step 3.
machine conditions
for adjustment
*Turn search dial to FWD
direction.
Step 4.
machine conditions
for adjustment
*Turn search dial to REV
direction.
