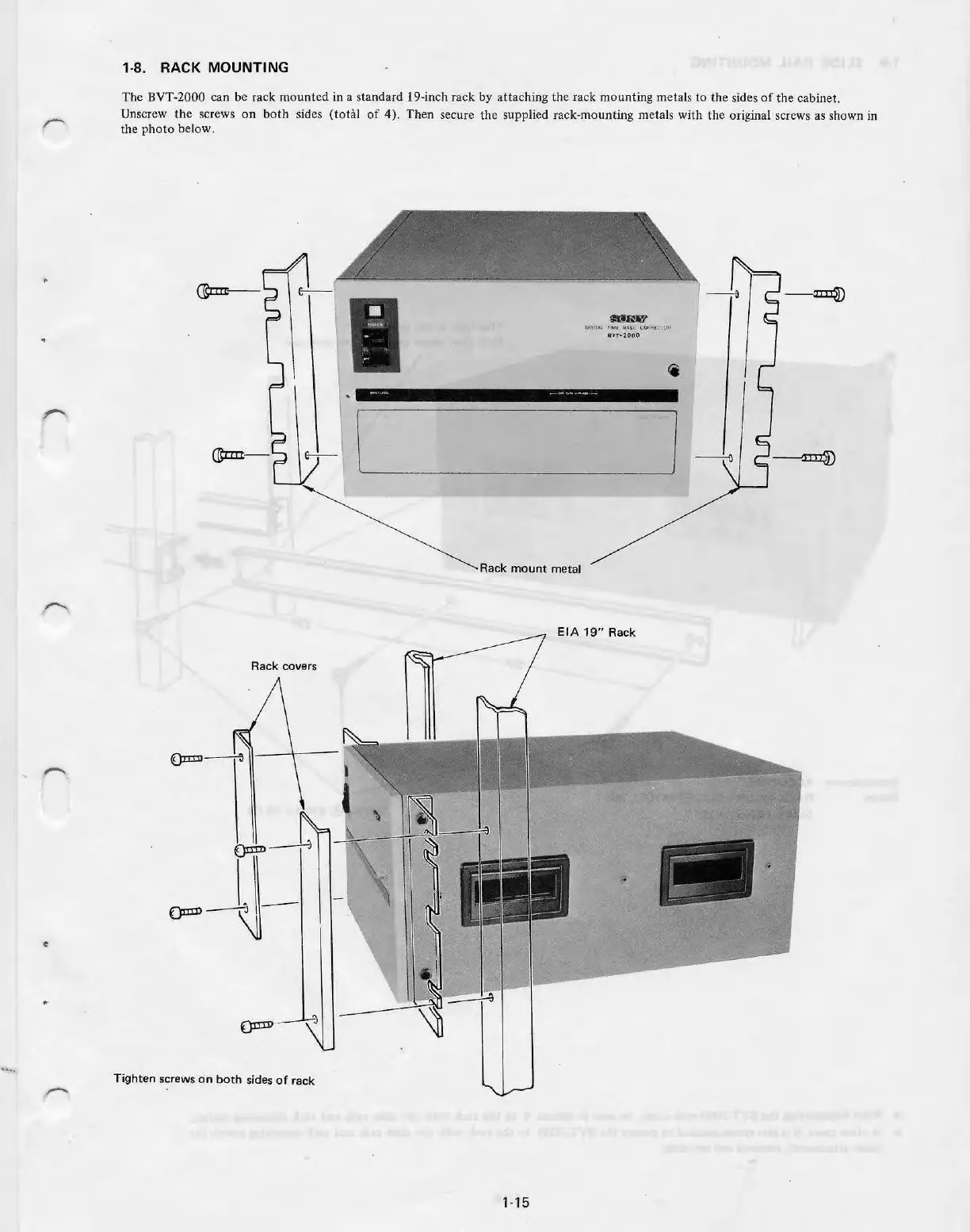

1-8. RACK MOUNTING
The BVT-2000 can be rack mounted in a standard 19 -i nch rack by attaching the rack mounting metals to the sides of the cabinet.
Unscrew the screws
on both sides (total of 4). Th en secure the supp li ed rack-mounting metals with the original screws as shown in
the
photo below.
Rack covers
Tight en sc rews on both sides of rack
~n· u~ '""l .,._ $t COJ>'ltCJ()fl
8 ' 1T~l000
\ ~ __ )
Rack mount metal
EIA 19" Rack
1-1 5
