Sony CDP-411 - Exploded Views; Cabinet Section -+-+++++Ssseseeerereetees

NOTE:
— XX, —-X mean standardized parts,
so they may have some differences
from the original one.
Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE)...(RED)
t 1
Parts color Cabinet’s color
Items marked “#” are not stocked
since they are seldom required for
routine service. Some delay should
be anticipated when ordering these
items.

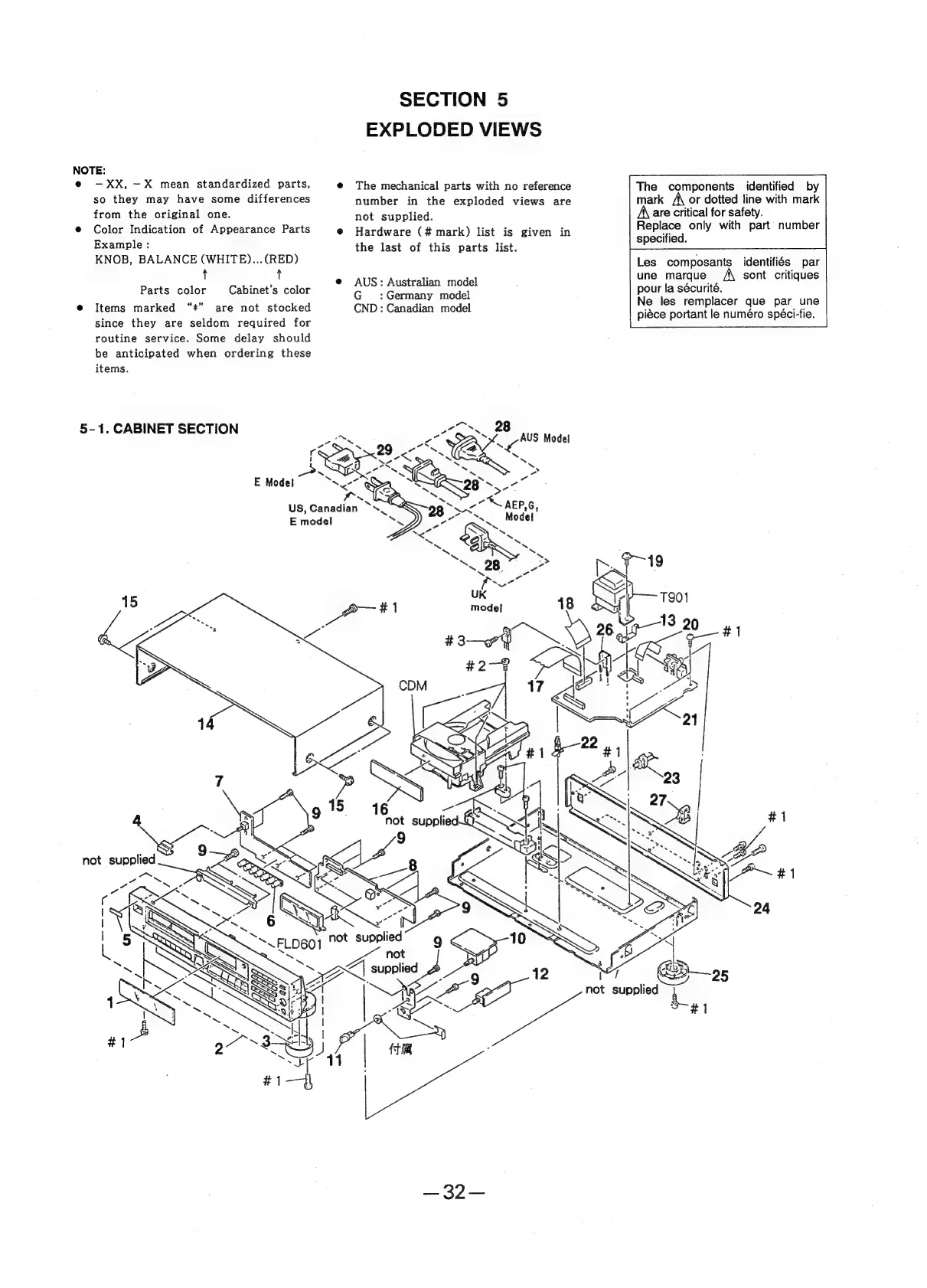

5-1. CABINET SECTION
E Model
nN
US, Canadian ~
E model
SECTION 5
EXPLODED VIEWS
The mechanical parts with no reference
number in the exploded views are
not supplied.
Hardware (# mark) list is given in
the last of this parts list.
AUS: Australian model
G :Germany model
CND: Canadian model
_ 28
2 yoo Model
The components identified by
mark \ or dotted line with mark
A are critical for safety.
Replace only with part’ number
specified.
Les composants identifiés par
une marque /\ sont critiques
pour la sécurité.
Ne les remplacer que par une
piéce portant le numéro spéci-fie.
