Sony CDP-411 - Pic-Up Block (BU-5 BD10;5 BD11;5 BD10 B)

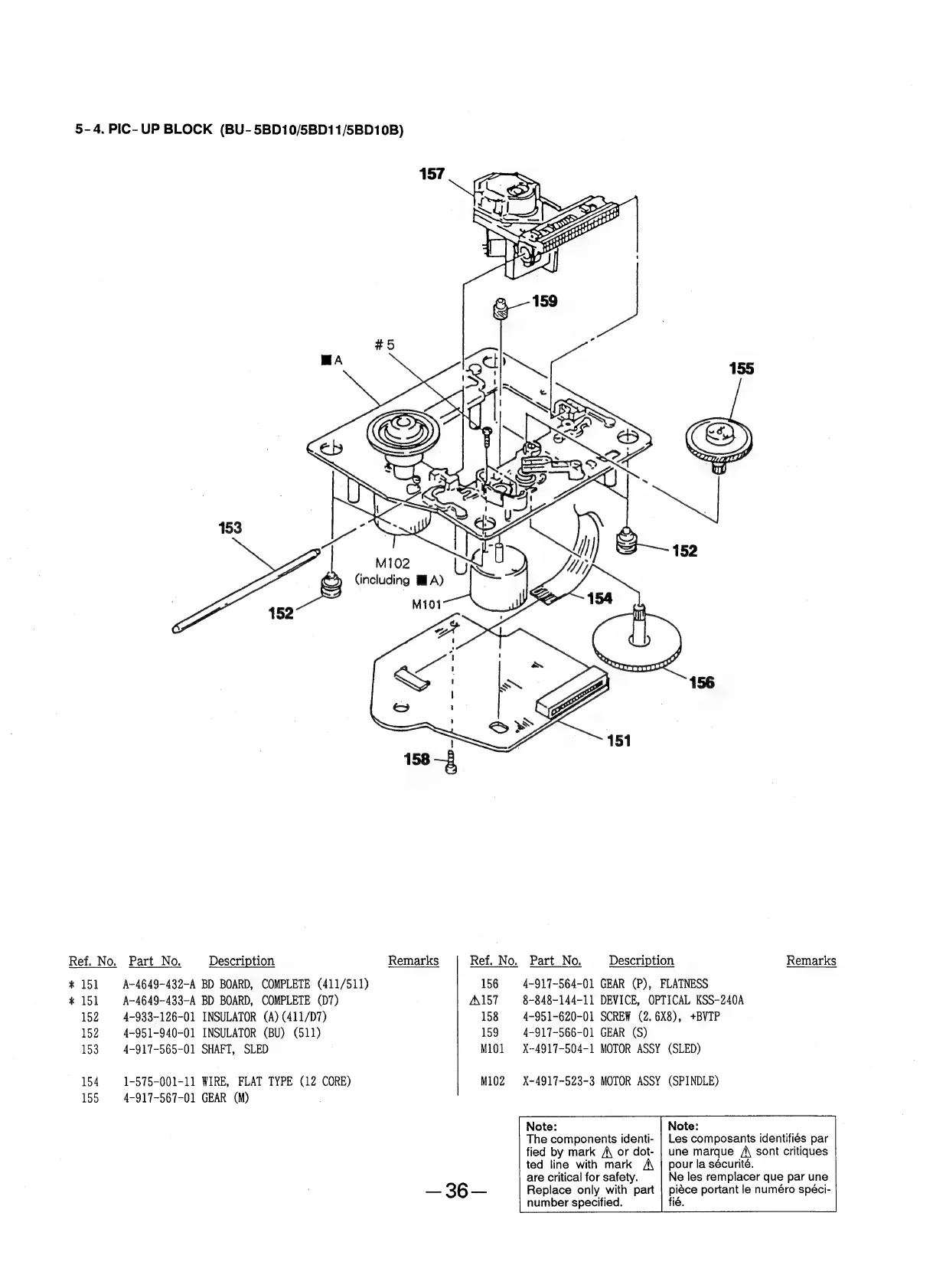

5-4. PIC- UP BLOCK (BU-5BD10/5BD11/5BD10B)
eb
at
153 lee
M102
(including MA)
152 M101
Ref, No. Part No. Description Remarks Ref. No. Part No. Description Remarks
* 151 A-4649-432-A BD BOARD, COMPLETE (411/511) 156 4-917-564-01 GEAR (P), FLATNESS
* 151 A-4649-433-A BD BOARD, COMPLETE (D7) A157 8-848-144-11 DEVICE, OPTICAL KSS-240A
152 4-933-126-01 INSULATOR (A) (411/D7) 158 4-951-620-01 SCREW (2. 6X8), +BVTP
152 4-951-940-01 INSULATOR (BU) (511) 159 4-917-566-01 GEAR (S)
153 4-917-565-01 SHAFT, SLED M101 X-4917-504-1 MOTOR ASSY (SLED)
154 1-575-001-11 WIRE, FLAT TYPE (12 CORE) M102 X-4917-523-3 MOTOR ASSY (SPINDLE)
155 4-917-567-01 GEAR (M)
Note: Note:
The components identi- | Les composants identifiés par
fied by mark /\ or dot- | une marque /\ sont critiques
ted line with mark A\ | pour la sécurité.
are critical for safety. Ne les remplacer que par une
— 36 — Replace only with part | piéce portant le numéro spéci-
number specified. fié.
