Sony CDP-411 - CD Mechanism Section

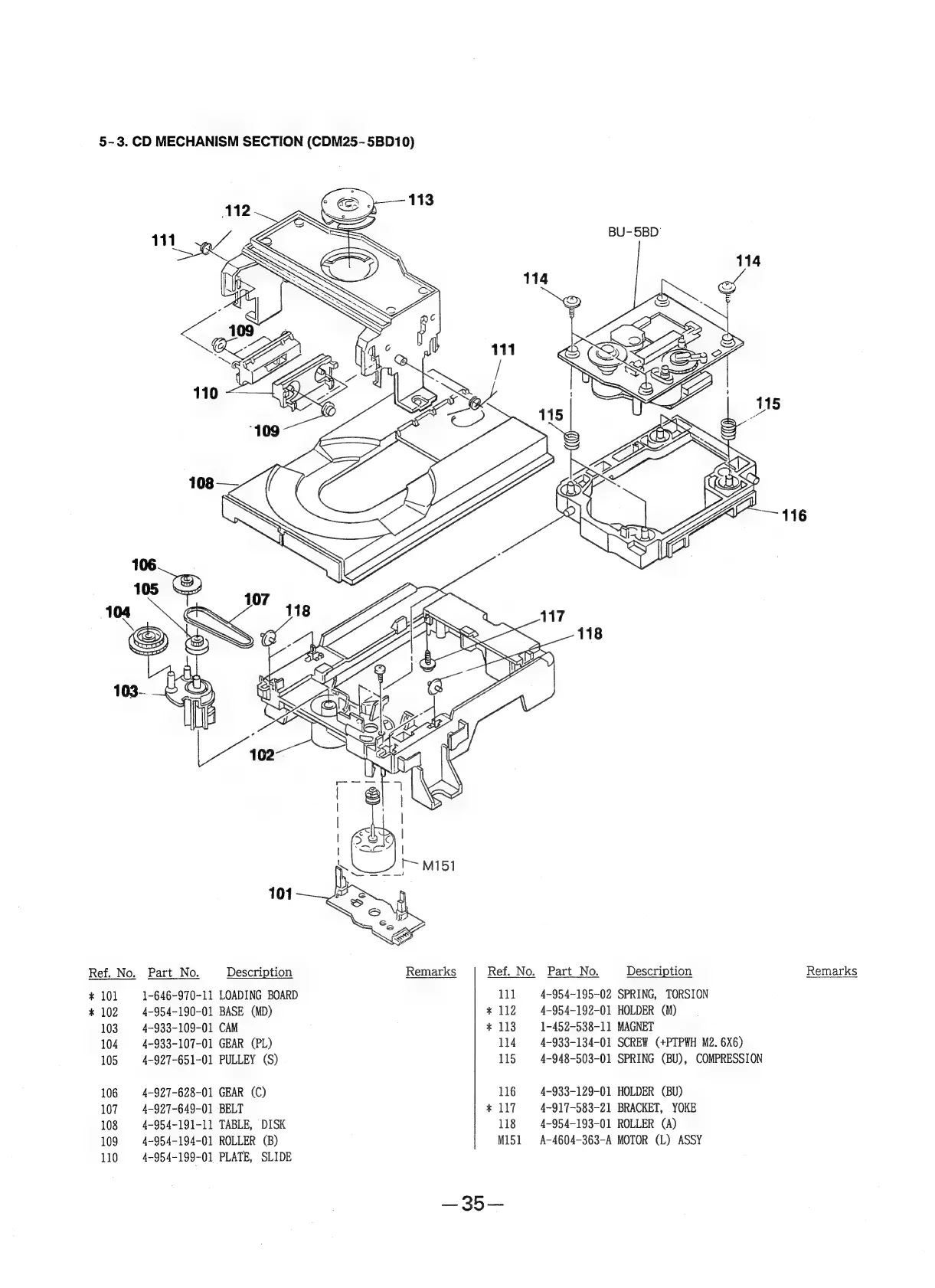

5-3. CD MECHANISM SECTION (CDM25- 5BD10)
113
112 C@}
SEF
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
* 101 1-646-970-11 LOADING BOARD 111 4-954-195-02 SPRING, TORSION
* 102 4-954-190-01 BASE (MD) * 112 4-954-192-01 HOLDER (M)
103 4-933-109-01 CAM * 113 1-452-538-11 MAGNET
104 4-933-107-01 GEAR (PL) 114 4~933-134-01 SCREW (+PIPWH M2. 6X6)
105 4-927-651-01 PULLEY (S) 115 4-948-503-01 SPRING (BU), COMPRESSION
106 4-927-628-01 GEAR (C) 116 4-933-129-01 HOLDER (BU)
107 4-927-649-01 BELT * 117 4-917-583-21 BRACKET, YOKE
108 4-954-191-11 TABLE, DISK 118 4-954-193-01 ROLLER (A)
109 4-954-194-01 ROLLER (B) M151 A-4604-363-A MOTOR (L) ASSY
110 4-954-199-01 PLATE, SLIDE
