Sony CDP-411 - CD Mechanism Section

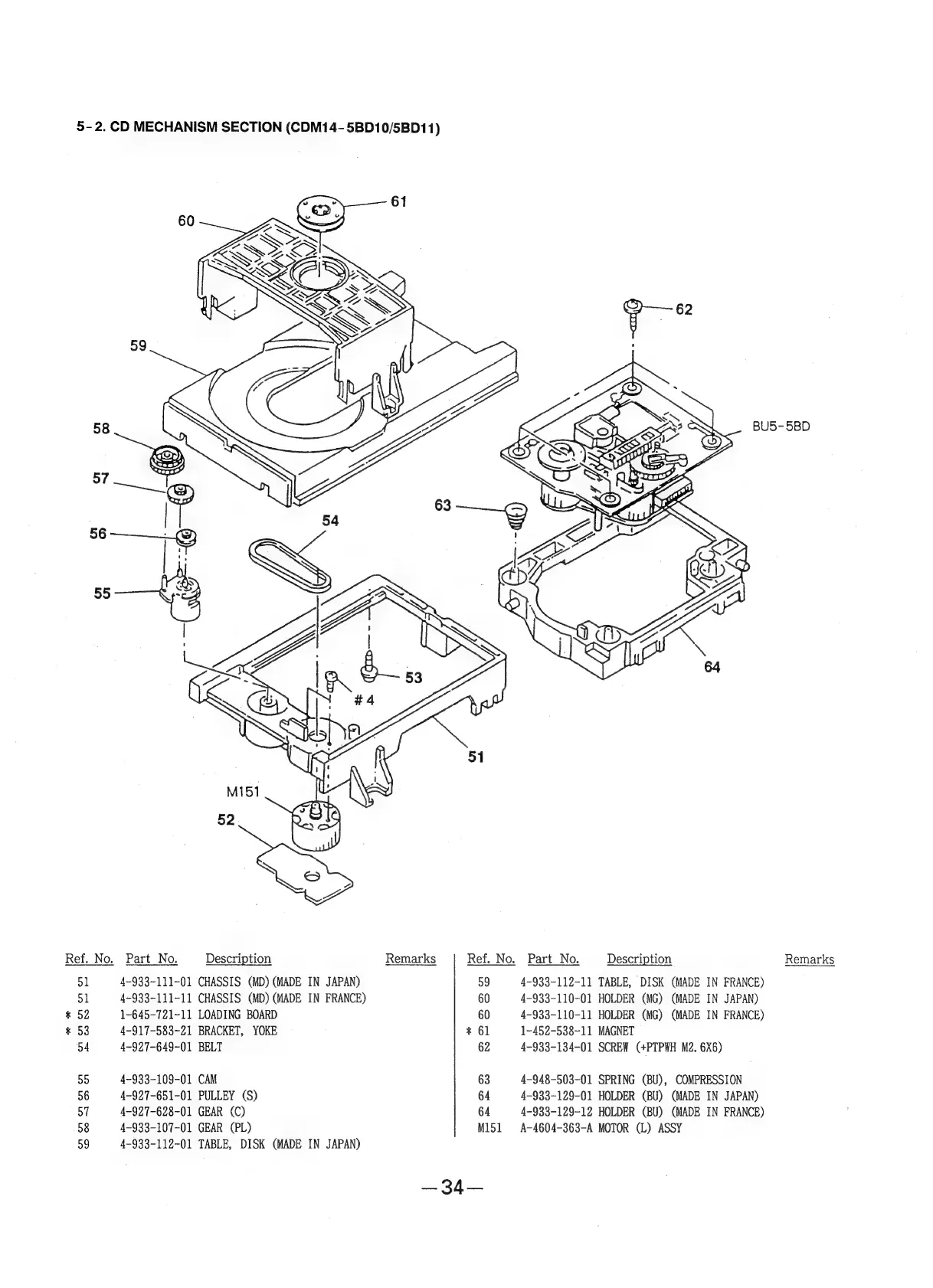

5-2. CD MECHANISM SECTION (CDM14- 5BD10/5BD11)
Ref. No. Part No.
51
51
* 52
* 53
5A
Description
4-933-111-01 CHASSIS (MD) (MADE IN JAPAN)
4-933-111-11 CHASSIS (MD) (MADE IN FRANCE)
1-645-721-11 LOADING BOARD
4-917-583-21 BRACKET, YOKE
4~-927-649-01 BELT
4-933-109-01 CAM
4-927-651-01 PULLEY (S)
4-927-628-01 GEAR (C)
4-933-107-01 GEAR (PL)
4-933-112-01 TABLE, DISK (MADE IN JAPAN)
Remarks
Ref. No. Part No.
59
60
60
* 61
62
BU5-5BD
Description Remarks
4-933-112-11 TABLE, DISK (MADE IN FRANCE)
4-933-110-01 HOLDER (MG) (MADE IN JAPAN)
4-933-110-11 HOLDER (MG) (MADE IN FRANCE)
1~452-538-11 MAGNET
4-933-134-01 SCREW (+PTPWH M2. 6X6)
4-948-503-01 SPRING (BU), COMPRESSION
4-933-129-01 HOLDER (BU) (MADE IN JAPAN)
4-933-129-12 HOLDER (BU) (MADE IN FRANCE)
A-4604-363-A MOTOR (L) ASSY
