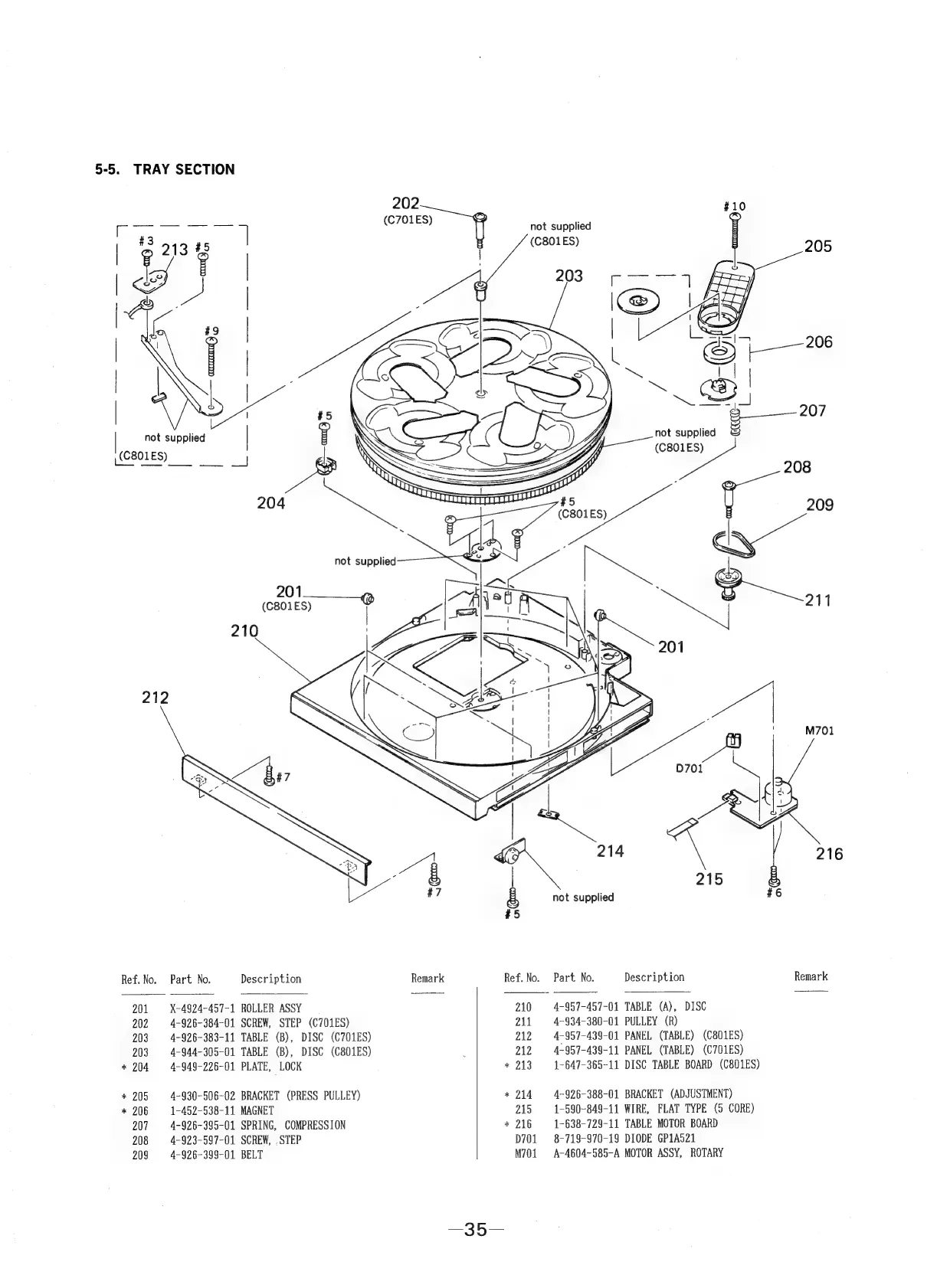

5-5. TRAY SECTION
202
#10
Do
4s
ete
ct
ane
not
supplied
#3 913 45 (C801ES)
is
| .
203
not supplied &
(C801ES)
not supplied
\(ca0lEs)
201_ @
(C801ES) |
210
212
not supplied
#5
Ref.
No.
Part
No.
Description
Remark
Ref.
No.
Part
No.
Description
Remark
201 X-4924-457-1 ROLLER ASSY 210 4-957-457-01 TABLE (A), DISC
202 4-926-384-01 SCREW, STEP (C701ES) 211 4-934-380-01 PULLEY (R)
203 4-926-383-11 TABLE (B), DISC (C701ES) 212 4-957-439-01 PANEL (TABLE) (C801ES)
203 4-944-305-01 TABLE (B), DISC (C801ES) f 212 4-957-439-11 PANEL (TABLE) (C701ES)
*
204
4-949-226-01
PLATE,
LOCK
*
213
1-647-365-11
DISC
TABLE
BOARD
(C801ES)
* 205 4-930-506-02 BRACKET (PRESS PULLEY) * 214 4-926§-388-01 BRACKET (ADJUSTMENT)
*
206
1-452-538-11
MAGNET
215
1-590-849-11
WIRE,
FLAT
TYPE
(5
CORE)
207 4-926-395-01 SPRING, COMPRESSION * 216 1-638-729-11 TABLE MOTOR BOARD
208 4-923-597-01 SCREW, .STEP D701 8-719-970-19 DIODE GPiA521
209 4-926-399-01 BELT M701 A-4604-585-A MOTOR ASSY, ROTARY
