Sony CDP-C701ES - Exploded Views; Cabinet Section Views

NOTE:
@ The mechanical parts with no reference
number in the exploded views are not
supplied.
@ items marked ”*” are not stocked since
they are seldom required for routine service
Some delay should be anticipated
when ordering these items.

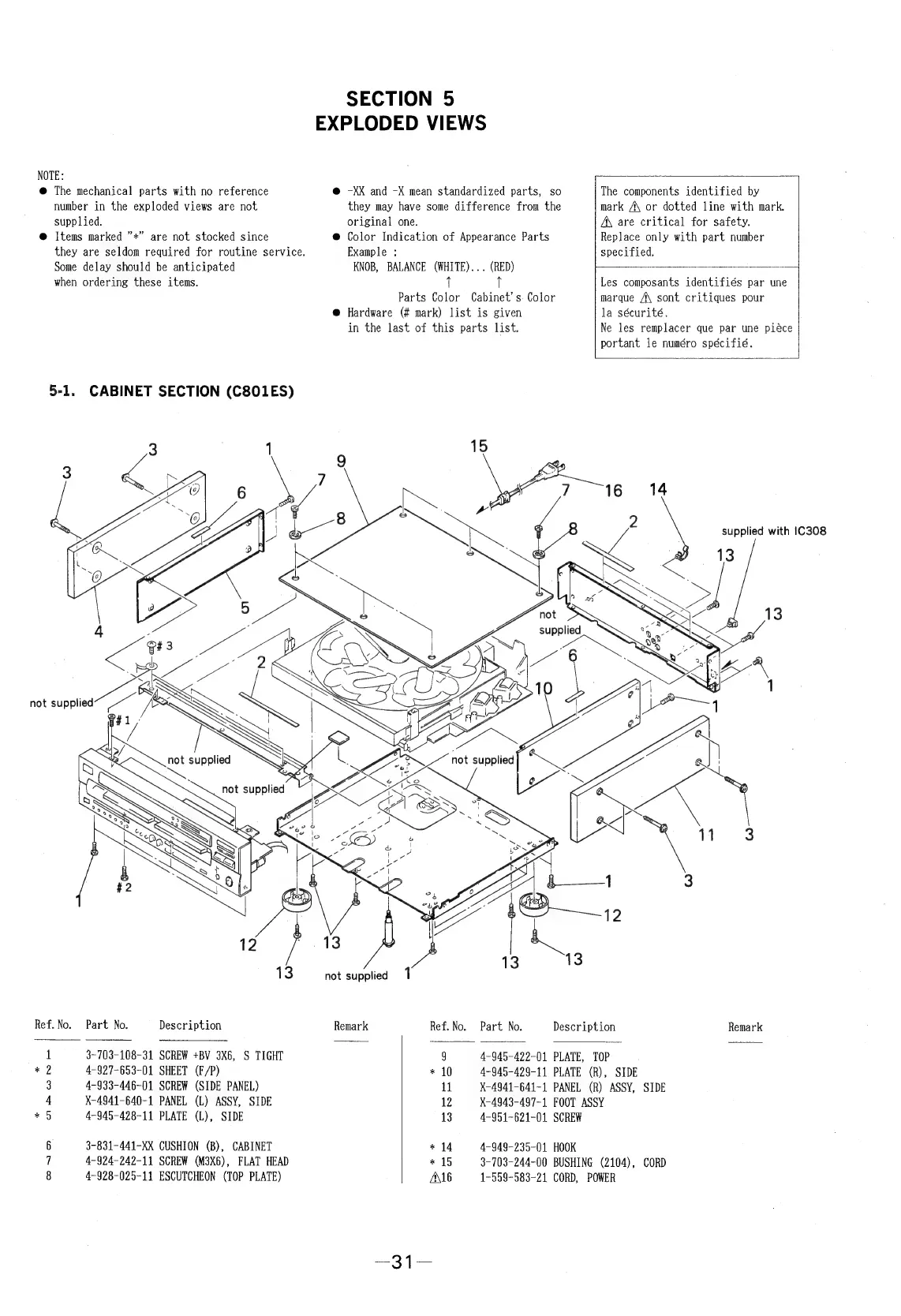

5-1. CABINET SECTION (C801ES)
not supplied
Ref. No. Part No. Description
3-703-108-31 SCREW +BV 3X6, S TIGHT
4-927-653-01 SHEET (F/P)
4-933-446-01 SCREW (SIDE PANEL)
X-4941-640-1 PANEL (L) ASSY, SIDE
4-945-428-11 PLATE (L), SIDE
ol mm cw PS Re
3-831-441-XX CUSHION (B), CABINET
4~924-242-11 SCREW (M3X6), FLAT HEAD
8 4~928-025-11 ESCUTCHEON (TOP PLATE)
“sm
SECTION 5
EXPLODED VIEWS
@ -XX and -X mean standardized parts, so
they may have some difference from the
original one.
@ Color Indication of Appearance Parts
Example :
KNOB, BALANCE (WHITE)... (RED)
t t
Parts Color Cabinet’ s. Color
@ Hardware (# mark) list is given
in the last of this parts list.
not supplied 1
Remark Ref. No. Part No.
The components identified by
mark A\ or dotted line with mark.
A\ are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque /\ sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
Description
Remark
* 14 4-949-235-01 HOOK
* 15 3-703-244-00 BUSHING (2104), CORD
AME 1-559-583-21 CORD, POWER
9 4-945-422-01 PLATE, TOP
* 10 4-945-429-11 PLATE (R), SIDE
11 X-4941-641-1 PANEL (R) ASSY, SIDE
12 X-4943-497-1 FOOT ASSY
13 4-951-621-01 SCREW
supplied with 1C308
