Sony CDP-C701ES - Chassis and Tray Sections

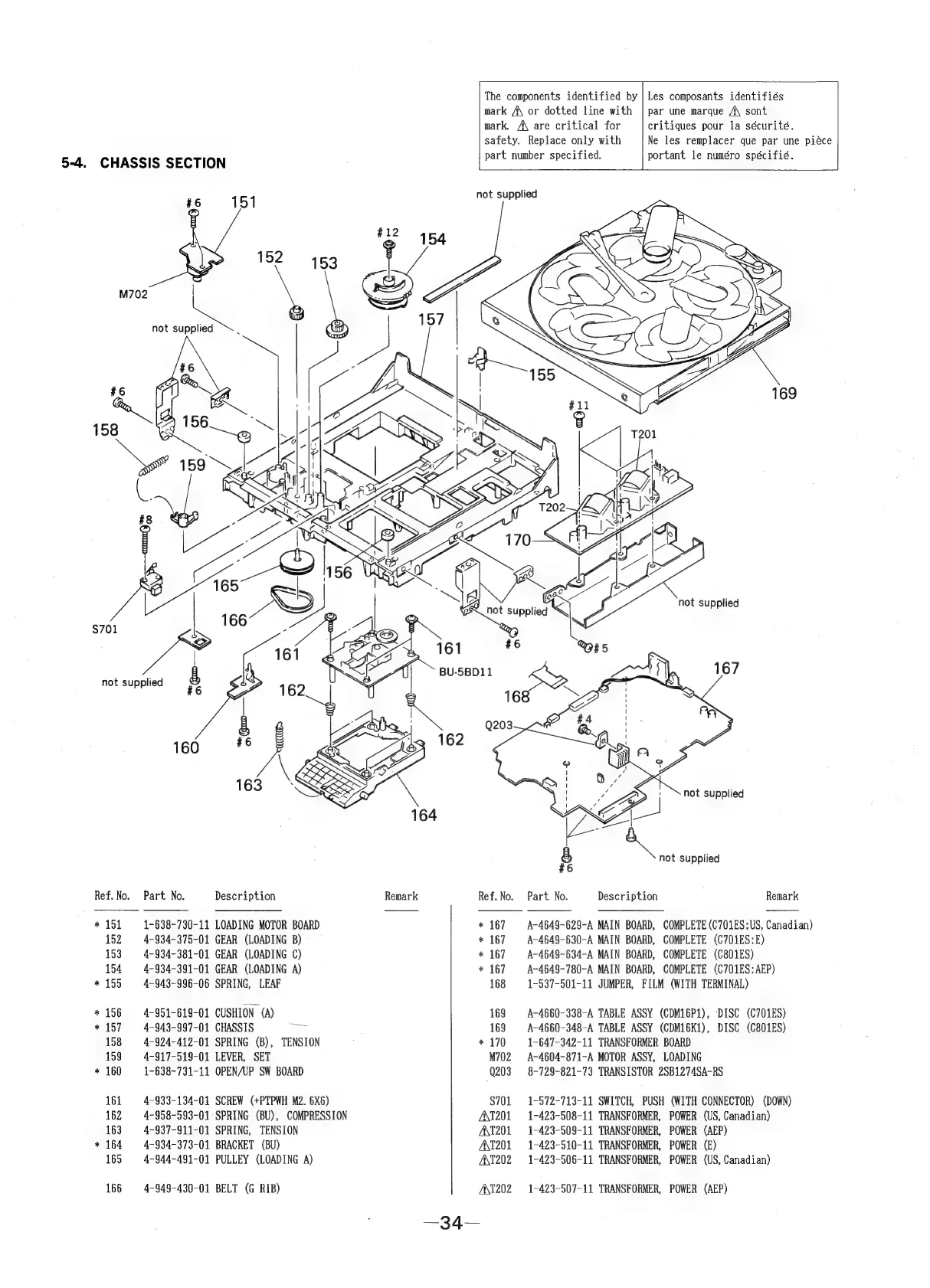

5-4. CHASSIS SECTION
Ref. No.
*
M702 Lo
not supplied :
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
#6 151
Part No. Description Remark
1-638-730-11 LOADING MOTOR BOARD
4-934-375-01 GEAR (LOADING B)
4-934-381-01 GEAR (LOADING C)
4-934-391-01 GEAR (LOADING A)
4-943-996-06 SPRING, LEAF
4-951-619-01 CUSHION (A)
4-943-997-01 CHASSIS
4-924-412-01 SPRING (B), TENSION
4-917-519-01 LEVER, SET
1-638-731-11 OPEN/UP SW BOARD
—
4-933-134-01 SCREW (+PTPWH M2. 6X6)
4-958-593-01 SPRING (BU), COMPRESSION
4-937-$11-01 SPRING, TENSION
4-934-373-01 BRACKET (BU)
4-944-491-01 PULLEY (LOADING A)
4-949-430-01 BELT (G RIB)
The components identified by | Les composants identifiés
mark A\ or dotted line with
mark. A\ are critical for
safety. Replace only with
part number specified
par une marque /A\ sont
critiques pour la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
not supplied
Ref. No.
oa
cnet
#6
Part No. Description Remark
167
167
167
167
168
* & & &
169
169
* 170
M702
Q203
$701
ANT201
ANT201
ANT201
ANT202
ANT202
A-4649-629-A MAIN BOARD, COMPLETE (C701ES:US, Canadian)
A-4649-630-A MAIN BOARD, COMPLETE (C701ES:E)
A-4649-634-A MAIN BOARD, COMPLETE (C801ES)
A-4649-780-A MAIN BOARD, COMPLETE (C701ES: AEP)
1-537-501-11 JUMPER, FILM (WITH TERMINAL)
A-4660-338-A TABLE ASSY (CDM16P1), DISC (C701ES)
A-4660-348-A TABLE ASSY (CDM16K1), DISC (C801ES)
1-647-342-11 TRANSFORMER BOARD
A-4604-871-A MOTOR ASSY, LOADING
8-729-821-73 TRANSISTOR 2SB1274SA-RS
1-572-713-11 SWITCH, PUSH (WITH CONNECTOR) (DOWN)
1-423-508-11 TRANSFORMER, POWER (US, Canadian)
1-423-509-11 TRANSFORMER, POWER (AEP)
1-423-510-11 TRANSFORMER, POWER (E)
1-423-506-11 TRANSFORMER, POWER (US, Canadian)
1-423-507-11 TRANSFORMER, POWER (AEP)
