Sony CDP-C701ES - Front Panel Section

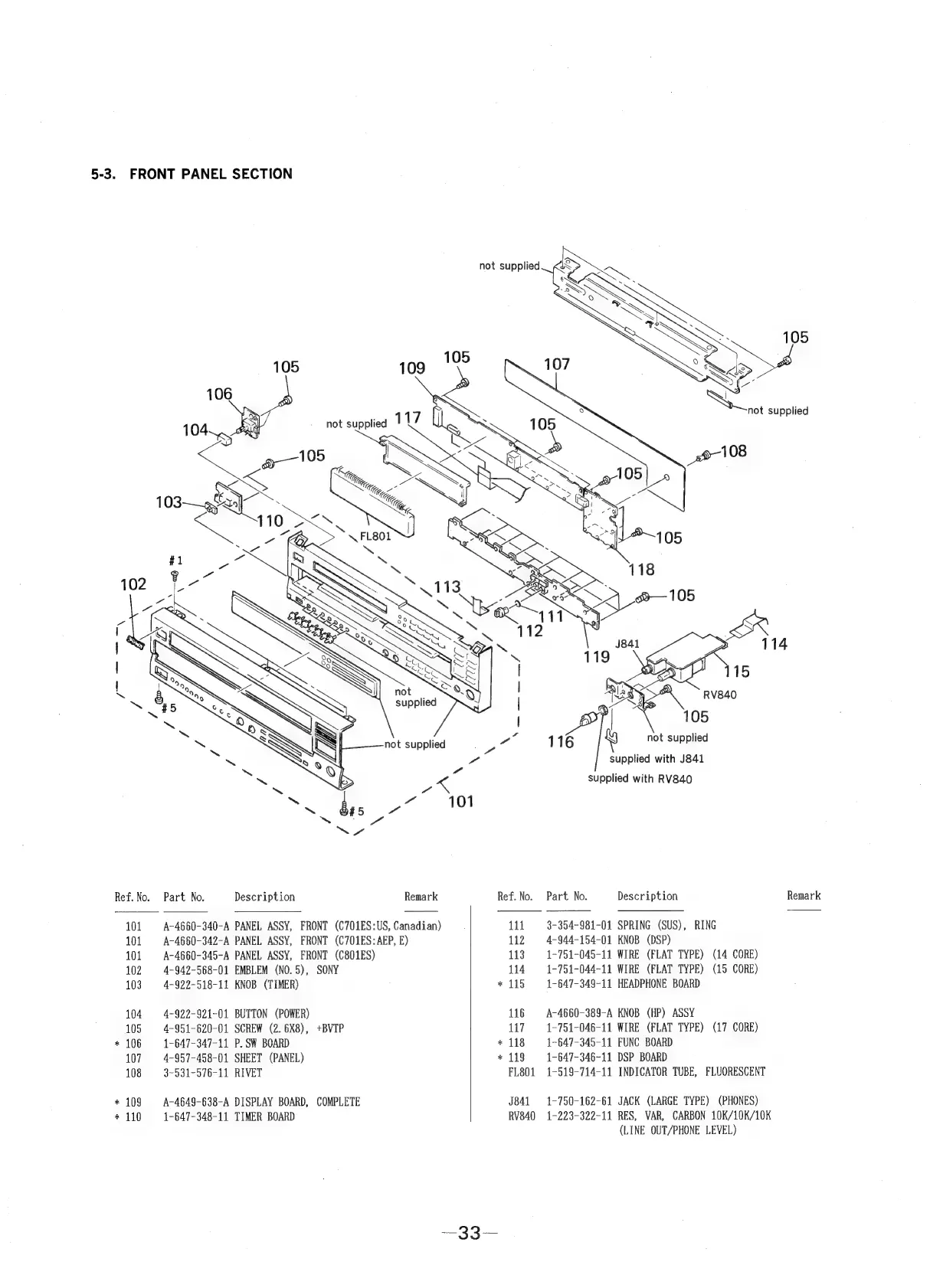

5-3. FRONT PANEL SECTION
Remark
FRONT (C701ES:US, Canadian)
FRONT (C701ES: AEP, E)
FRONT (C801ES)
Ref. No. Part No. Description
101 A-4660-340-A PANEL ASSY,
101 A-4660-342-A PANEL ASSY,
101 A-4660-345-A PANEL ASSY,
102 4-942-568-01 EMBLEM (NO.5), SONY
103 4-922-518-11 KNOB (TIMER)
104 4-922-921-01 BUTTON (POWER)
105 4-951-620-01 SCREW (2. 6X8), +BVIP
* 106 1-647-347-11 P. SW BOARD
107 4-957-458-01 SHEET (PANEL)
108 3-531-576-11 RIVET
* 109 A-4649-638-A DISPLAY BOARD, COMPLETE
* 110 {-647-348-11 TIMER BOARD
not supplied
x not supplied
supplied with J841
supplied with RV840
Remark
Ref. No. Part No. Description
111 3-354-981-01 SPRING (SUS), RING
112 4-944-154-01 KNOB (DSP)
113 1-751-045-11 WIRE (FLAT TYPE) (14 CORE)
114 1-751-044-11 WIRE (FLAT TYPE) (15 CORE)
* 115 1-647-349-11 HEADPHONE BOARD
116 A-4660-389-A KNOB (HP) ASSY
117 1-751-046-11 WIRE (FLAT TYPE) (17 CORE)
* 118 1-647-345-11 FUNC BOARD
* 119 1-647-346-11 DSP BOARD
FL801 1-519-714-11 INDICATOR TUBE, FLUORESCENT
J841 1-750-162-61 JACK (LARGE TYPE) (PHONES)
RV840
1-223-322-11 RES, VAR, CARBON 10K/10K/10K
(LINE OUT/PHONE LEVEL)
