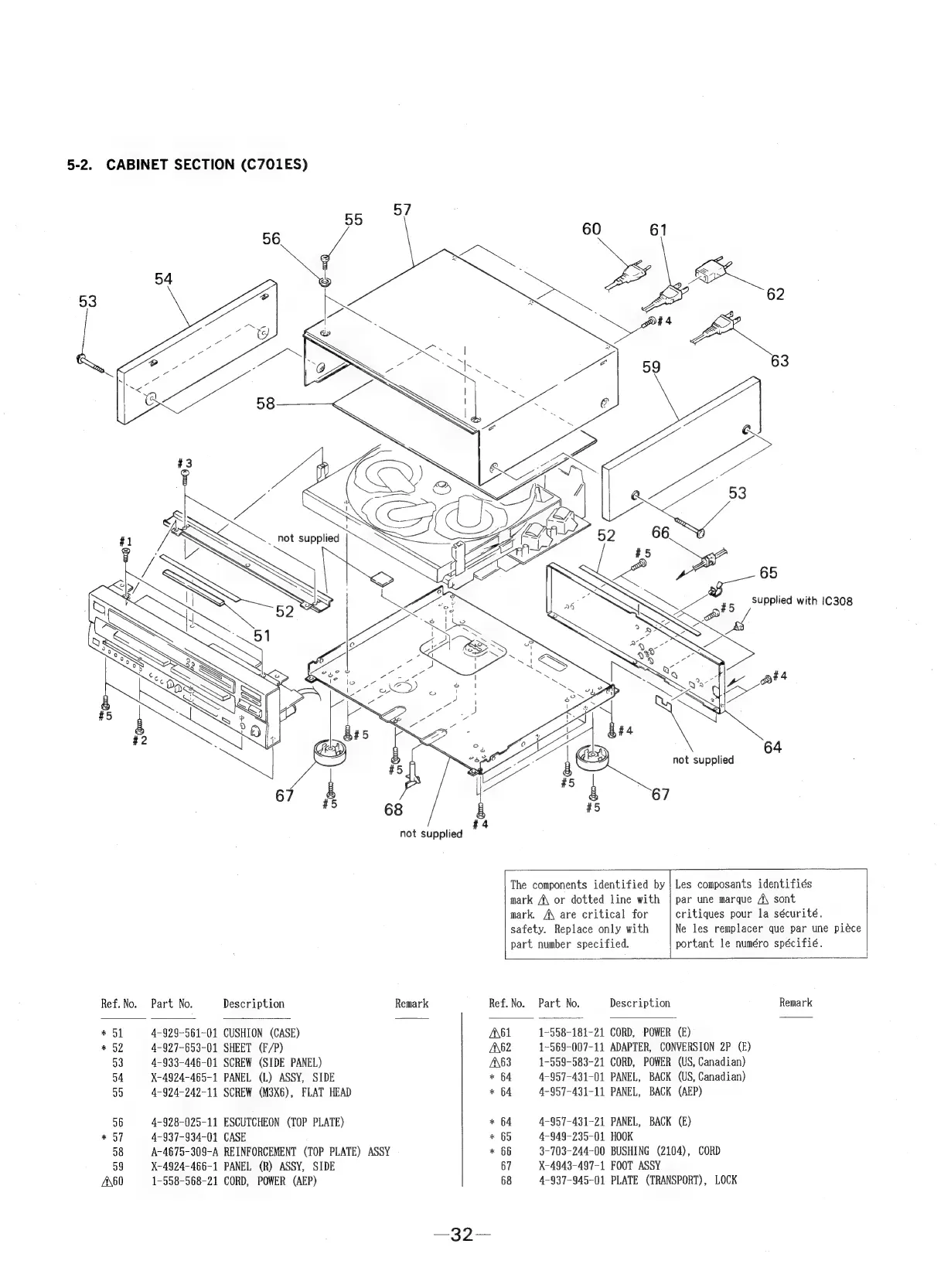

5-2. CABINET SECTION (C701ES)
Ref. No. Part No. Description
*
a1 4-929-561-01 CUSHION (CASE)
52 4-927-653-01 SHEET (F/P)
93 4-933-446-01 SCREW (SIDE PANEL)
94 X-4924-465-1 PANEL (L) ASSY, SIDE
39 4-924-242-11 SCREW (M3X6), FLAT HEAD
*
36 4-928-025-11 ESCUTCHEON (TOP PLATE)
* 57 4-937-934-01 CASE
38 A-4675-309-A REINFORCEMENT (TOP PLATE) ASSY
59 X-4924-466-1 PANEL (R) ASSY, SIDE
A\60 1-558-568-21 CORD, POWER (AEP)
Remark
not supplied
not supplied
The components identified by | Les composants identifies
mark A\ or dotted line with
mark. A\ are critical for
safety. Replace only with
part number specified.
par une marque A\ sont
critiques pour la sécurité.
portant le numéro spécifié.
Ref. No.
Part No. Description Remark
Ab1
1-558-181-21 CORD, POWER (E)
1-569-007-11 ADAPTER, CONVERSION 2P (E)
1-559-583-21 CORD, POWER (US, Canadian)
4-957-431-01 PANEL, BACK (US, Canadian)
4-957-431-11 PANEL, BACK (AEP)
4-957-431-21 PANEL, BACK (E)
4-949-235-01 HOOK
3-703-244-00 BUSHING (2104), CORD
X-4943-497-1 FOOT ASSY
4-937-945-01 PLATE (TRANSPORT), LOCK
Ne les remplacer que par une piéce
