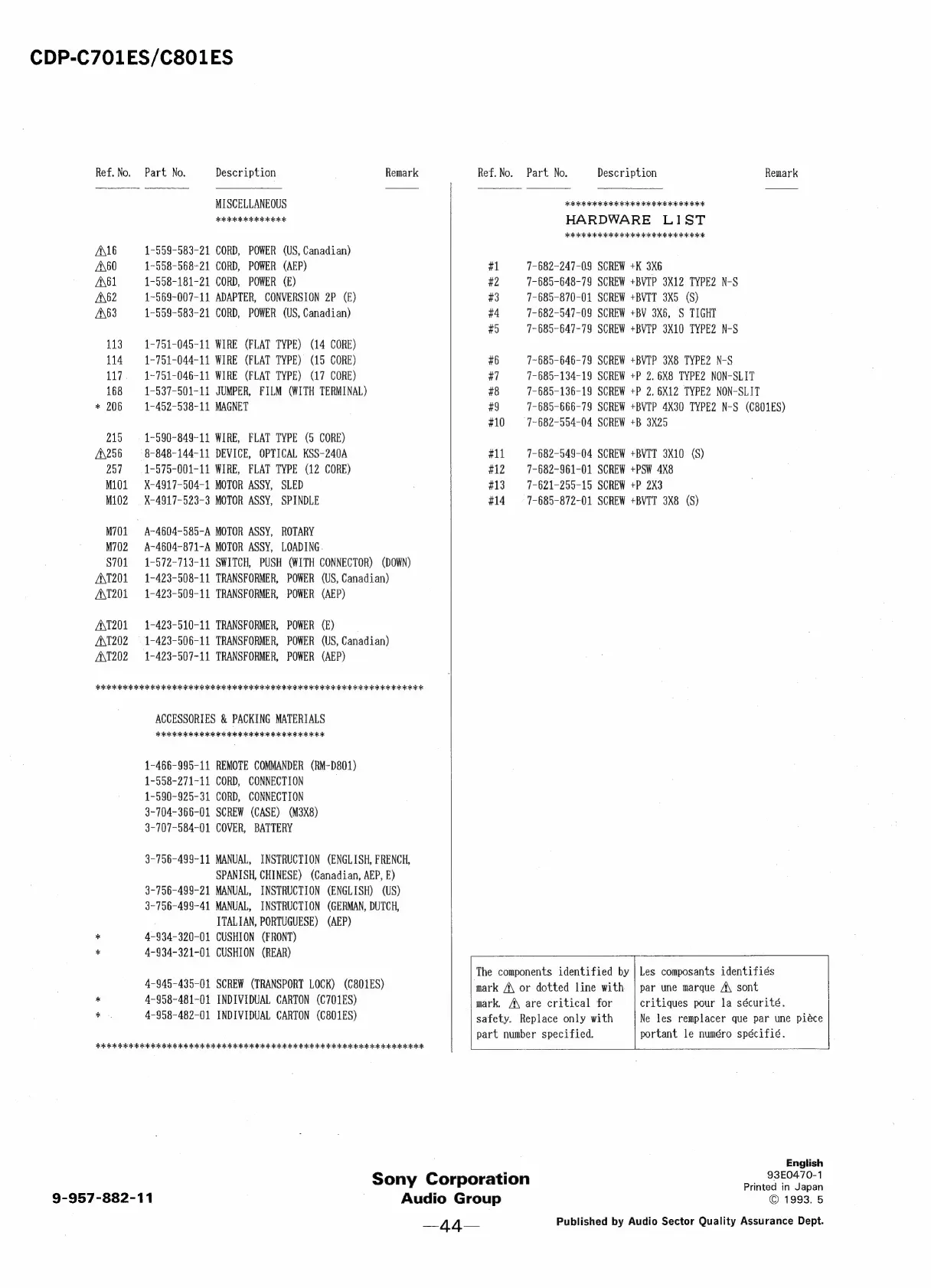

CDP-C701ES/C801ES
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
MISCELLANEOUS Jolooiolojoioisiokioiofaioiok jkok kokok kok kok
Jeidoioioiioiok otek HARDWARE LIST
SR CR Ro ook ek ok eb tok
AX16 1-559-583-21 CORD, POWER (US, Canadian)
A\60 1-558-568-21 CORD, POWER (AEP) #1 7-682-247-09 SCREW +K 3X6
Aol 1-558-181-21 CORD, POWER (E) #2 7-685-648-79 SCREW +BVIP 3X12 TYPE2 N-S
A\b2 1-569-007-11 ADAPTER, CONVERSION 2P (E) #3 7-685-870-01 SCREW +BVIT 3X5 (S)
Ab3 1-559-583-21 CORD, POWER (US, Canadian) #4 7-682-547-09 SCREW +BV 3X6, S TIGHT
#5 7-685~647-79 SCREW +BVTP 3X10 TYPE2 N-S
113 1-751-045-11 WIRE (FLAT TYPE) (14 CORE)
114. 1-751-044-11 WIRE (FLAT TYPE) (15 CORE) #6 7-685-646-79 SCREW +BVIP 3X8 TYPE2 N-S
117. 1-751-046-11 WIRE (FLAT TYPE) (17 CORE) #7 7-685-134-19 SCREW +P 2. 6X8 TYPE2 NON-SLIT
168 1-537-501-11 JUMPER, FILM (WITH TERMINAL) #8 7-685-136-19 SCREW +P 2. 6X12 TYPE2 NON-SLIT
* 206 1-452-538-11 MAGNET #9 7-685-666-79 SCREW +BVIP 4X30 TYPE2 N-S (C801ES)
#10 = 7~682-554-04 SCREW +B 3X25
215 = 1-590-849-11 WIRE, FLAT TYPE (5 CORE)
A256 ~=—- 8-8 48-144-11 DEVICE, OPTICAL KSS-240A #11 7-682-549-04 SCREW +BVIT 3X10 (S)
257 = 1-575-001-11 WIRE, FLAT TYPE (12 CORE) #12 —7-682-961-01 SCREW +PSW 4X8
M101 X-4917-504-1 MOTOR ASSY, SLED #13) 7-621-255-15 SCREW +P 2X3
M102 = X-4917-523-3 MOTOR ASSY, SPINDLE #14 = 7-685-872-01 SCREW +BVIT 3X8 (S)
M701 = A-4604-585-A MOTOR ASSY, ROTARY
M702 A~-4604-871-A MOTOR ASSY, LOADING.
S701 1-572-713-11 SWITCH, PUSH (WITH CONNECTOR) (DOWN)
A\T201_ —-1-423-508-11 TRANSFORMER, POWER (US, Canadian)
A\T201 —-1-423-509-11 TRANSFORMER, POWER (AEP)
A\T201 — 1-423-510-11 TRANSFORMER, POWER (E)
A\T202 =: 1-423-506-11 TRANSFORMER, POWER (US, Canadian)
A\T202 = 1-423-507-11 TRANSFORMER, POWER (AEP)
Jebotoloioio ioioioiotol dol go io o ioi Gp a GROG OGG a RG OGRE
ACCESSORIES & PACKING MATERIALS
FC okotokok dodoiokok ok ak fk kk gk kok fk ook
1-466-995-11 REMOTE COMMANDER (RM-D801)
1-558-271-11 CORD, CONNECTION
1-590-925-31 CORD, CONNECTION
3-704-366-01 SCREW (CASE) (M3X8)
3-707-584-01 COVER, BATTERY
3-756-499-11 MANUAL, INSTRUCTION (ENGLISH, FRENCH,
SPANISH, CHINESE) (Canadian, AEP, E)
3-756-499-21 MANUAL, INSTRUCTION (ENGLISH) (US)
3-756-499-41 MANUAL, INSTRUCTION (GERMAN, DUTCH,
ITALIAN, PORTUGUESE) (AEP)
* 4-934-320-01 CUSHION (FRONT)
* 4-934-321-01 CUSHION (REAR)
The components identified by Les composants identifiés
4-945-435-01 SCREW (TRANSPORT LOCK) (C801ES) mark A\ or dotted line with | par une marque A\ sont
- 4-958-481-01 INDIVIDUAL CARTON (C701ES) mark. A\ are critical for critiques pour la sécurité.
os 4-958-482-01 INDIVIDUAL CARTON (C801ES) safety. Replace only with Ne les remplacer que par une piéce
part number specified. portant le numéro spécifié.
AO Ro kk oo ok ok koko RR RE RK KEK EK
, English
=
93E0470-1
Sony Corporation Printed in Japan
9-957-882-11 Audio Group © 1993. 5
—44— Published by Audio Sector Quality Assurance Dept.
