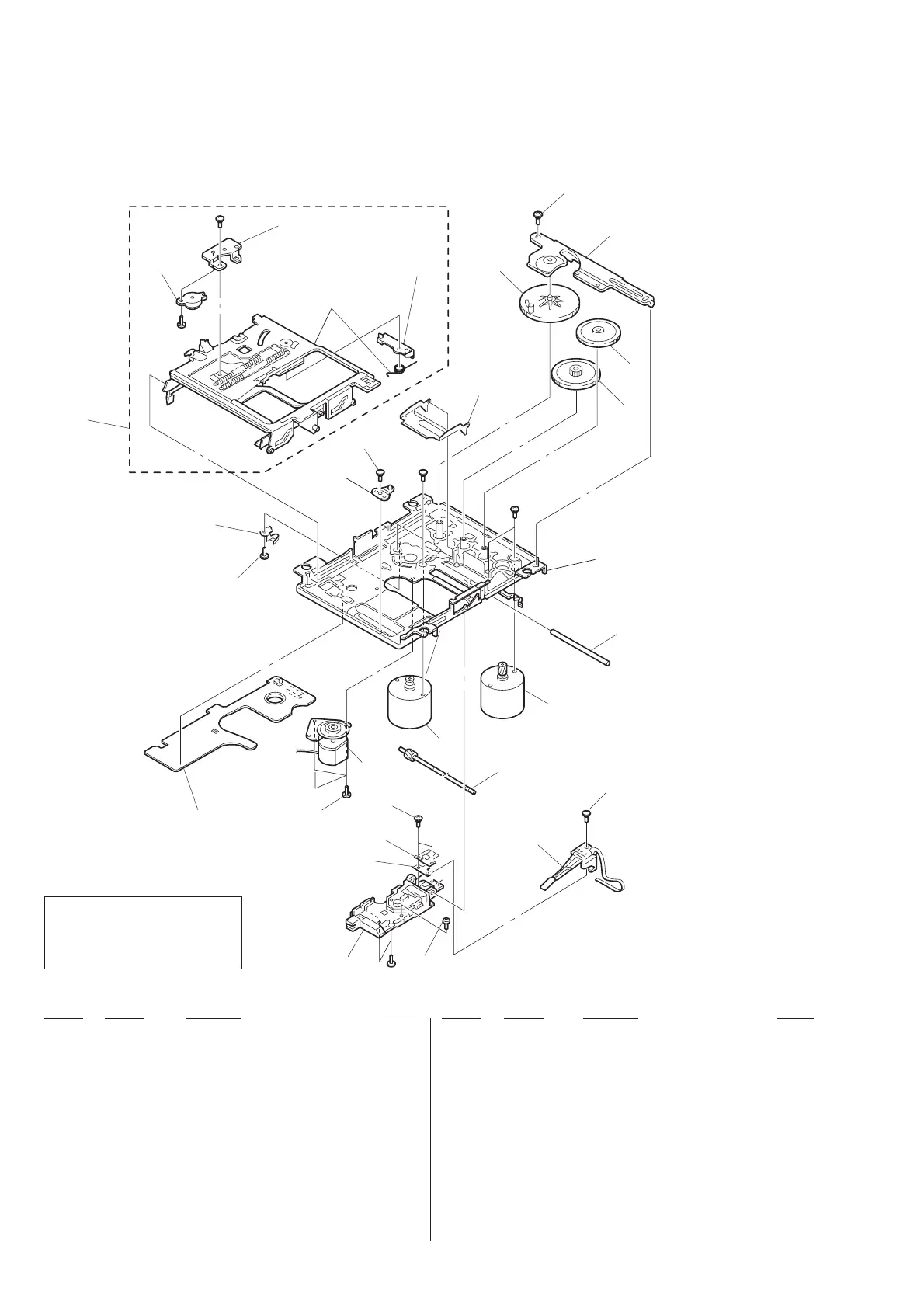

(3) MECHANISM DECK SECTION-2
(MDM-3A)
not supplied
#3
not supplied
105
#3
109
108
104
#2
105
106
107
110
not supplied
103
101
111
105
113
#4
117
120
118
115
112
119
HR901
116
M903
105
M901
101 A-4672-138-A SLIDER COMPLETE ASSY
* 102 4-983-439-01 BRACKET (DAMPER)
103 3-953-235-01 DAMPER, OIL
* 104 4-983-437-01 SLIDER (CAM)
105 3-342-375-11 SCREW (M1.7X1.4), SPECIAL
106 4-979-890-11 RETAINER (GEAR)
107 4-979-898-01 GEAR (LB)
108 4-979-899-01 GEAR (LC)
109 4-979-897-01 GEAR (LA)
110 4-979-885-01 LEVER (HEAD UP)
111 4-979-906-11 SPRING (LEAD SCREW)
112 4-984-556-01 SHAFT (MAIN SHAFT)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
* 113 1-661-774-11 SW BOARD
114 A-3304-200-A SCREW ASSY, LEAD
115 4-963-914-02 RACK (INSERTER)
116 3-366-890-11 SCREW (M1.4)
¡ 117 8-583-028-02 OPTICAL PICK-UP KMS-260A/J1N
118 4-987-061-01 SPACER (RACK)
119 4-988-560-01 SCREW (+P 1.7X6)
120 4-955-841-11 SCREW
HR901 1-500-396-11 HEAD, OVER WRITE
M901 A-4672-135-A MOTOR ASSY, SPINDLE
M902 A-4672-133-A MOTOR ASSY, SLED
M903 A-4672-134-A MOTOR ASSY, LOADING
The components identified by mark
! or dotted line with mark ! are
critical for safety.
Replace only with part number
specified.
