– 22 –
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearrance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
• Abbreviation
HK : Hong Kong
SP : Singapore
(1) CASE, FRONT PANEL SECTION
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Hardware (# mark) list are given in the last of
the electrical parts list.
SECTION 4

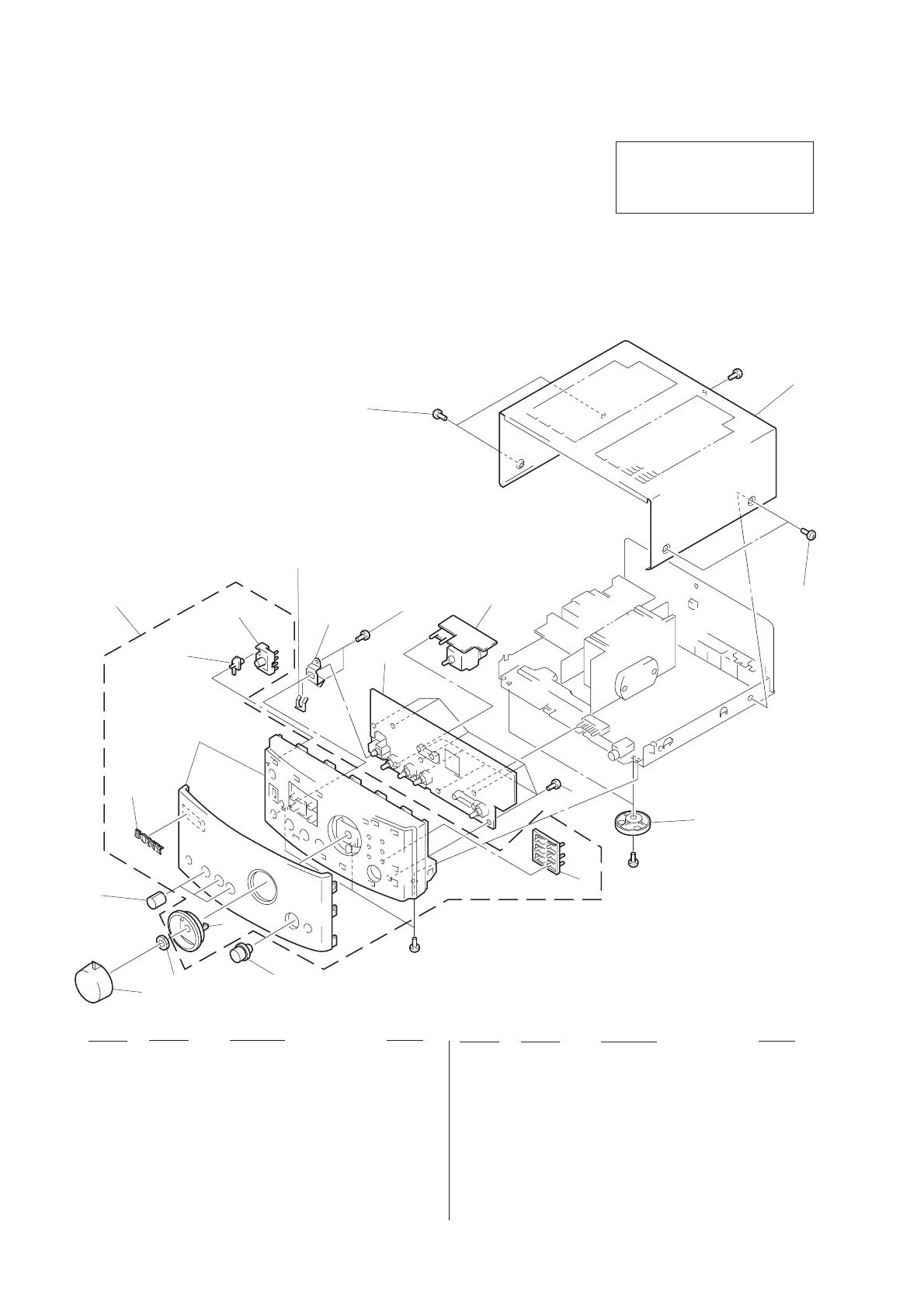

EXPLODED VIEWS
The components identified by mark
! or dotted line with mark ! are
critical for safety.
Replace only with part number
specified.
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 4-985-925-01 KNOB (JOG)
2 X-4947-837-1 KNOB (VOL) ASSY
3 4-985-926-01 KNOB
4 X-4947-655-1 PANEL ASSY, FRONT (EX77: SP, HK)
4 X-4948-359-1 PANEL ASSY, FRONT (EX66)
4 X-4948-436-1 PANEL ASSY, FRONT (EX77: AEP, UK)
5 4-985-922-01 RING, ORNAMENTAL
6 4-962-708-01 EMBLEM (4-A), SONY
7 4-985-918-01 INDICATOR (POWER)
8 4-985-917-01 BUTTON (POWER)
9 4-985-920-01 INDICATOR (6)
* 10 A-4398-059-A PANEL BOARD, COMPLETE (AEP, UK)
* 10 A-4398-061-A PANEL BOARD, COMPLETE (SP, HK)
11 4-951-620-01 SCREW (2.6X8), +BVTP
12 4-977-699-11 LEG (F)
* 13 1-665-663-11 VOL BOARD
14 3-363-099-01 SCREW (CASE 3 TP2)
15 4-978-245-11 CASE
1
2
3
4
5
6
7
8
9
10
12
13
14
15
#1
supplied with J201
supplied
with RV204
not supplied
not supplied
11
11
#1
#2
14
To Next Page
