Hooking Up the System
You can connect the player with analog or digital signal depending on your
amplifier or D/A converter.
Before you begin, remember the following;
* Turn off the power of each unit before making connections.
* Connect the AC power cord last.
* Be sure to insert the plugs firmly into the jacks. Loose connection may cause hum and noise.
* Leave a little slack in the connecting cord to allow for inadvertent shock or vibration.
*
Cord
plugs
and
jacks
are
color
coded:
Red
plugs
and
jacks
are
for
the
right
channel
(R)
and
white
ones
for
the
left
channel
(L).

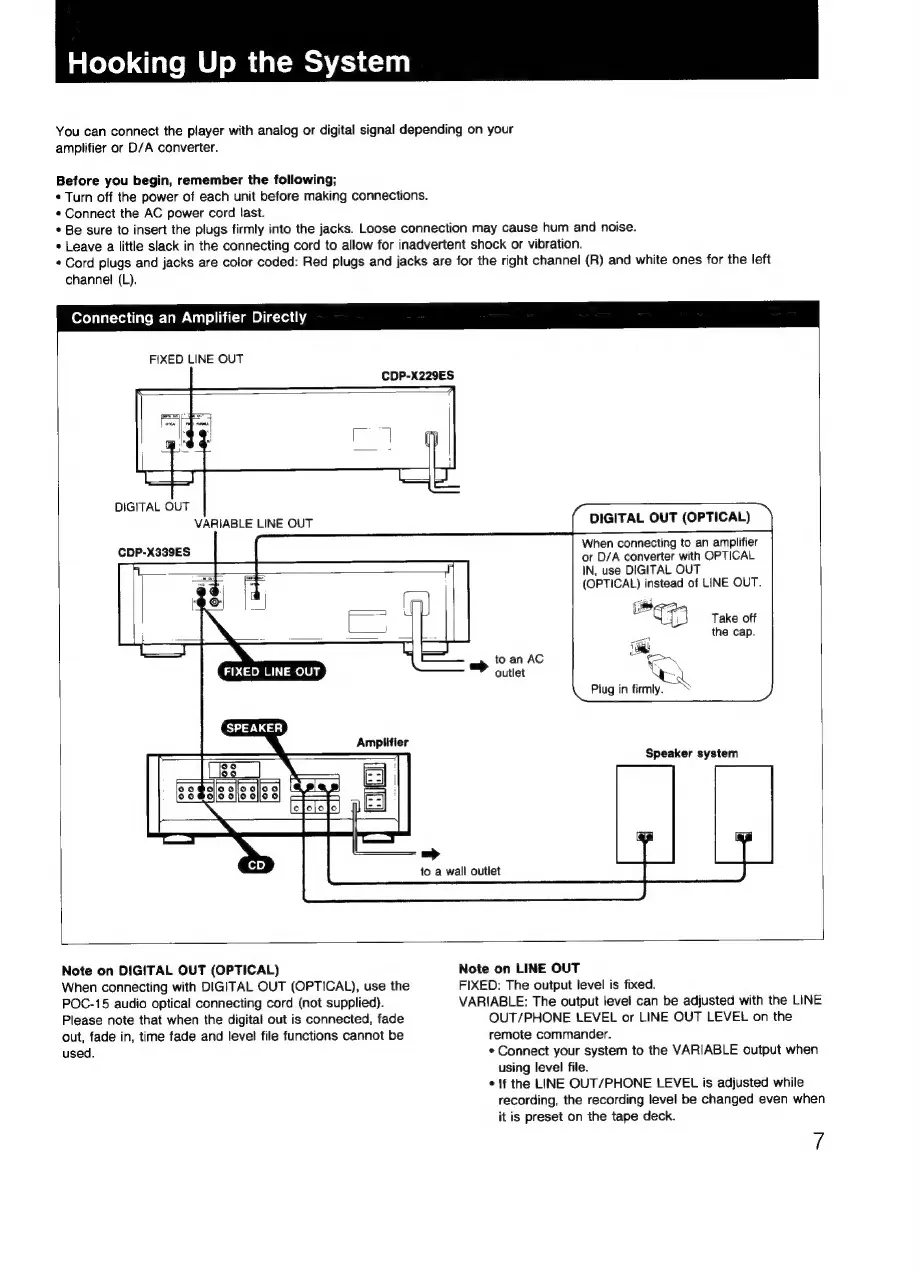

Connecting an Amplifier Directly
FIXED LINE OUT
CDP-X229ES
DIGITAL OUT
VARIABLE
LINE
OUT
DIGITAL
OUT
(OPTICAL)
When connecting to an amplifier
or D/A converter with OPTICAL
bE
IN,
use
DIGITAL
OUT
eo
(OPTICAL)
instead
of
LINE
OUT.
COP-X339ES
{
eo |" | n =»
= PTET tone of
a
:
J
=
the
cap.
a ‘iat
— to an AC a ma
FIXED LINE OUT > outlet QS
Plug in firmly. x
SPEAKER
Amplifier
Speaker system
Cr CT
-»
to a wall outlet
CD
Note on DIGITAL OUT (OPTICAL)
When connecting with DIGITAL OUT (OPTICAL), use the
POC-15 audio optical connecting cord (not supplied).
Please note that when the digital out is connected, fade
out, fade in, time fade and level file functions cannot be
used.
Note on LINE OUT
FIXED: The output level is fixed.
VARIABLE: The output level can be adjusted with the LINE
OUT/PHONE LEVEL or LINE OUT LEVEL on the
remote commander.
* Connect your system to the VARIABLE output when
using level file.
¢{f the LINE OUT/PHONE LEVEL is adjusted while
recording, the recording level be changed even when
it is preset on the tape deck.
