Sony CDP-X339ES - Identifying the Parts

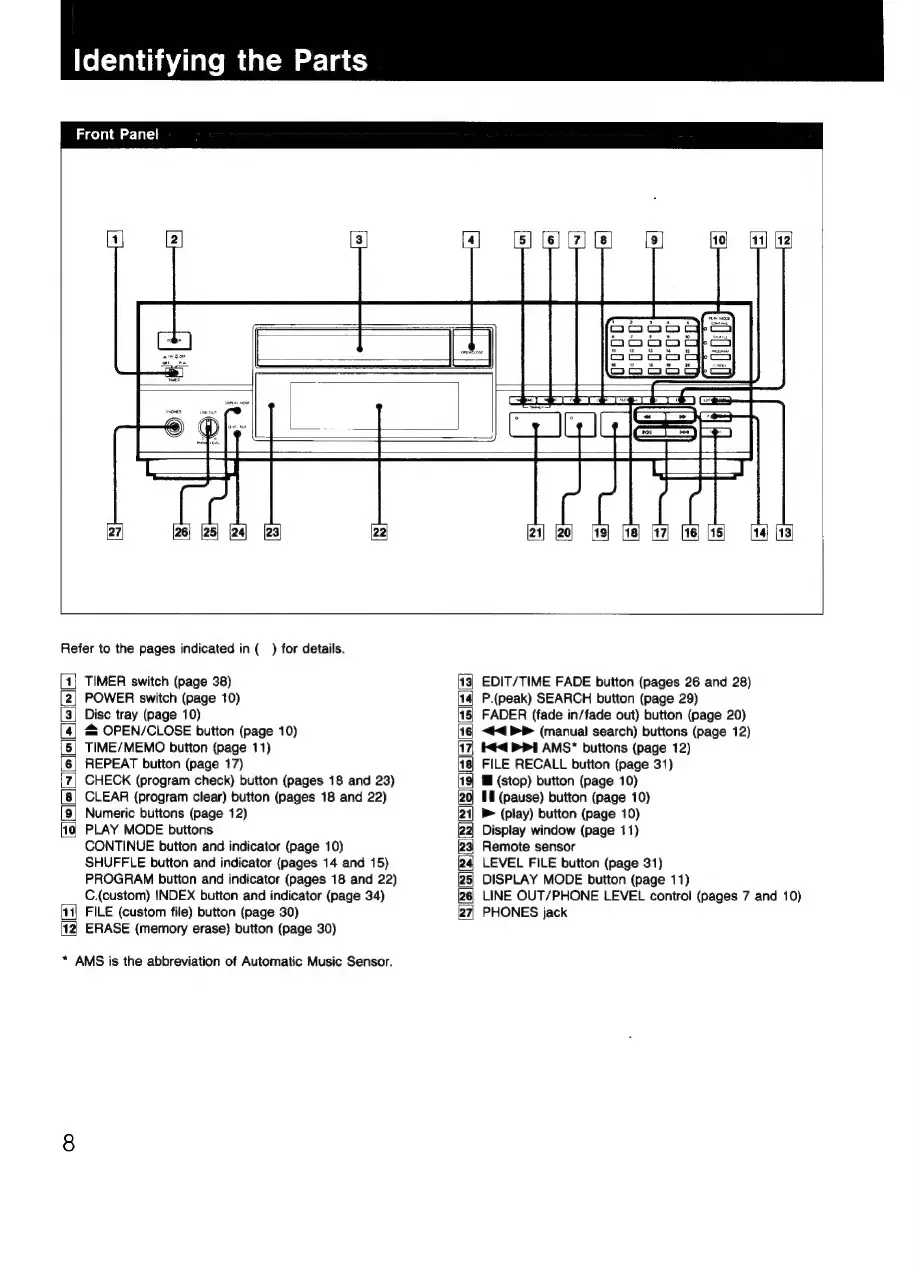

Identifying the Parts
27 26} [25] [24] [29 [22]
Refer to the pages indicated in (_ ) for details.
TIMER switch (page 38)
POWER switch (page 10)
Disc tray (page 10)
& OPEN/CLOSE button (page 10)
TIME/MEMO button (page 11)
REPEAT button (page 17)
CHECK (program check) button (pages 18 and 23)
CLEAR (program clear) button (pages 18 and 22)
Numeric buttons (page 12)
PLAY MODE buttons
CONTINUE button and indicator (page 10)
SHUFFLE button and indicator (pages 14 and 15)
PROGRAM button and indicator (pages 18 and 22)
C.(custom) INDEX button and indicator (page 34)
11} FILE (custom file) button (page 30)
12 ERASE (memory erase) button (page 30)
ABOOSIGCGE OSE
* AMS is the abbreviation of Automatic Music Sensor.
21) (20; |19} [18] |17) |16) [15 14} (13)
EDIT/TIME FADE button (pages 26 and 28)
P.(peak) SEARCH button (page 29)
15} FADER (fade in/fade out) button (page 20)
16) << > (manual search) buttons (page 12)
17} PPI AMS* buttons (page 12)
18} FILE RECALL button (page 31)
19} HI (stop) button (page 10)
Ii (pause) button (page 10)
> (play) button (page 10)
Display window (page 11)
Remote sensor
LEVEL FILE button (page 31)
DISPLAY MODE button (page 11)
LINE OUT/PHONE LEVEL control (pages 7 and 10)
PHONES jack
