— 26 —
SECTION 7
EXPLODED VIEWS
NOTE:
• Items marked “*” are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
• The mechanical parts with no reference number in
the exploded views are not supplied.
• Hardware (# mark) list and accessories and pack-
ing materials are given in the last of this parts list.
• Abbreviation
EE: East European model
Ref. No. Part No. Description Remark
1 4-977-588-51 PANEL, LOADING (XE210)
1 4-977-588-61 PANEL, LOADING (XE310)
2 4-963-404-21 EMBLEM (5-A), SONY
3 4-977-593-01 RING (DIA. 50), ORNAMENTAL
4 4-977-583-01 BUTTON (PLAY)
5 4-977-584-21 BUTTON (TIME)
6 4-977-589-01 BUTTON (POWER)
* 7 1-658-840-21 POWER SW BOARD
8 4-951-620-01 SCREW (2.6X8), +BVTP
9 X-4947-866-1 PANEL ASSY, FRONT (XE210)
9 X-4947-867-1 PANEL ASSY, FRONT (XE310)
* 10 A-4699-465-A PANEL BOARD, COMPLETE
11 4-977-590-01 KNOB (AMS)(FRANCE PRODUCT)
11 4-986-500-01 KNOB (AMS)(HUNGARY PRODUCT)
* 12 4-978-901-21 CASE (408226)
13 3-363-099-01 SCREW (CASE 3 TP2)
! 14 1-575-651-21 CORD, POWER (EXCEPT UK)
! 14 1-696-907-11 CORD, POWER (UK)
15 4-966-267-11 BUSHING (FBS001), CORD
Ref. No. Part No. Description Remark
* 16 4-988-712-01 PANEL, BACK (XE210:AEP,EE,CIS)
(FRANCE PRODUCT)
* 16 4-988-712-11 PANEL, BACK (XE210:UK)(FRANCE PRODUCT)
* 16 4-988-712-21 PANEL, BACK (XE310:AEP,EE,CIS)
(FRANCE PRODUCT)
* 16 4-988-712-31 PANEL, BACK (XE310:UK)(FRANCE PRODUCT)
* 16 4-979-971-51 PANEL, BACK (XE210:AEP,EE,CIS)
(HUNGARY PRODUCT)
* 16 4-979-971-61 PANEL, BACK (XE210:UK)(HUNGARY PRODUCT)
* 16 4-979-971-71 PANEL, BACK (XE310:AEP,EE,CIS)
(HUNGARY PRODUCT)
* 16 4-979-971-81 PANEL, BACK (XE310:UK)(HUNGARY PRODUCT)
17 X-4947-207-1 FOOT ASSY (F50150S)
* 18 4-954-051-51 HOLDER, PC BOARD
* 19 A-4699-464-A MAIN BOARD, COMPLETE
20 1-776-100-11 WIRE (FLAT TYPE)(23 CORE)
21 3-354-981-01 SPRING (SUS), RING (FRANCE PRODUCT)
22 4-956-370-02 BAND, PLUG FIXED (UK)
23 1-776-099-11 WIRE (FLAT TYPE)(21 CORE)
* 24 4-949-235-01 HOOK (EXCEPT UK)(FRANCE PRODUCT)
13
12
#1
16
#1
#1
#1
3
4
not supplied
8
8
23
8
10
7
6
1
17
#1
13
#1
#1
15
#1
(UK)
14
(FRANCE
PRODUCT ONLY)
24
22
#1
19
18
not supplied
CDM14-5BD20
#1
11
21
(FRANCE
PRODUCT ONLY)
20
5
2
9

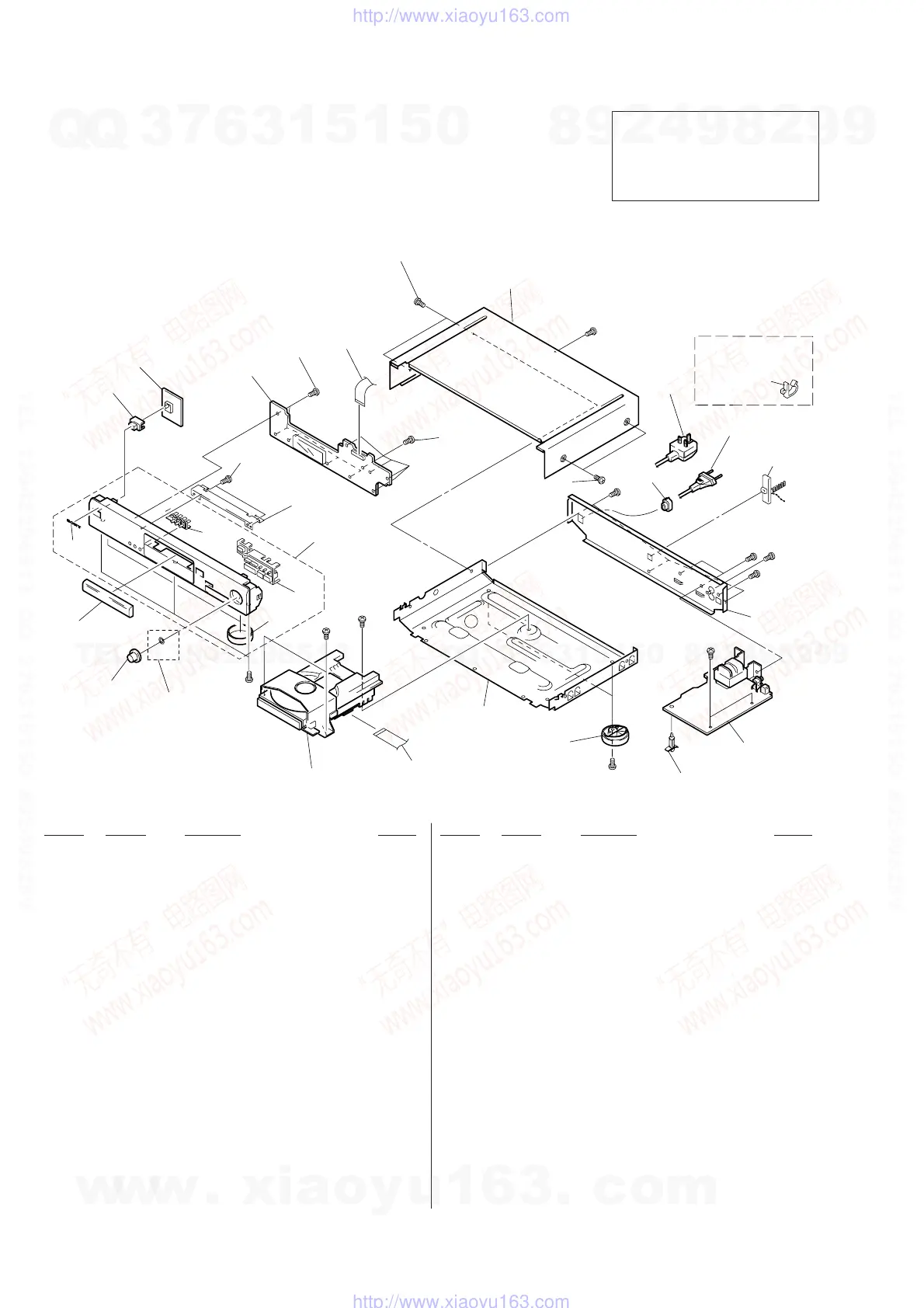

7-1. MAIN SECTION
(EXCEPT UK)
14
The components identified by mark !
or dotted line with mark ! are critical
for safety.
Replace only with part number
specified.
