Sony CDX-616 - Printed Wiring Boards - RF;SW Boards

CDX-616
– 25 –
– 26 –
• Semiconductor
Location
Ref. No. Location
IC11 C-6
IC51 B-7
IC52 G-4
Q11 D-6

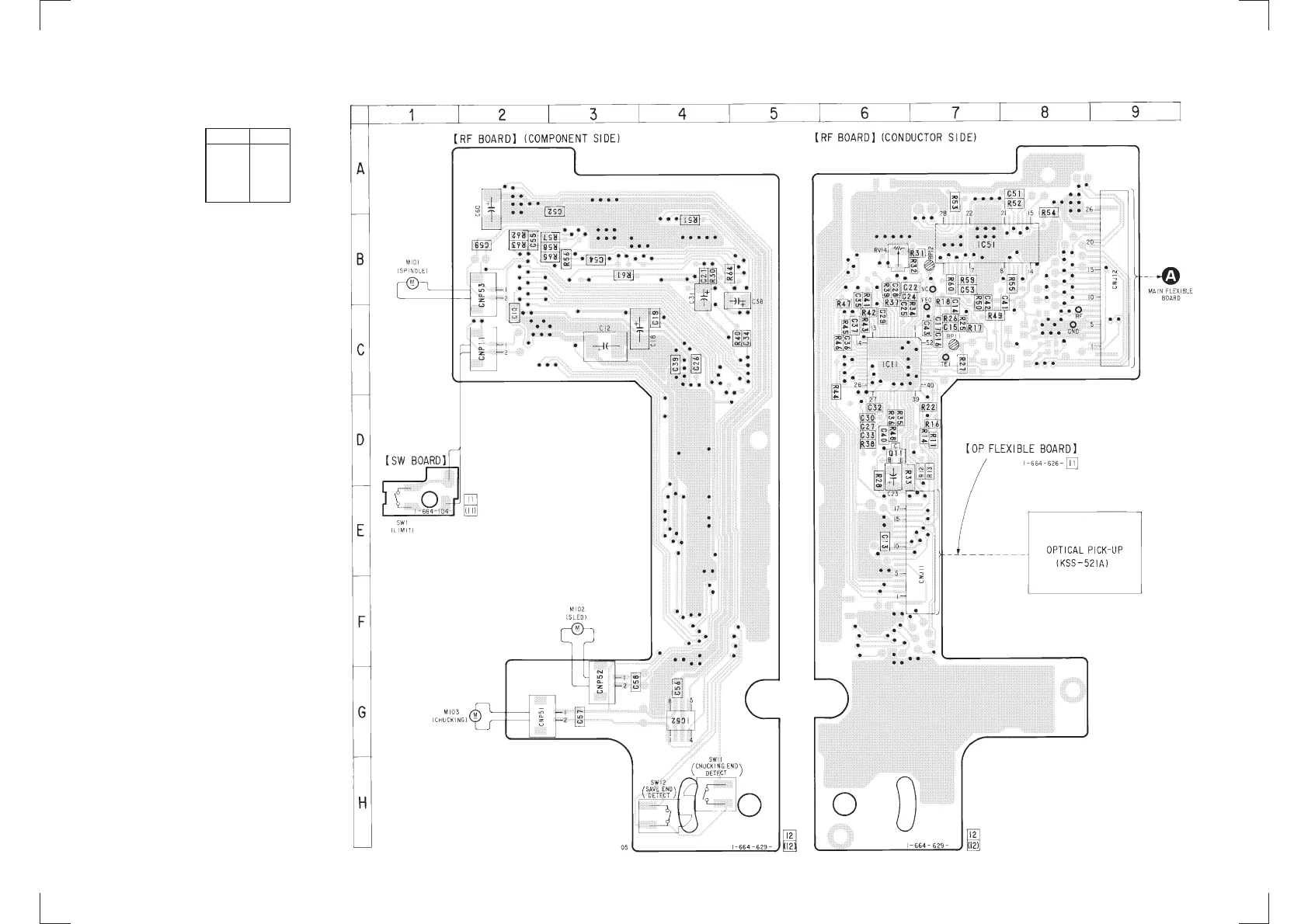

7-4. PRINTED WIRING BOARDS – RF/SW Boards –
(Page 30)
