Sony CDX-616 - Schematic Diagram - RF;SW Boards

CDX-616

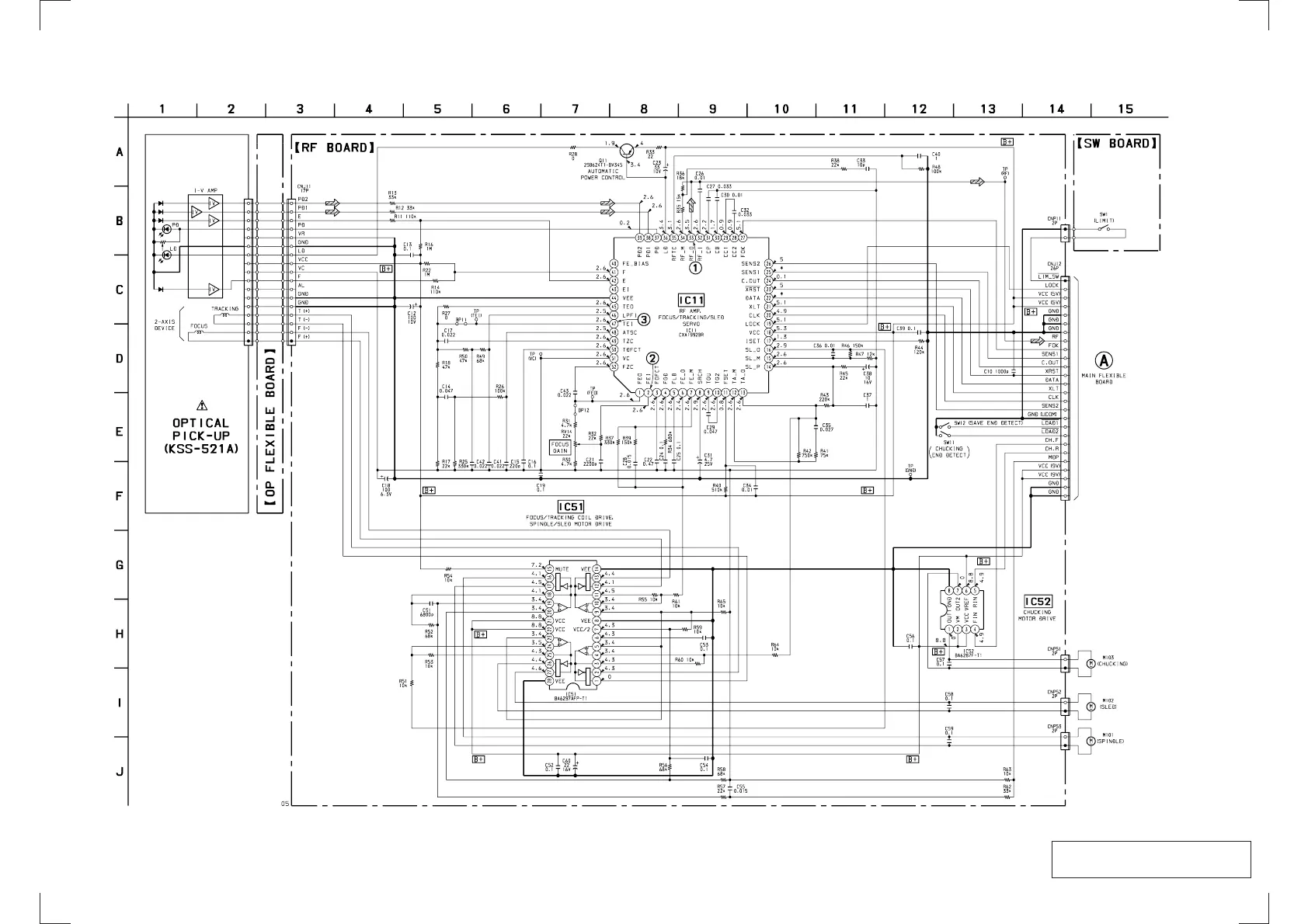

7-5. SCHEMATIC DIAGRAM – RF/SW Boards – • See page 39 for Waveforms. • See page 41 for IC Block Diagrams.
The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.
– 27 –
– 28 –
(Page 33)
