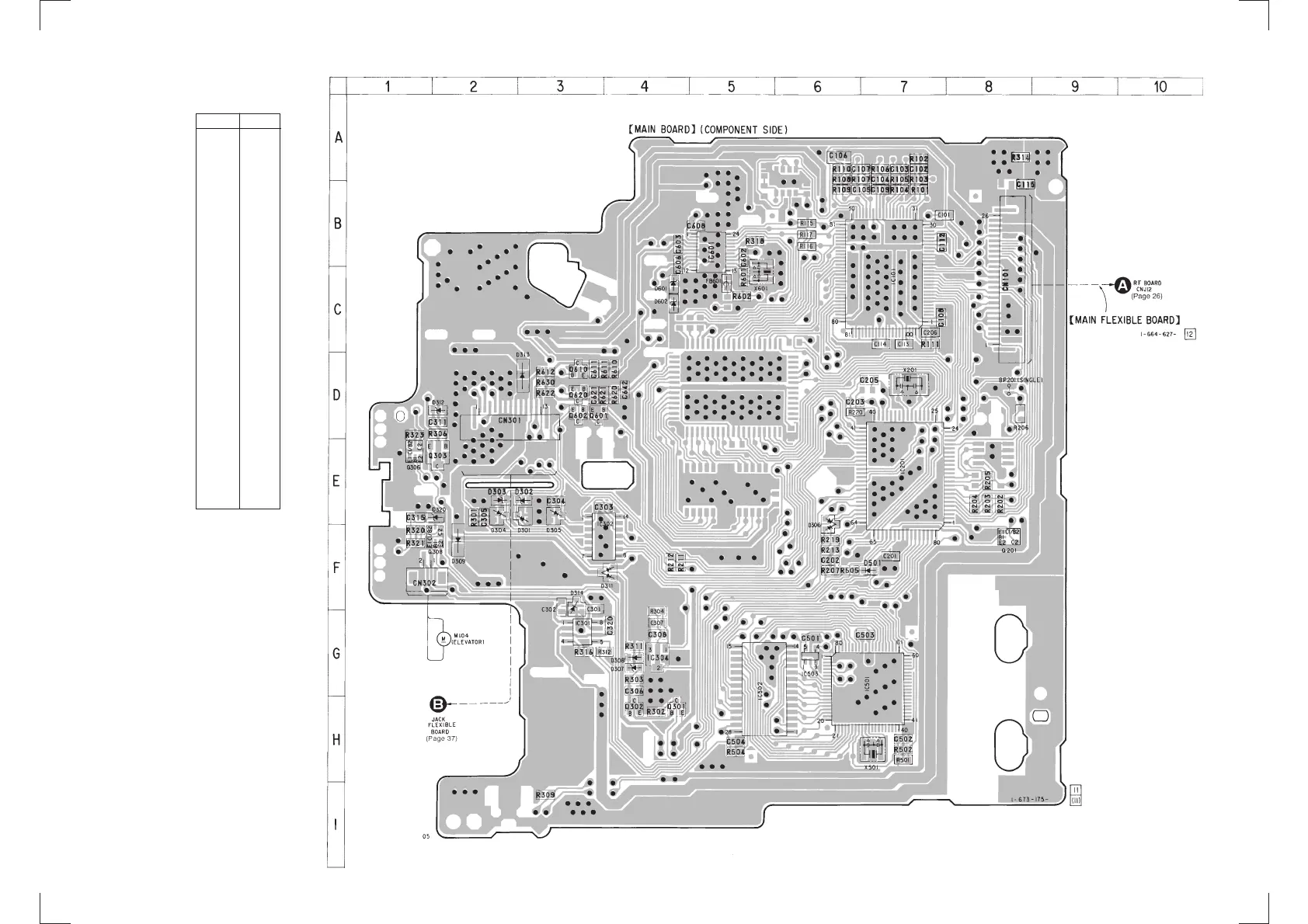

7-6. PRINTED WIRING BOARD – MAIN Board (Component Side) –
• Semiconductor
Location
(Component Side)
Ref. No. Location
D301 E-3
D302 E-3
D303 E-2
D304 E-2
D305 E-3
D306 F-6
D307 G-4
D308 G-4
D309 F-2
D311 F-4
D312 D-2
D313 D-3
D314 F-3
D320 E-2
D501 F-7
D601 C-4
D602 C-4
IC101 C-7
IC201 E-7
IC301 G-3
IC302 F-4
IC304 G-4
IC501 G-7
IC502 G-5
IC503 G-6
IC601 B-5
Q201 F-8
Q301 H-4
Q302 H-4
Q303 E-2
Q306 E-1
Q308 F-2
Q601 D-3
Q602 D-3
Q610 D-3
Q620 D-3
