Sony CDX-616 - Disassembly

– 7 –
Note: Follow the disassembly procedure in the numerical order given.

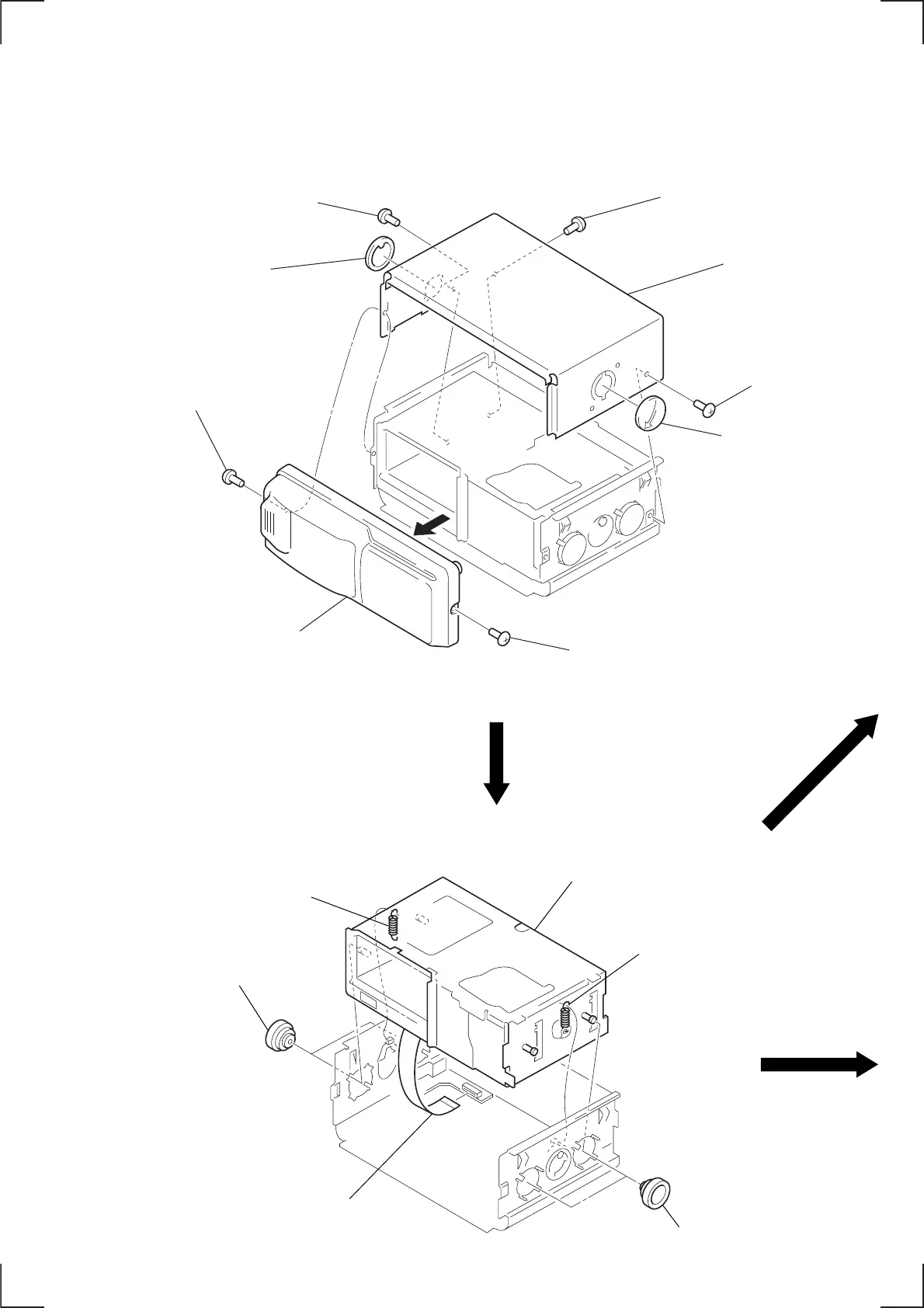

COVER (UPPER T), FRONT PANEL ASS’Y
SECTION 3
DISASSEMBLY
MECHANISM DECK (MG-250C-137)
1 screw
(PTT2.6
× 6)
1 screw
(PTT2.6
× 6)
2 cover (upper T)
1 screw
(PTT2.6
× 6)
1 screw
(PTT2.6
× 6)
1 screw
(PTT2.6
× 6)
3 lever (FLT)
3 lever (FLT)
4 front panel ass’y
2 tension spring (FL)
2 tension spring (FL)
1 two dampers (250)
1 two dampers (250)
3 jack flexible board
(CNJ901)
4 mechanism deck (MG-250C-137)
