– 55 –
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
R63 1-216-073-00 METAL CHIP 10K 5% 1/10W
R64 1-216-073-00 METAL CHIP 10K 5% 1/10W
R65 1-216-073-00 METAL CHIP 10K 5% 1/10W
< VARIABLE RESISTOR >
RV14 1-238-091-11 RES, ADJ, CERMET 22K
< SWITCH >
SW11 1-762-946-12 SWITCH, PUSH (1 KEY)
(CHUCKING END DETECT)
SW12 1-762-946-12 SWITCH, PUSH (1 KEY) (SAVE END DETECT)
************************************************************
* 1-664-104-11 SW BOARD
*********
< SWITCH >
SW1 1-572-688-11 SWITCH, PUSH (1 KEY) (LIMIT)
************************************************************
MISCELLANEOUS
**************
3 1-664-628-11 JACK FLEXIBLE BOARD
165 1-664-627-11 MAIN FLEXIBLE BOARD
210 1-664-626-11 OP FLEXIBLE BOARD
! 211 8-820-010-05 OPTICAL PICK-UP KSS-521A/J2RP
M101 A-3291-956-A MOTOR SUB ASSY, SPINDLE
M102 A-3291-955-A MOTOR SUB ASSY, SLED
M103 A-3301-123-A ELJ MOTOR ASSY (CHUCKING)
M104 A-3301-123-A ELJ MOTOR ASSY (ELEVATOR)
************************************************************
**************
HARDWARE LIST
**************
#1 7-627-852-07 SCREW, PRECISION +P 1.7X2.5
#2 7-685-792-09 SCREW +PTT 2.6X6 (S)
#3 7-685-781-09 SCREW +PTT 2X4 (S)
#4 7-624-104-04 STOP RING 2.0, TYPE-E
#5 7-627-554-07 SCREW, PRECISION +P 2X2.2
#6 7-628-253-00 SCREW +PS 2X4
#7 7-627-553-27 SCREW, PRECISION +P 2X2.5
#8 7-624-102-04 STOP RING 1.5, TYPE-E
#9 7-627-850-28 SCREW, PRECISION +P 1.4X3
#10 7-627-000-00 SCREW, PRECISION +P 1.7X2.2 TYPE3
#12 7-685-780-09 SCREW +PTT 2X3 (S)
************************************************************
ACCESSORIES & PACKING MATERIALS
********************************
3-865-033-11 MANUAL, INSTRUCTION (ENGLISH, SPANISH,
SWEDISH, PORTUGUESE) (AEP, UK)
3-865-033-21 MANUAL, INSTRUCTION (FRENCH, GERMAN,
DUTCH, ITALIAN) (AEP, UK)
3-865-033-31 MANUAL, INSTRUCTION (GERMAN, RUSSIAN)
(German)
A-3291-950-C MAGAZINE (250T) ASSY
************************************************************

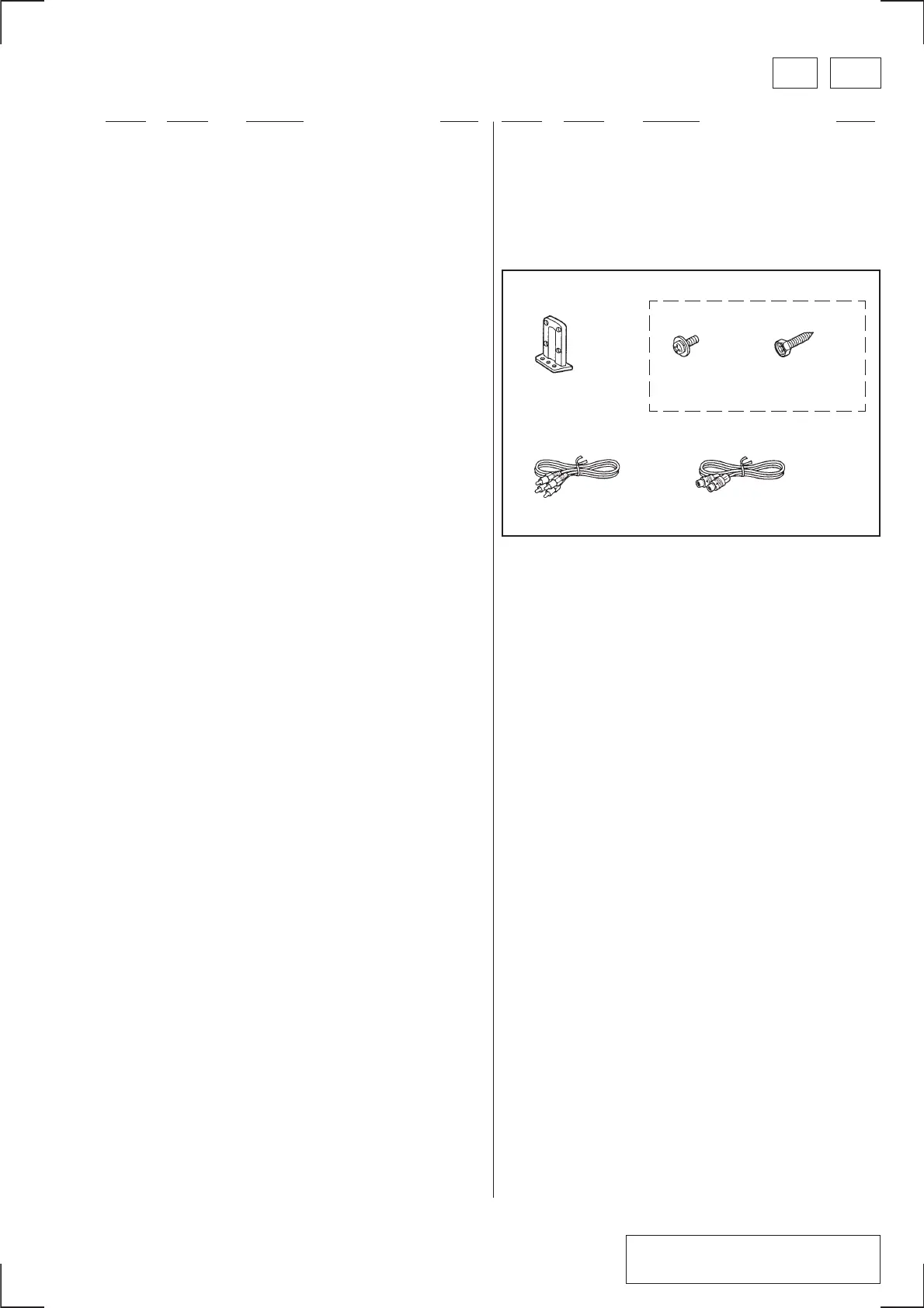

PARTS FOR INSTALLATION AND CONNECTIONS
**************************************
501 3-011-778-01 BRACKET (705T)
* 502 X-3369-824-1 SCREW ASSY
503 1-590-874-11 CORD, CONNECTION (RCA PIN CORD 5.5m)
504 1-590-519-81 CORD (WITH CONNECTOR)
(BUS CABLE 5.5m)
The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.
501
502
503
504
BRACKET (705T)
× 2
SCREW
(+PSW 4 × 10)
× 4
TAPPING SCREW
(DIA. 5 × 20)
× 4
RCA PIN CORD 5.5 m
× 1
BUS CABLE 5.5 m
× 1
RF SW
To Next Page
